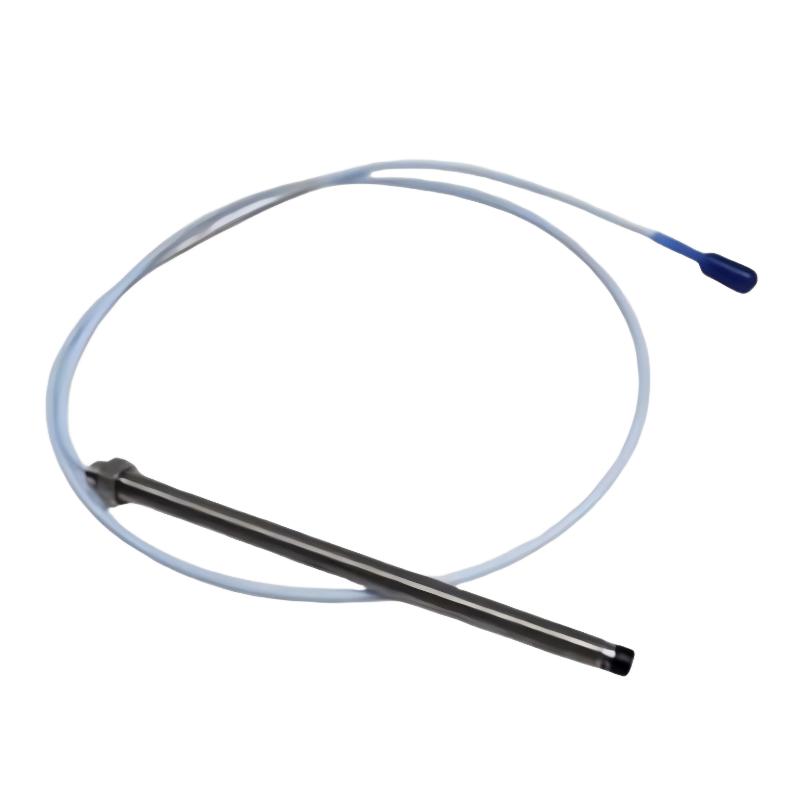

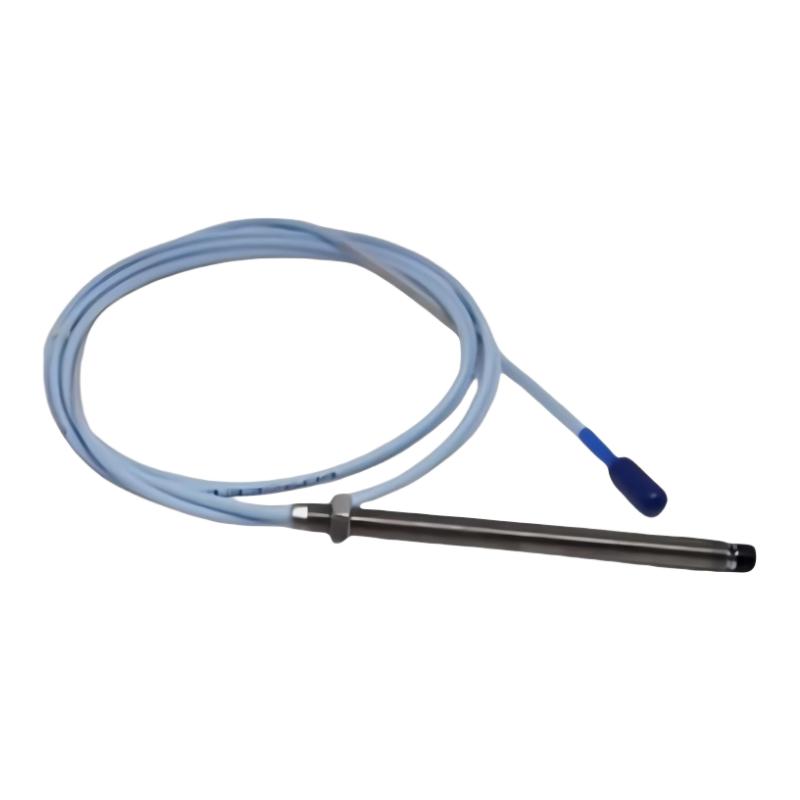

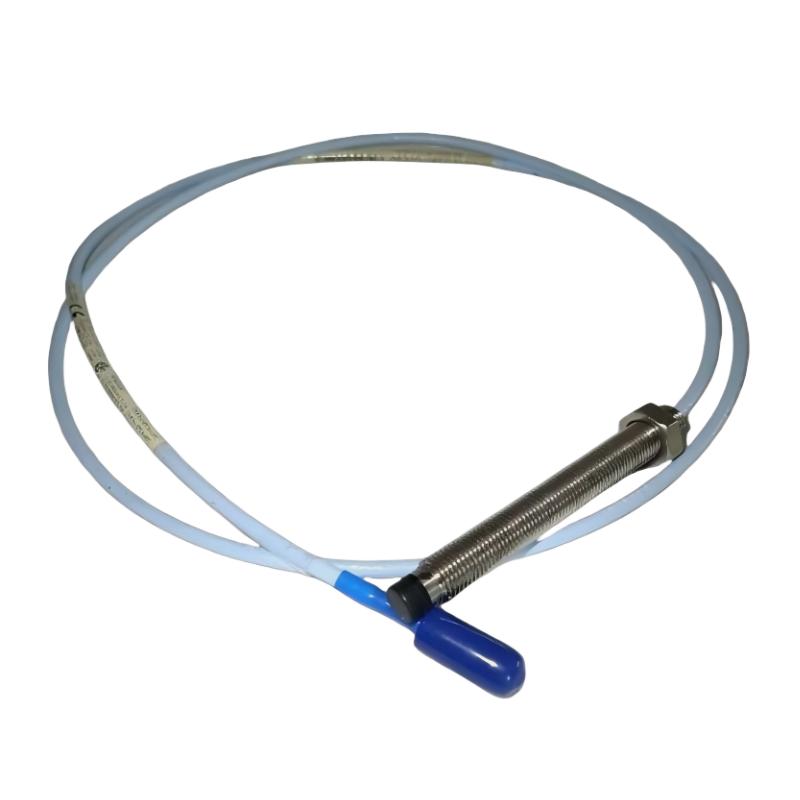

1. What is the core function of the 3300 XL 8 mm probe?
The 3300 XL 8 mm probe is designed for high-precision, non-contact measurement of shaft displacement, vibration, and position in rotating machinery. It continuously monitors the relative distance between the probe tip and the conductive shaft surface. These measurements are converted into electrical signals that provide real-time insight into machine condition, supporting fault detection such as imbalance, misalignment, and bearing degradation.

2. Where is this probe commonly used?
This probe is widely used in critical rotating equipment such as steam turbines, compressors, pumps, fans, and large industrial motors. It is commonly deployed in power generation, oil and gas, petrochemical, and heavy industrial sectors where continuous condition monitoring is essential for operational safety and equipment reliability.

3. How does eddy current sensing technology work in this probe?
The probe generates a high-frequency electromagnetic field at its tip. When this field interacts with a conductive target such as a rotating shaft, eddy currents are induced on the surface. Changes in the distance between the probe and the shaft alter the strength of these eddy currents, which results in corresponding changes in the output signal. The monitoring system interprets these changes to calculate precise displacement and vibration values.

4. What should be checked if the signal becomes unstable or noisy?
If unstable readings occur, first verify that the probe is securely mounted and that the probe-to-shaft gap is within specification. Inspect the cable and connectors for looseness, corrosion, or physical damage. Ensure proper grounding and shielding integrity. It is also important to check the shaft surface condition, as oil films, scratches, or irregular motion can affect measurement stability. External electromagnetic interference sources should also be evaluated.

5. What are the key installation requirements?
Correct installation requires precise positioning of the probe at the calibrated gap distance from the shaft surface. The probe must be rigidly fixed to avoid movement during operation. Cable routing should avoid high-voltage lines and strong electromagnetic sources. Proper shielding and grounding must be maintained to minimize noise and ensure stable signal transmission.

6. What are common causes of measurement errors?
Measurement errors may be caused by incorrect gap settings, mechanical loosening, contaminated or damaged shaft surfaces, electromagnetic interference, or poor cable shielding. Shaft eccentricity or abnormal vibration behavior can also introduce inaccuracies. Environmental variations such as temperature changes may further contribute to signal drift.

7. Does the probe require periodic maintenance?
Yes, regular inspection is recommended. Maintenance includes checking mechanical mounting stability, verifying cable and connector condition, ensuring proper grounding, and cleaning any oil or debris around the probe area. In harsh or high-vibration environments, inspection intervals should be shortened to ensure long-term measurement reliability.

8. Is recalibration required after replacing the probe?
Yes, recalibration is required after replacing the probe, even with the same model. The system must re-establish reference gap and zero-point settings to ensure measurement consistency. A full functional verification test should be performed to confirm stable signal output and accurate vibration and displacement readings before returning the system to operation.
