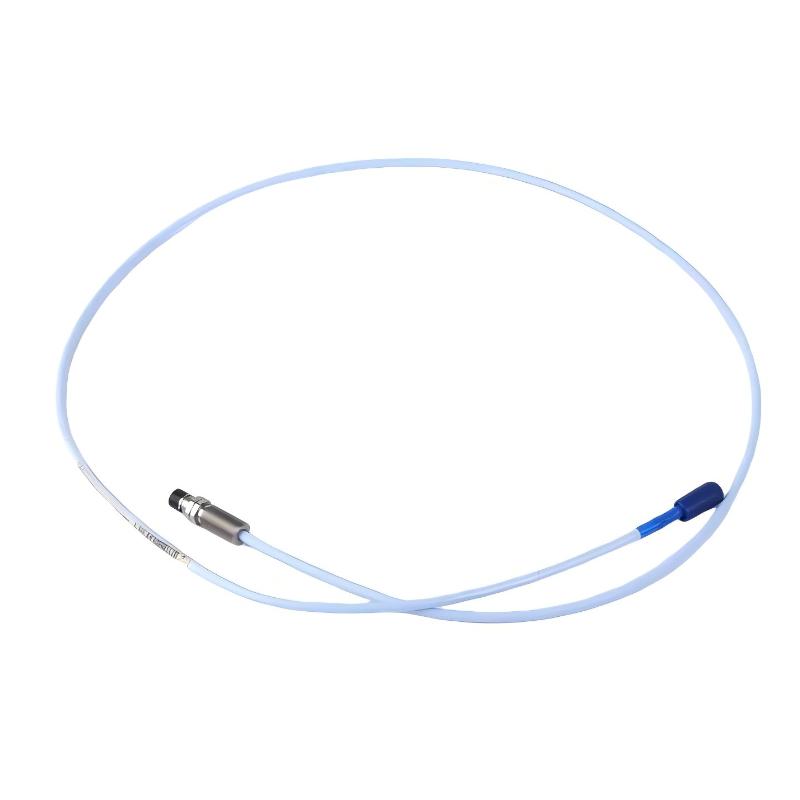

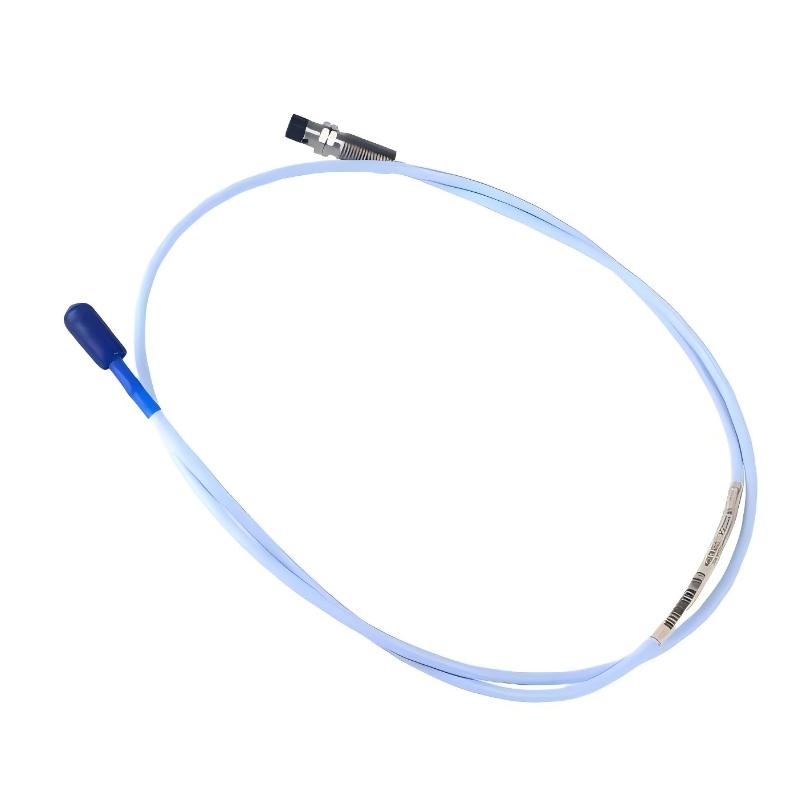

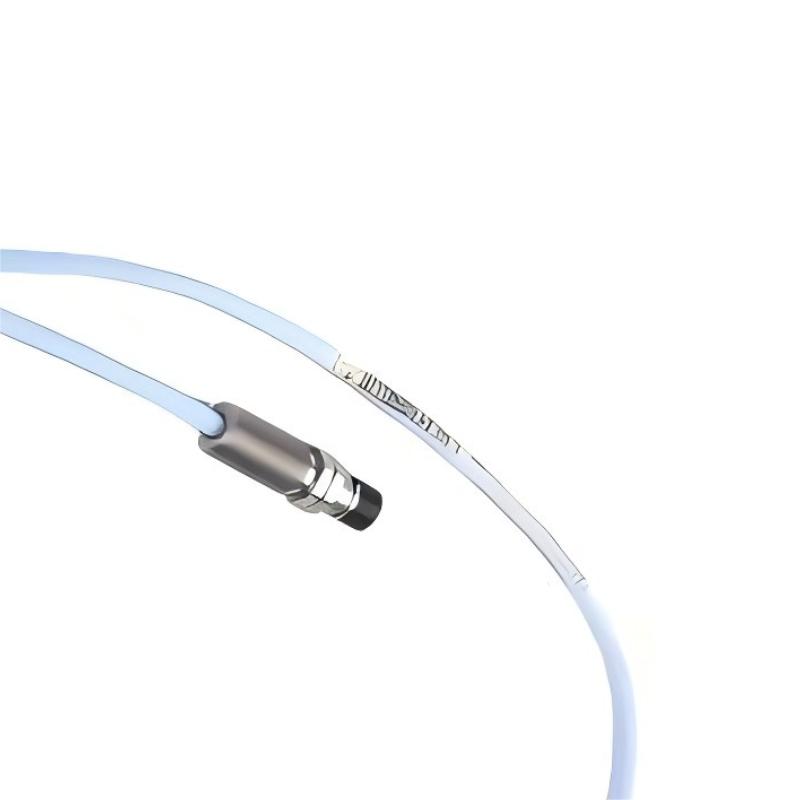

1. What is the main function of the Bently Nevada 173688-01-20-12-CN 3300 XL 8 mm Proximitor Probe?

The Bently Nevada 173688-01-20-12-CN 3300 XL 8 mm Proximitor Probe is designed for non-contact measurement of shaft vibration and position in critical rotating machinery. It uses eddy current sensing technology to detect the distance between the probe tip and the rotating shaft surface without physical contact. The measurement signal is transmitted to machinery protection and condition monitoring systems for equipment status evaluation. This probe is commonly installed on turbines, compressors, generators, and other important rotating equipment where accurate vibration and displacement monitoring are required. By continuously providing shaft movement information, it helps identify abnormal operating conditions such as excessive vibration, shaft position changes, or mechanical deterioration before serious equipment failures occur.

2. What applications are suitable for the 173688-01-20-12-CN proximity probe?

The 173688-01-20-12-CN proximity probe is mainly used in industrial machinery protection and condition monitoring applications. It is commonly installed on steam turbines, gas turbines, compressors, pumps, motors, generators, and other rotating equipment that requires continuous shaft monitoring. The probe provides important vibration and displacement data for predictive maintenance and equipment protection systems. It is especially suitable for critical machinery where early detection of mechanical problems is necessary to prevent unexpected shutdowns and reduce maintenance costs. The probe is normally combined with a compatible Bently Nevada Proximitor Sensor and monitoring module to form a complete vibration monitoring solution.

3. How does the 173688-01-20-12-CN measure shaft vibration and displacement?

The 173688-01-20-12-CN uses eddy current measurement technology to detect changes in the distance between the probe tip and the conductive shaft surface. When the shaft moves due to vibration or positional changes, the electromagnetic field generated by the probe changes accordingly. The system converts these variations into electrical signals that represent shaft displacement and vibration conditions. Since the measurement is performed without physical contact, there is no mechanical wear between the probe and the rotating shaft. Proper installation adjustment is important because incorrect positioning may affect measurement accuracy and monitoring performance.

4. What should be checked if the vibration signal from the 173688-01-20-12-CN is unstable?

If the vibration signal becomes unstable, troubleshooting should begin by checking the complete measurement system, including the probe installation, extension cable, Proximitor Sensor, and monitoring module. First, verify that the probe installation condition is correct and that the connection points are secure. Loose connections, damaged cables, poor grounding, or electromagnetic interference can cause unstable signals. The monitoring system configuration should also be checked to confirm that parameters match the installed probe specifications. In addition, technicians should compare the vibration data with actual machine operating conditions to determine whether the problem is caused by the sensor system or the equipment itself.

5. How should the 173688-01-20-12-CN proximity probe be installed correctly?

Correct installation of the 173688-01-20-12-CN is essential for reliable vibration and position measurement. Before installation, the mounting location should be inspected to ensure that the probe can accurately detect shaft movement. The probe should be installed according to the requirements of the 3300 XL monitoring system, with proper adjustment between the probe tip and the shaft surface. Cable connections should be securely installed, and cable routing should avoid excessive heat, mechanical stress, and strong electromagnetic interference sources. After installation, the monitoring system should be checked to confirm stable signal output and accurate vibration measurement before the equipment enters normal operation.

6. What are the common causes of incorrect readings from the 173688-01-20-12-CN?

Incorrect readings from the 173688-01-20-12-CN may result from improper installation, incorrect adjustment, cable damage, electrical interference, or problems with the connected monitoring system. If the probe installation position is incorrect, the measured signal may not accurately represent actual shaft movement. Damaged cables or poor connector contact may cause signal instability or signal loss. Mechanical problems such as shaft surface damage, excessive runout, or alignment issues may also affect measurement results. When abnormal readings occur, technicians should inspect the complete signal path and compare sensor data with actual equipment conditions to determine the root cause.

7. What maintenance is recommended for the Bently Nevada 173688-01-20-12-CN probe?

Routine maintenance of the 173688-01-20-12-CN should include checking probe installation status, cable condition, connector reliability, and monitoring signal stability. During scheduled equipment inspections, technicians should verify that the probe remains securely installed and that cables are free from damage, wear, or environmental deterioration. Historical vibration data should also be reviewed regularly to identify changes in equipment operating conditions. Preventive maintenance helps maintain accurate measurement performance, reduces unexpected monitoring failures, and improves the reliability of machinery protection systems.

8. How can troubleshooting be performed when the 173688-01-20-12-CN has no output signal?

When the 173688-01-20-12-CN provides no output signal, troubleshooting should be performed systematically. First, check all connections between the probe, extension cable, Proximitor Sensor, and monitoring system to confirm proper installation. Next, inspect cables and connectors for damage, loose connections, or contamination. Verify that the Proximitor Sensor power supply and monitoring channel configuration are correct. If the electrical system is normal, check the mechanical installation condition and probe positioning. Testing each part of the signal path separately helps determine whether the issue is caused by the probe, cable, sensor, or monitoring equipment. A structured troubleshooting process can quickly restore reliable vibration monitoring operation and reduce equipment downtime.
