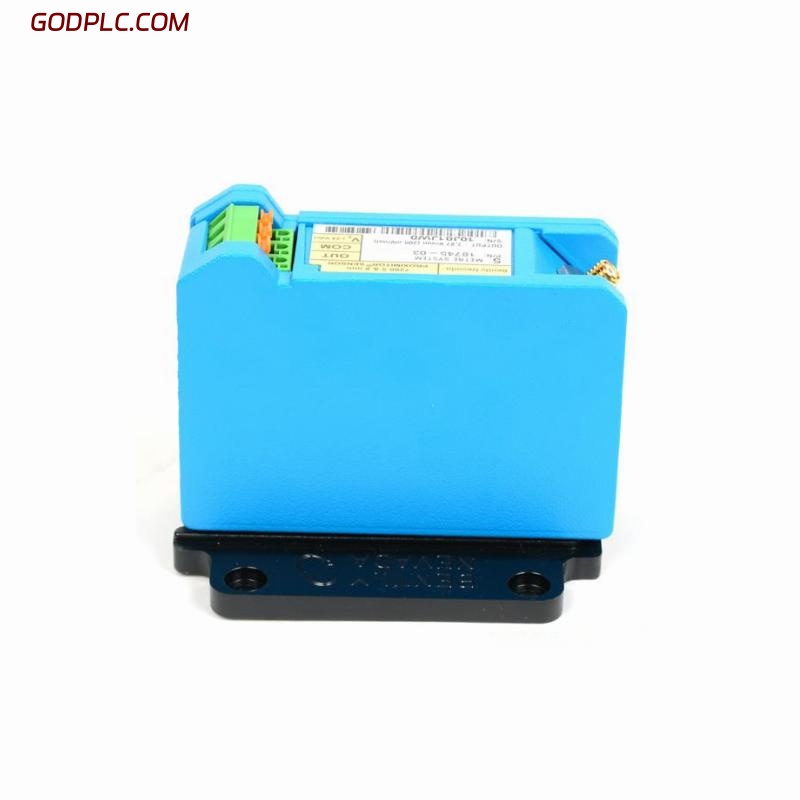

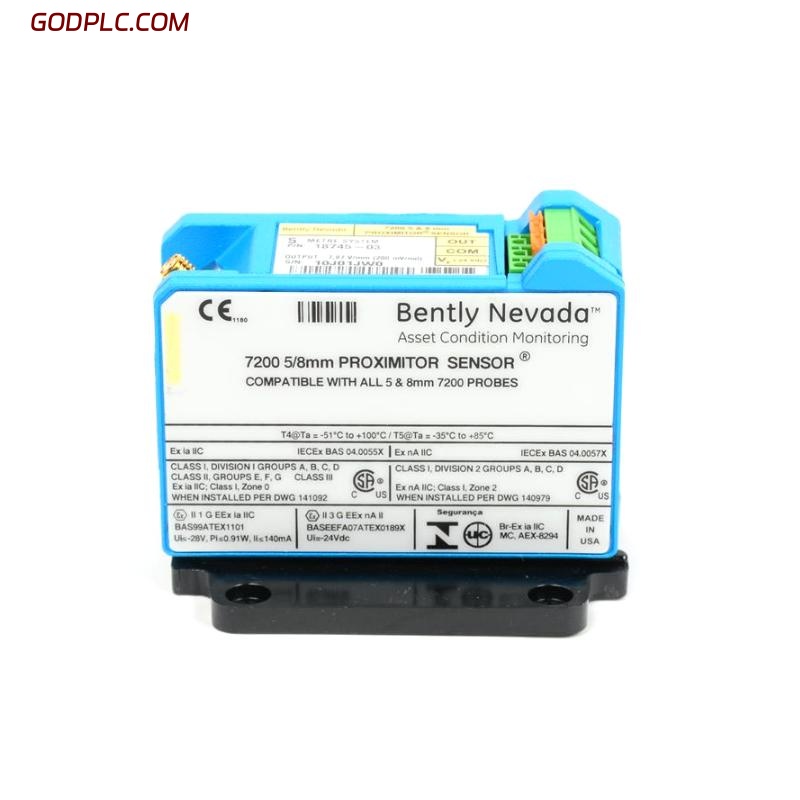

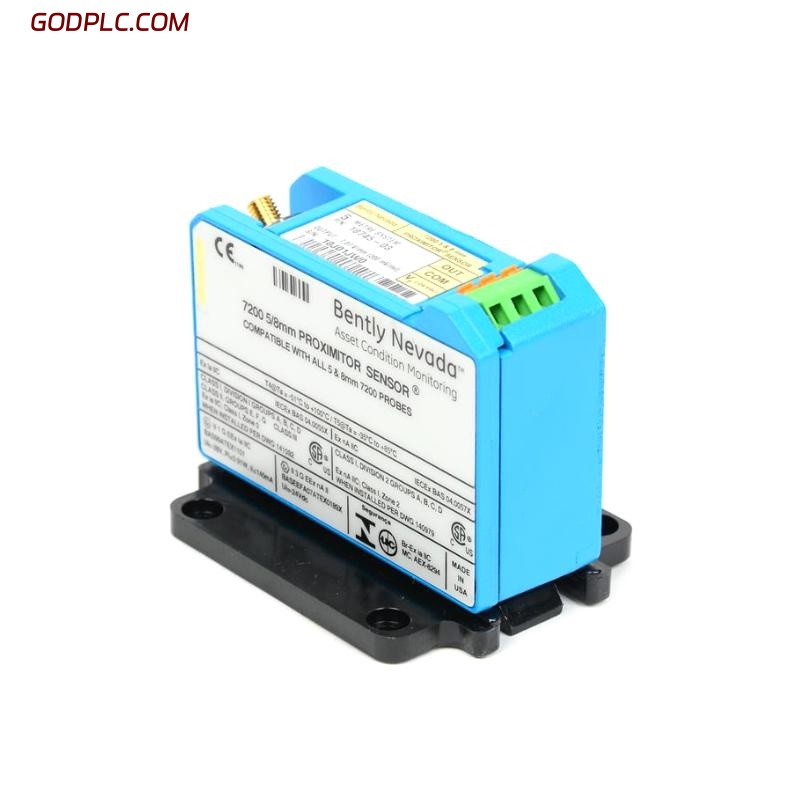

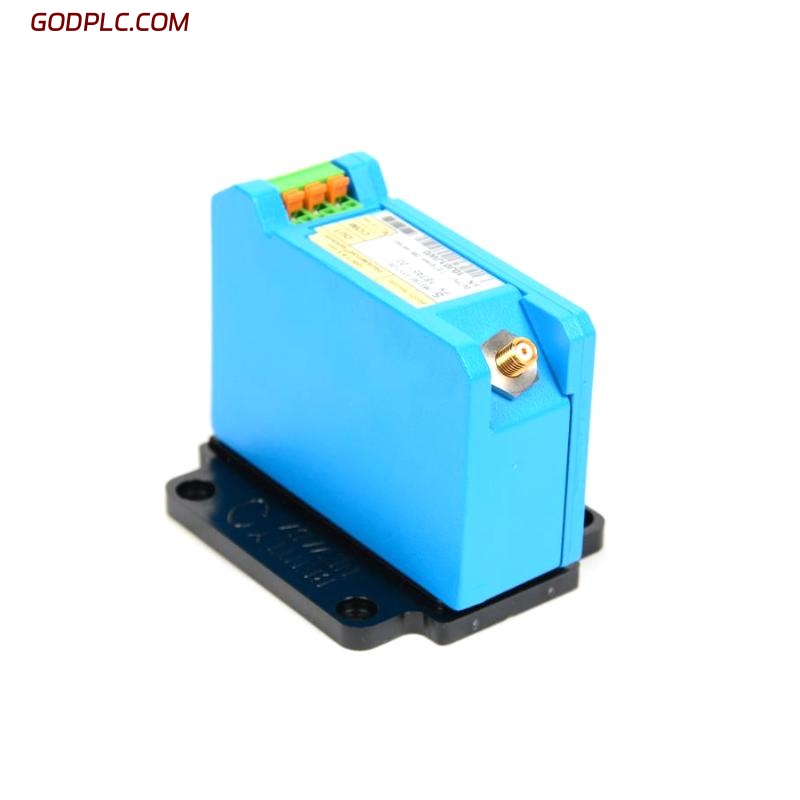

Bently Nevada 18745-03 Proximitor Sensor Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Bently Nevada 18745-03 is a Proximitor Sensor Module used in non-contact vibration and position measurement systems for rotating machinery.
It is part of the Bently Nevada 7200 Series, designed to work with compatible proximity probes to measure the relative displacement between a machine shaft and its bearing housing.
This module converts the gap between the probe tip and the target surface into a proportional voltage signal, providing both static (position) and dynamic (vibration) measurements.
It is widely used in turbines, compressors, motors, and pumps where accurate shaft position and vibration monitoring are critical.
Key Features
-
Designed for non-contact displacement measurement using the eddy current principle.
-
Compatible with 5 mm and 8 mm proximity probes.
-
Provides a linear voltage output proportional to shaft-to-probe distance.
-
Suitable for both static and dynamic signal measurement.
-
Rugged design for continuous operation in harsh industrial environments.
-
Compatible with various Bently Nevada monitoring systems, including 3300 and 3500 series.
-
Conforms to API 670 machinery protection standards.
Technical Specifications
| Parameter | Specification | Description / Notes |
|---|---|---|
| Model Number | 18745-03 | 7200 Series Proximitor Module |
| Manufacturer | Bently Nevada | GE Measurement & Control |
| Measurement Principle | Eddy current displacement | Non-contact proximity measurement |
| Compatible Probe Types | 5 mm and 8 mm probes | Configurable by installation |
| Measurement Range | 0–80 mils (≈2.0 mm) linear range | Depends on probe system |
| Output Signal | Voltage proportional to gap | Typically –10 VDC to –2 VDC |
| Frequency Response | DC to 10 kHz | Suitable for dynamic vibration monitoring |
| Power Supply Voltage | 24 VDC nominal | Standard system supply |
| System Compatibility | 7200, 3300, 9000 Series | Bently Nevada monitoring racks |
| Operating Temperature Range | –45 °C to +65 °C | Continuous operation |
| Storage Temperature Range | –55 °C to +85 °C | Non-operating condition |
| Relative Humidity | 5–95% non-condensing | Industrial environment |
| Isolation | Electrical isolation between input and output | Reduces interference |
| Dimensions (H × W × D) | Approx. 90 × 35 × 110 mm (estimated) | Typical compact module size |
| Weight | Approx. 0.45 kg (1.0 lb) | Typical unit weight |
| Mounting Type | Panel or rack mounting | Standard Proximitor enclosure |
| Signal Cable Length | Configurable up to 9 meters | Depends on probe type and system |
| Compliance Standards | API 670, CE, CSA | Machinery protection standards |
Bently Nevada 18745-03 Proximitor Sensor Module is in stock. Please contact us for a quick quote and competitive pricing.
