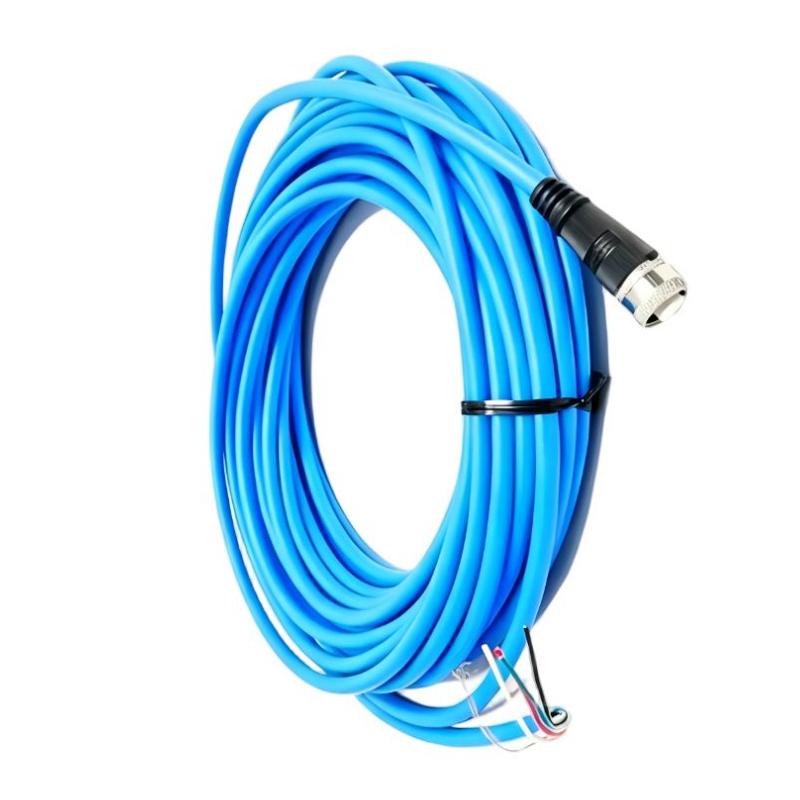

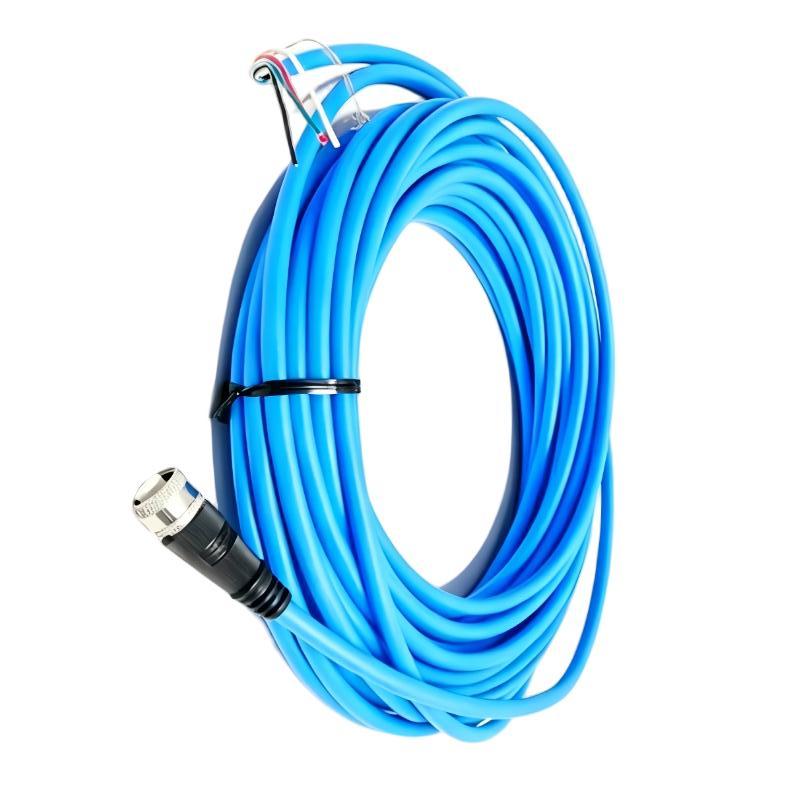

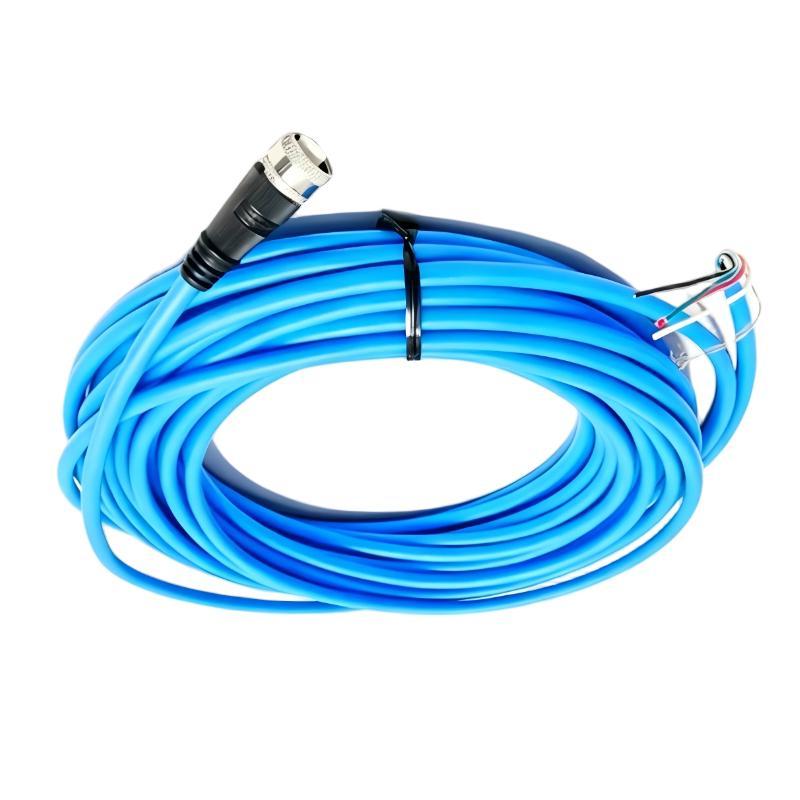

Q1: What is the primary function of the Bently Nevada 200151-40-03-00 Accelerometer Interface Standard Cable?

A: The primary function of this cable is to provide a reliable and stable electrical connection between an accelerometer and a Bently Nevada vibration monitoring system. It ensures that low-level acceleration signals generated by the sensor are transmitted accurately to the monitoring module without distortion or significant loss. This accurate signal transfer is essential for machinery condition monitoring, vibration analysis, and predictive maintenance applications in industrial environments.

Q2: Why is cable quality critical for accelerometer signal transmission?

A: Accelerometer signals are typically low amplitude and highly sensitive to electrical noise and interference. Poor-quality cables can introduce signal degradation, attenuation, or unwanted noise, which directly affects the accuracy of vibration analysis. A high-quality interface cable ensures stable impedance, strong shielding effectiveness, and consistent signal integrity, which are essential for reliable machinery diagnostics.

Q3: What types of equipment commonly use this cable?

A: This cable is widely used in rotating machinery such as steam turbines, gas turbines, centrifugal compressors, pumps, fans, and large electric motors. These machines are typically found in industries like power generation, oil and gas, petrochemical processing, and heavy manufacturing, where continuous vibration monitoring is critical for safe and efficient operation.

Q4: How does shielding improve performance in industrial environments?

A: Shielding protects the signal from external electromagnetic and radio frequency interference generated by nearby electrical equipment such as variable frequency drives and high-power motors. The multi-layer shielding design reduces noise coupling into the signal path, ensuring that the vibration data remains clean and accurate even in harsh industrial environments with high electrical noise.

Q5: What role does this cable play in vibration monitoring systems?

A: In vibration monitoring systems, this cable acts as the signal transmission link between the accelerometer and the monitoring hardware. It carries raw vibration data from the field sensor to the analysis system, where it is processed for frequency analysis, trend monitoring, and fault detection. Without a stable cable, the entire measurement chain can be compromised.

Q6: How does this cable affect measurement accuracy?

A: Measurement accuracy is directly dependent on signal integrity. If the cable introduces noise, poor grounding, or signal attenuation, the resulting vibration data may not accurately reflect machine condition. This cable is designed to maintain stable transmission characteristics, ensuring that high-frequency vibration content and transient signals are preserved for accurate diagnostics.

Q7: What installation practices should be followed?

A: Proper installation is essential for optimal performance. The cable should be routed away from high-voltage power lines to minimize electromagnetic interference. Excessive bending, pulling, or mechanical stress should be avoided to protect internal conductors and shielding layers. Connectors must be securely fastened, and proper grounding should be maintained to ensure maximum noise immunity.

Q8: How can long-term reliability of the cable be ensured?

A: Long-term reliability is maintained through correct installation, proper routing, and periodic inspection. Regular checks should be performed to ensure connectors remain tight, insulation is not damaged, and shielding integrity is intact. Maintaining good grounding practices and avoiding harsh mechanical stress or environmental exposure will help ensure consistent performance over time.
