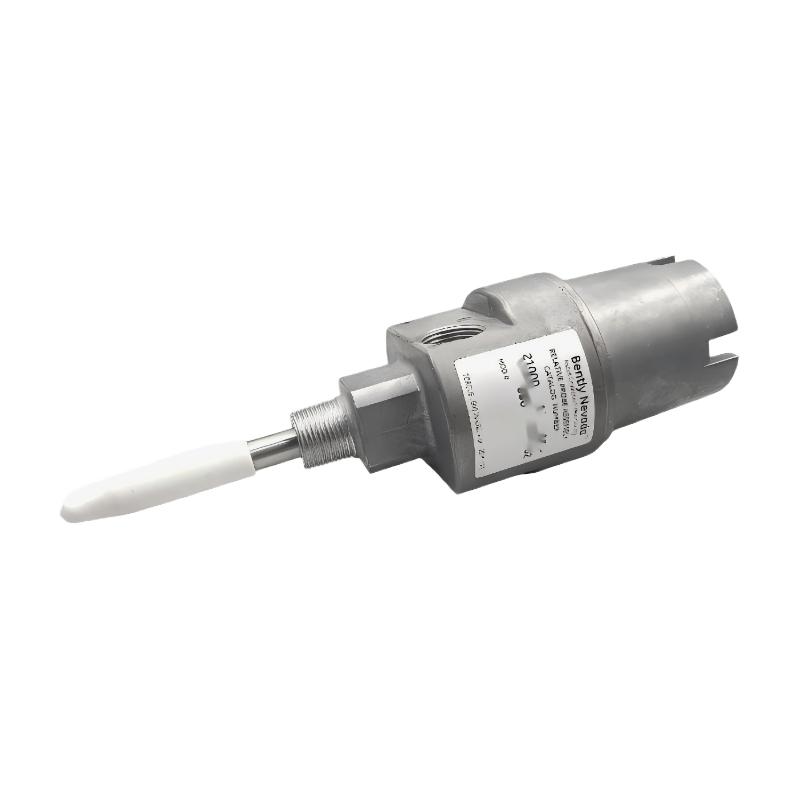

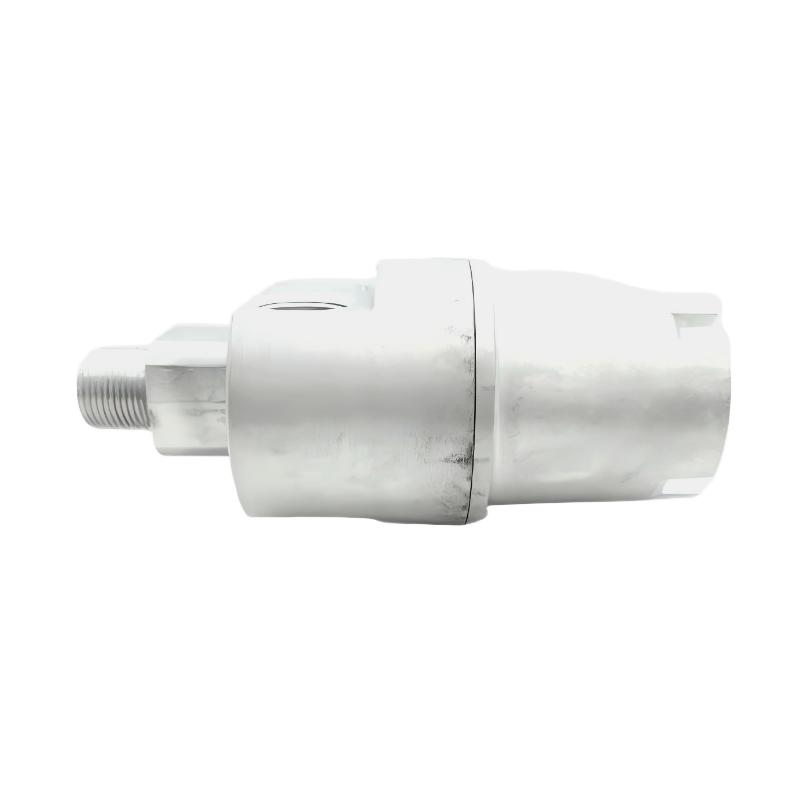

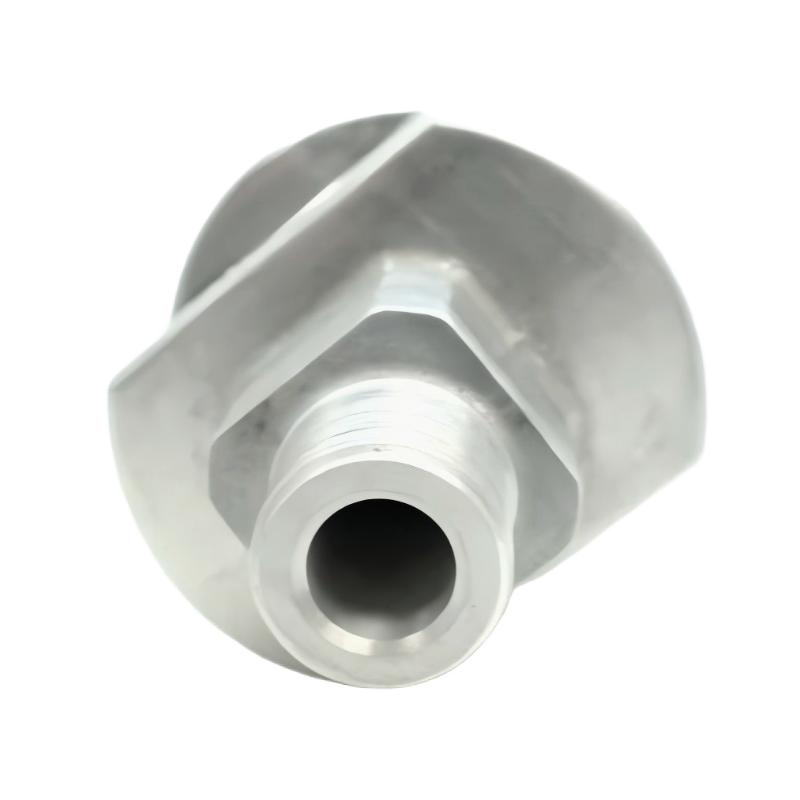

1. What is the main purpose of the Bently Nevada 3300 XL Proximity Probe Housing Assembly?
The primary purpose of this housing assembly is to provide a mechanically stable and environmentally protected mounting platform for proximity probes used in rotating machinery monitoring systems. It ensures that the probe remains in a precise and repeatable position relative to the shaft surface, which is essential for accurate vibration and displacement measurement. Without this stable mounting structure, even small mechanical deviations could significantly affect signal quality and reduce the reliability of condition monitoring data.

2. Where is this housing assembly typically used?
This component is typically installed on critical rotating equipment such as steam turbines, gas turbines, compressors, centrifugal pumps, and large industrial fans. These machines operate under continuous load and harsh environmental conditions, making reliable condition monitoring essential. The housing assembly ensures that the proximity probe maintains correct alignment in these demanding applications, enabling continuous monitoring of shaft motion, vibration levels, and machine health trends.

3. What role does the housing play in the monitoring system?
In a vibration monitoring system, the housing plays a structural and functional role. Structurally, it secures the probe in a fixed mechanical position relative to the rotating shaft. Functionally, it ensures that the probe gap remains stable, which directly affects the accuracy of eddy current signal conversion. Any instability in the housing could lead to signal drift, incorrect amplitude readings, or unstable phase measurements, which may compromise diagnostic accuracy.

4. Why is a dedicated housing necessary for proximity probes?
Proximity probes are highly sensitive measurement devices that require extremely stable mounting conditions. Industrial environments introduce challenges such as vibration, thermal expansion, mechanical stress, and contamination from oil or dust. A dedicated housing is designed to counter these factors by providing rigid mechanical support and environmental isolation. This ensures that the probe maintains consistent performance over long operating periods, even under severe industrial conditions.

5. What could happen if the housing assembly is damaged or improperly installed?
If the housing assembly is damaged, loose, or incorrectly installed, it can lead to probe misalignment or instability. This directly affects the accuracy of vibration and displacement readings. In more severe cases, it may result in intermittent signal loss, false alarms in the protection system, or failure to detect early-stage mechanical faults. Over time, this can reduce the effectiveness of predictive maintenance programs and increase the risk of unexpected equipment downtime.

6. Is this housing compatible with the 3300 XL system?
Yes, this housing assembly is specifically engineered for compatibility with the Bently Nevada 3300 XL proximity probe system. It is designed to match the mechanical and functional requirements of the 3300 XL platform, ensuring proper installation geometry, signal stability, and system-level integration. This compatibility is critical for maintaining consistent measurement performance across the monitoring system.

7. What are the key considerations during installation?
During installation, it is essential to ensure precise alignment between the probe and the target shaft surface. The housing must be securely fastened to eliminate any mechanical looseness or vibration-induced movement. Proper gap setting is also critical, as incorrect spacing can lead to distorted signal output. Additionally, care must be taken to avoid contamination during installation, as foreign particles can affect both mechanical stability and measurement accuracy.

8. How does this housing contribute to long-term monitoring stability?
Long-term stability is achieved through a combination of rigid mechanical construction, high-strength materials, and vibration-resistant design. The housing maintains consistent probe positioning even under continuous operation and fluctuating environmental conditions. This stability ensures that measurement drift is minimized over time, allowing the monitoring system to deliver reliable trend data for predictive maintenance, early fault detection, and overall machinery protection.
