1. What is the primary function of this proximity probe?

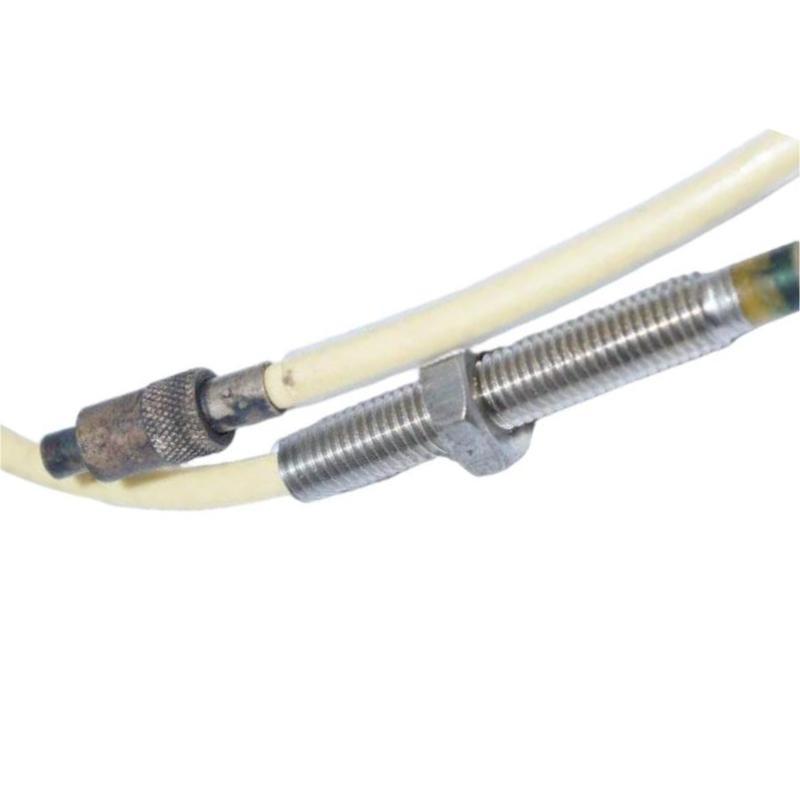

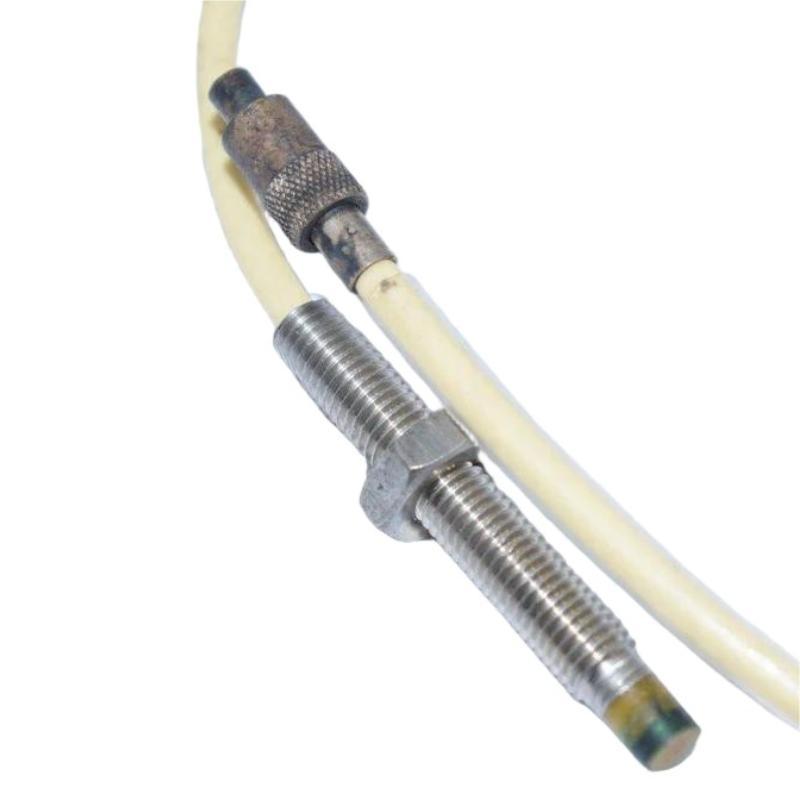

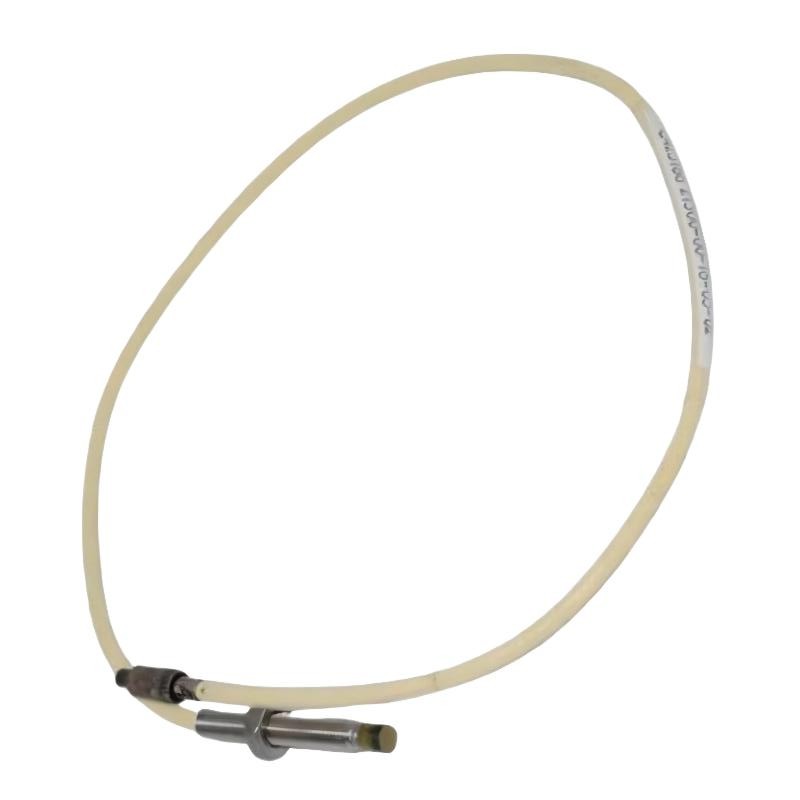

This proximity probe is designed for continuous monitoring of shaft vibration and axial displacement in rotating machinery. It provides non-contact measurement of the distance between the probe tip and a conductive target surface, allowing accurate detection of mechanical movement. This data is essential for machinery protection systems and predictive maintenance programs in industrial environments.

2. What types of equipment typically use this probe?

The probe is commonly installed on turbines, compressors, pumps, motors, and gearboxes. These machines operate under high rotational speeds and require precise condition monitoring to detect early signs of imbalance, misalignment, looseness, or wear. The probe enables real-time monitoring of mechanical behavior to improve operational reliability.

3. How does the eddy current measurement principle work?

The probe generates a high-frequency electromagnetic field at its sensing tip. When placed near a conductive metal surface, eddy currents are induced in the target material. These currents alter the electrical impedance of the probe coil, and this variation is converted into a voltage signal proportional to the distance between the probe and the shaft surface. This allows precise, non-contact displacement measurement.

4. What factors can affect measurement accuracy?

Measurement accuracy can be influenced by target material conductivity, surface condition, temperature variations, and mechanical stability of the mounting system. Electrical noise and poor grounding can also introduce signal instability. Proper installation, calibration, and cable management are essential to ensure consistent and accurate measurement results.

5. What are the key installation requirements?

The probe must be installed with a stable and rigid mounting structure to prevent vibration-induced errors. The gap between the probe tip and the target surface must be carefully set according to system specifications. Cable routing should avoid high-power electrical lines to reduce electromagnetic interference. Proper alignment is essential for accurate displacement measurement.

6. Is this probe suitable for continuous monitoring systems?

Yes, this probe is specifically designed for continuous operation in industrial condition monitoring systems. It is widely used in 24/7 monitoring applications where real-time vibration and position data are required to ensure machinery safety and reliability. Its non-contact design supports long-term stable operation with minimal wear.

7. How is system calibration performed?

The probe is typically factory calibrated and designed to operate with compatible monitoring systems. During system setup, it is matched with signal conditioning modules to ensure correct voltage-to-displacement conversion. Proper calibration ensures that measured signals accurately represent physical shaft movement for reliable condition analysis.

8. What maintenance is required for this probe?

Maintenance requirements are minimal due to its non-contact measurement design. Periodic inspection is recommended to ensure secure mounting, intact cabling, and clean installation conditions. Any signs of mechanical looseness, cable wear, or contamination should be addressed promptly to maintain measurement reliability and system stability.
