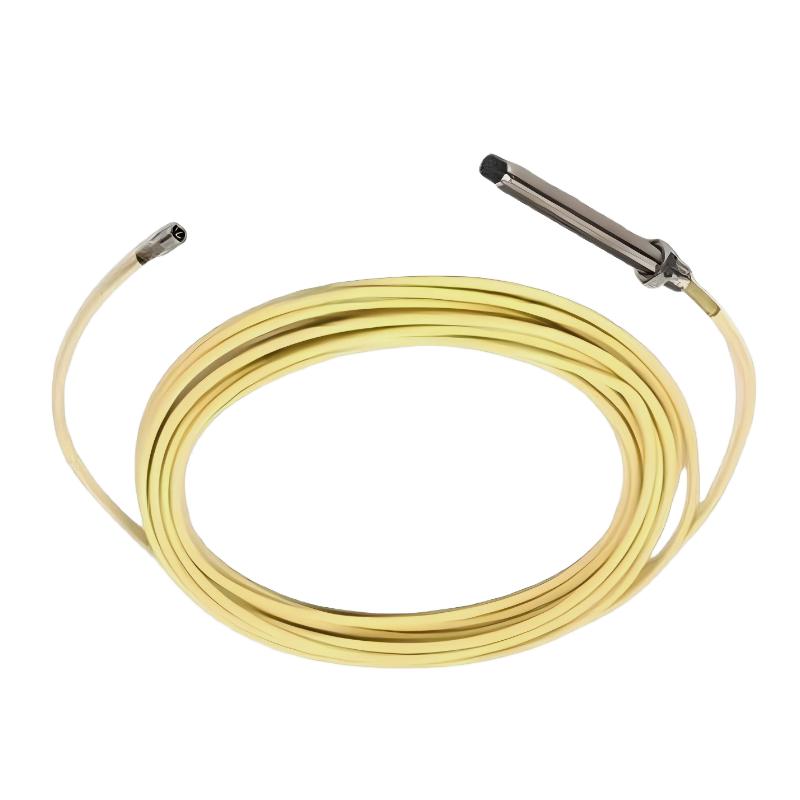

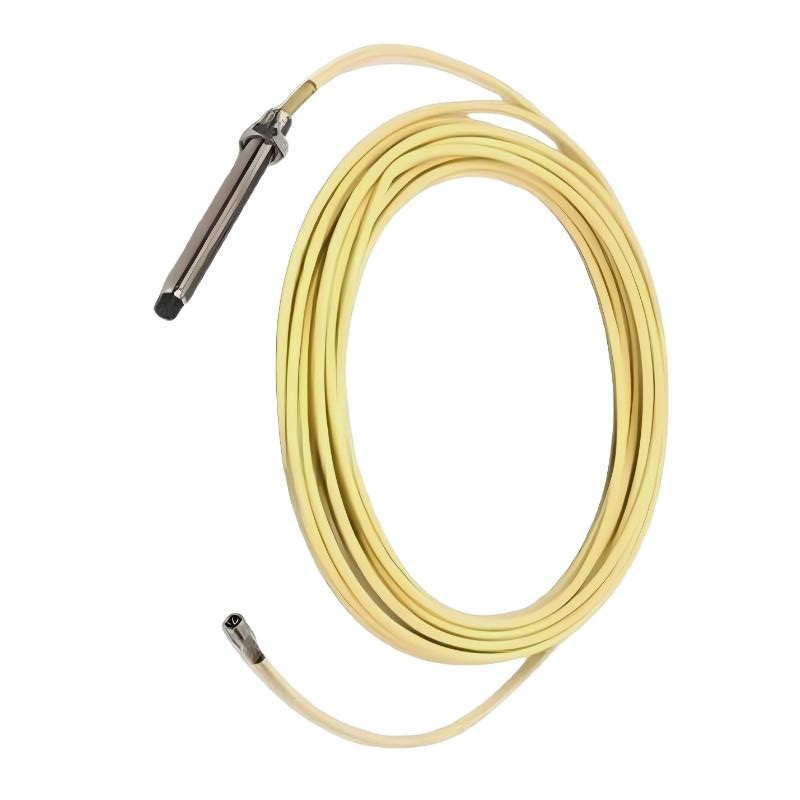

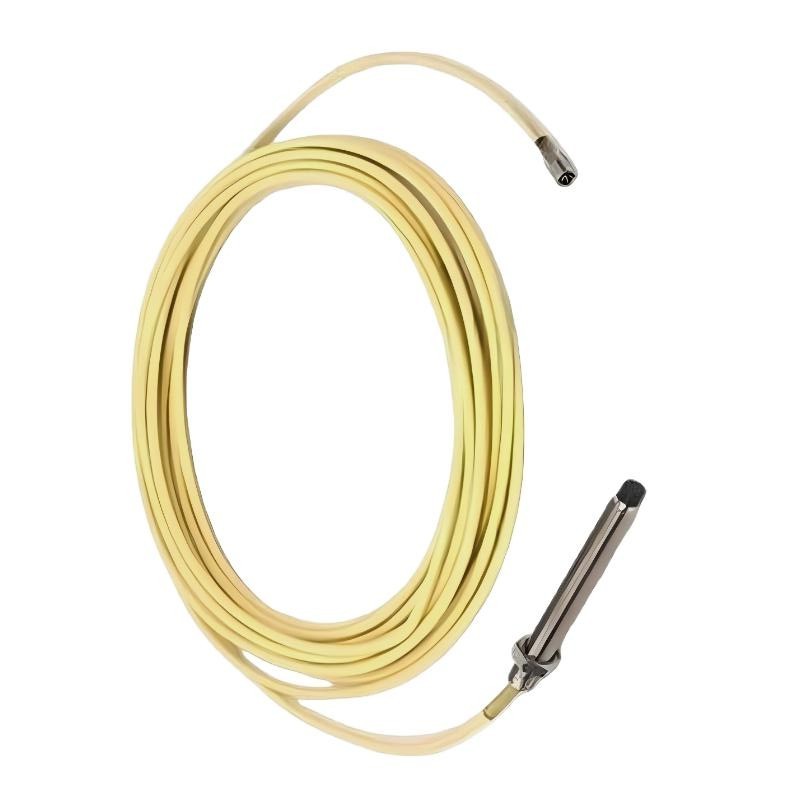

1. What is the main function of the Bently Nevada 21504-00-12-05-02 probe?

This probe is designed for continuous condition monitoring of rotating machinery using non-contact measurement technology. Its primary function is to measure shaft vibration, radial displacement, and axial position changes in real time. By maintaining a precise electromagnetic field near the shaft surface, it converts microscopic changes in distance into a stable electrical signal. This signal is then processed by a monitoring system to evaluate machine health, detect early-stage mechanical issues such as imbalance, misalignment, or bearing wear, and support protection logic for critical rotating equipment in industrial plants.

2. How does the eddy current measurement principle work in this probe?

The probe operates based on the eddy current principle, where a high-frequency electromagnetic field is generated at the probe tip. When a conductive target such as a steel shaft enters this field, circulating eddy currents are induced on the surface of the metal. These currents alter the impedance of the probe coil in a predictable way. The system measures these changes and converts them into an accurate voltage signal proportional to the distance between the probe and the target. This allows extremely precise, non-contact measurement even in harsh mechanical environments.

3. What types of machinery typically use this probe?

This probe is widely used in critical rotating machinery where continuous vibration monitoring is essential for safe operation. Typical applications include steam turbines, gas turbines, centrifugal compressors, large industrial pumps, electric motors, and gearboxes. In these systems, even small changes in shaft movement can indicate early mechanical degradation. The probe provides continuous feedback that helps maintenance teams detect faults early, plan predictive maintenance, and avoid unplanned shutdowns or catastrophic equipment failure.

4. What kind of signal does the probe output and how is it used?

The probe generates a continuous analog voltage signal that corresponds directly to the distance between the probe tip and the shaft surface. This signal is not used directly for control but is interpreted by a dedicated Bently Nevada monitoring system. The system converts it into engineering units such as vibration amplitude, shaft displacement, or axial position. These parameters are then used for trending analysis, alarm generation, and machine protection logic, ensuring that operators can make informed decisions based on real-time mechanical behavior.

5. Is the probe suitable for harsh industrial environments?

Yes, the probe is specifically designed for demanding industrial conditions. It is built to withstand high levels of vibration, temperature variations, and electromagnetic interference commonly found in power generation and heavy industry environments. The shielding and rugged construction ensure stable signal transmission even when installed near high-voltage equipment or large rotating machinery. This robustness makes it suitable for continuous long-term operation in critical monitoring systems where reliability is essential.

6. Does this probe require calibration after installation?

Yes, calibration is an essential step after installation. It ensures that the electrical output accurately corresponds to the physical gap between the probe and the shaft surface. During calibration, the system establishes a baseline reference for zero position and sensitivity scaling. Without proper calibration, measurement accuracy can be affected, leading to incorrect vibration or displacement readings. Proper calibration ensures that the monitoring system reflects true mechanical conditions and supports reliable protection decisions.

7. What systems is this probe compatible with?

This probe is designed to work with the Bently Nevada 7200 series monitoring systems. It integrates with matching proximitor modules and monitoring racks to form a complete vibration measurement chain. When properly installed, the probe works seamlessly with the system to provide continuous real-time data for machine protection and condition monitoring applications. Compatibility within the same system family ensures signal stability, accuracy, and reliable long-term performance.

8. What maintenance practices are recommended for this probe?

Routine maintenance focuses on ensuring mechanical stability, signal integrity, and clean operating conditions. Technicians should regularly inspect the probe mounting position to confirm that it has not shifted due to vibration or mechanical stress. Cable routing and shielding should be checked to prevent signal degradation caused by damage or loose connections. It is also important to verify that the probe tip area remains free from oil, dust, or debris buildup, as contamination can affect measurement accuracy. Periodic system verification ensures long-term reliability and consistent monitoring performance.
