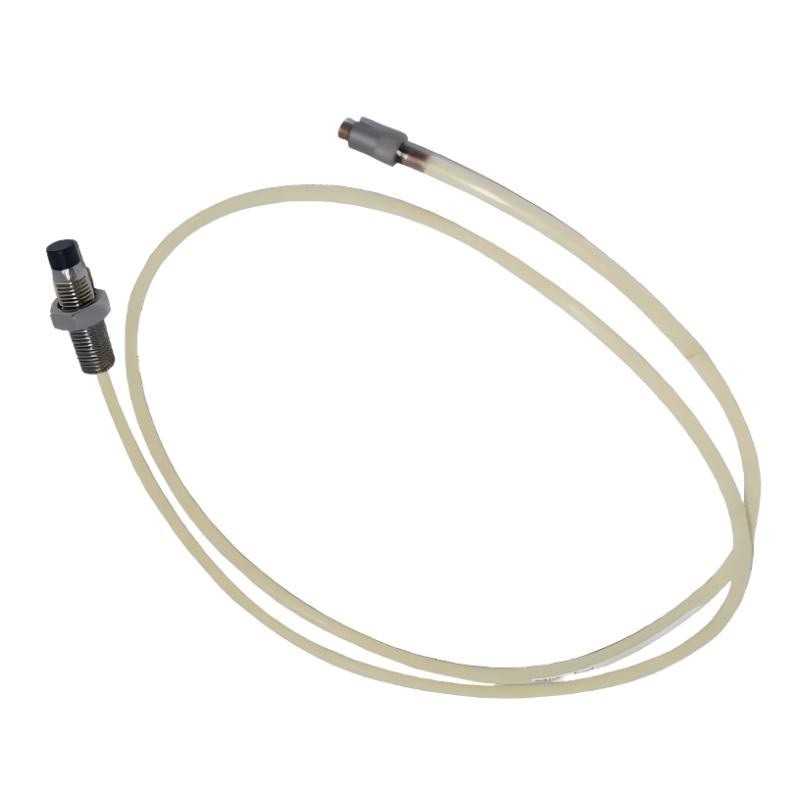

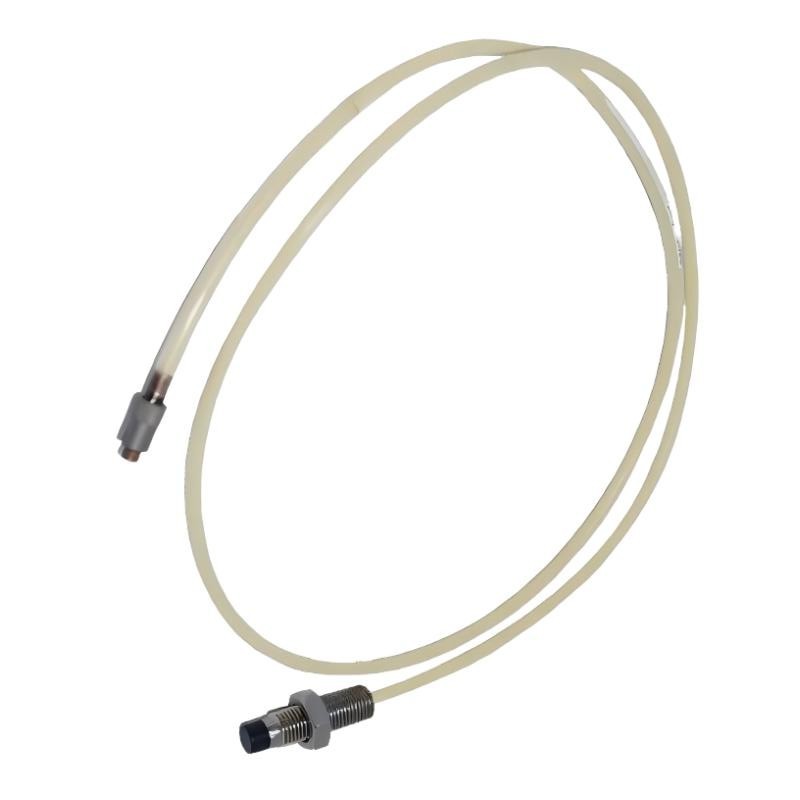

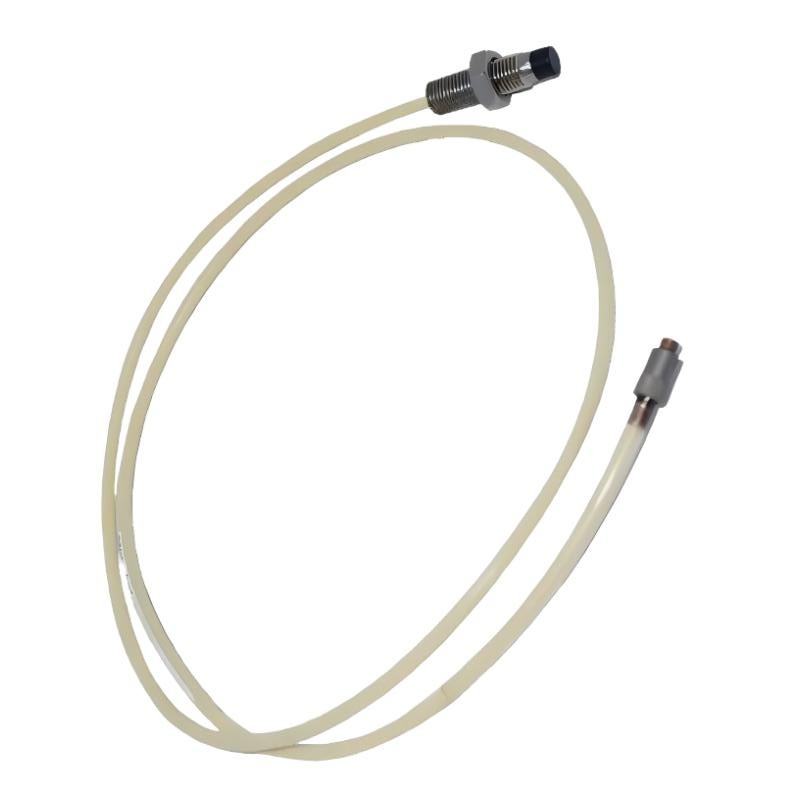

1. What is the main function of the Bently Nevada 21504-08-28-10-02 probe?

This probe is used for continuous non-contact monitoring of rotating machinery shafts. Its main function is to measure shaft vibration, radial displacement, and axial position in real time. By detecting very small changes in the gap between the probe tip and the conductive shaft surface, it converts mechanical movement into an electrical signal. This signal is used for condition monitoring, trend analysis, and protection functions in critical industrial machines such as turbines, compressors, pumps, and motors.

2. How does the eddy current measurement principle work in this probe?

The probe operates based on the eddy current principle. A high-frequency electromagnetic field is generated at the probe tip. When a conductive target such as a steel shaft enters this field, eddy currents are induced on the surface of the metal. These currents change the impedance of the probe coil, and the system converts these changes into a stable voltage signal proportional to the distance between the probe and the target. This enables precise non-contact measurement even under high-speed and harsh operating conditions.

3. What types of machinery is this probe typically used on?

This probe is widely used on critical rotating machinery where continuous monitoring is required. Typical applications include steam turbines, gas turbines, centrifugal compressors, industrial pumps, electric motors, and gearboxes. In these systems, small shaft movement variations can indicate early mechanical issues such as imbalance, misalignment, bearing wear, or rotor instability, making continuous monitoring essential for safe operation.

4. What type of output signal does the probe provide?

The probe provides a continuous analog voltage signal that varies proportionally with the distance between the probe tip and the shaft surface. This signal is processed by a compatible Bently Nevada monitoring system, which converts it into engineering parameters such as vibration amplitude, displacement, or axial position. These values are then used for machine protection logic, alarm thresholds, and condition trend analysis.

5. Is the probe suitable for harsh industrial environments?

Yes, this probe is specifically designed for harsh industrial environments. It can operate reliably in conditions involving high vibration, temperature variation, and strong electromagnetic interference. Its rugged construction and shielding ensure stable signal transmission even when installed near heavy rotating machinery or electrical equipment, making it suitable for continuous long-term operation in critical applications.

6. Does the probe require calibration after installation?

Yes, calibration is required after installation to ensure accurate measurement. The calibration process establishes the correct relationship between the output signal and the actual physical gap between the probe and the shaft surface. This step is essential for ensuring that vibration and displacement readings accurately reflect real machine conditions and support reliable diagnostic and protection decisions.

7. Which systems is this probe compatible with?

This probe is designed to work with the Bently Nevada 7200 series monitoring system. It integrates with compatible proximitor modules and monitoring racks to form a complete measurement chain. When properly installed, it provides reliable real-time data for vibration monitoring, shaft displacement tracking, and machine protection functions in industrial environments.

8. What maintenance practices are recommended for this probe?

Recommended maintenance includes periodic inspection of mounting stability, cable condition, and signal quality. The probe should remain securely fixed to avoid misalignment caused by vibration. Cable shielding should be checked to prevent noise or signal degradation. It is also important to keep the probe tip area clean and free from oil, dust, or debris, as contamination can affect measurement accuracy over time. Regular system checks help ensure stable long-term monitoring performance.
