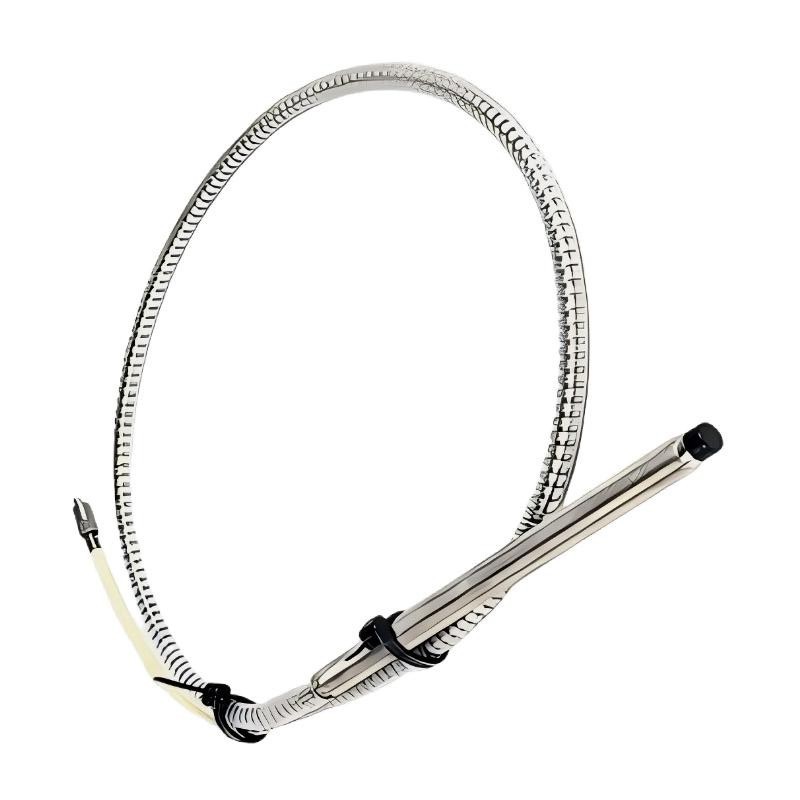

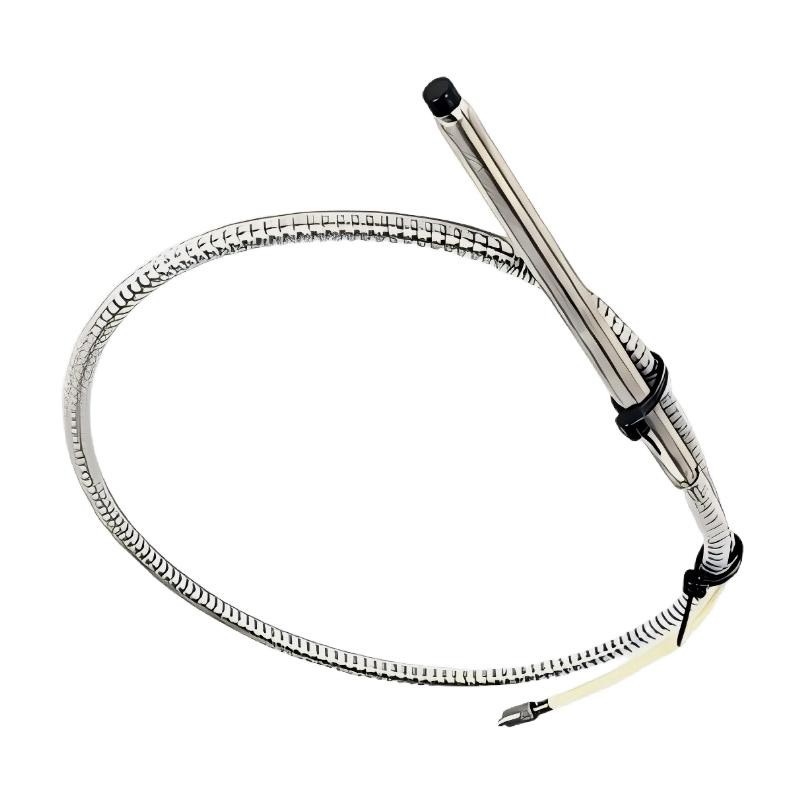

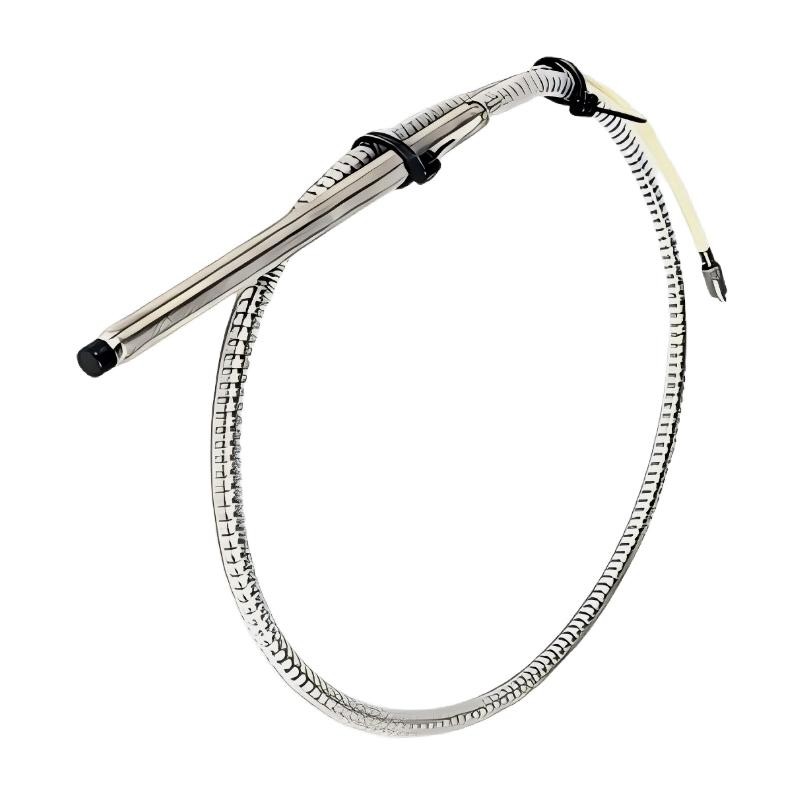

1. What is the primary application of this 8 mm armored probe in industrial systems?

This probe is primarily used in rotating machinery condition monitoring systems, where it plays a critical role in measuring shaft vibration and axial displacement. It is commonly installed on equipment such as steam turbines, gas turbines, centrifugal compressors, pumps, fans, and gearboxes. In these applications, the probe continuously tracks the dynamic position of the shaft and converts mechanical movement into electrical signals. These signals are then analyzed by monitoring systems to assess equipment health, detect early-stage mechanical faults, and support predictive maintenance strategies that help avoid unexpected equipment failures and production downtime.

2. How does the eddy current measurement technology work in this probe?

The probe operates using the eddy current principle, which is a non-contact measurement technique. A high-frequency electromagnetic field is generated at the probe tip. When this field interacts with a conductive metal surface, such as a rotating shaft, eddy currents are induced in the material. As the distance between the probe and the shaft changes due to vibration or displacement, the strength of these eddy currents also changes. The probe detects these variations and converts them into a proportional electrical signal. This allows for highly accurate, real-time measurement of shaft movement without physical contact, which is essential for high-speed rotating machinery.

3. Is this probe suitable for harsh industrial environments?

Yes, the probe is specifically designed for demanding industrial environments where mechanical stress, temperature variations, and electromagnetic interference are common. Its armored cable construction provides strong mechanical protection against abrasion, oil exposure, and accidental damage during installation or operation. Additionally, its shielding design enhances resistance to electromagnetic noise generated by nearby electrical equipment. Because of these characteristics, it is widely used in heavy industries such as power generation, petrochemical processing, and large-scale manufacturing, where equipment reliability and measurement stability are critical.

4. What role does this probe play in a vibration monitoring and protection system?

In a vibration monitoring system, this probe acts as the primary sensing element responsible for capturing real-time shaft behavior. It continuously measures changes in shaft position and vibration amplitude, which are key indicators of machine condition. The collected data is transmitted to a monitoring system, where it is processed and analyzed to identify abnormal conditions such as imbalance, misalignment, shaft bowing, bearing wear, or looseness. In protection systems, these signals can also trigger alarms or automatic shutdowns when vibration levels exceed predefined safety thresholds, helping prevent catastrophic machinery failure.

5. How can measurement accuracy and reliability be ensured during operation?

Measurement accuracy depends heavily on correct installation, stable mechanical alignment, and a clean measurement environment. The probe must be installed with a precisely controlled gap relative to the shaft surface, as incorrect spacing can lead to signal distortion or measurement errors. It is also important to ensure that the probe remains firmly fixed and is not affected by vibration-induced movement of its mounting structure. During operation, contamination such as oil buildup, dust, or debris near the sensing area should be avoided. Proper calibration during commissioning and periodic system verification also play an important role in maintaining long-term measurement accuracy and reliability.

6. Can this probe operate continuously in 24/7 industrial monitoring systems?

Yes, this probe is designed specifically for continuous online monitoring applications and is capable of 24/7 operation in industrial environments. It uses industrial-grade materials and a robust armored design to ensure long-term stability under constant mechanical and thermal stress. Unlike intermittent measurement devices, this probe is intended to provide uninterrupted real-time data for critical machinery, making it suitable for continuous condition monitoring systems where downtime is not acceptable. When properly installed and maintained, it can deliver stable performance over extended operational periods.

7. What are the key installation considerations for this probe?

Proper installation is essential for accurate and reliable performance. The probe must be positioned at the correct distance from the rotating shaft to ensure it operates within its optimal measurement range. The mounting structure should be rigid and resistant to vibration to prevent positional drift over time. Cable routing should be carefully planned to avoid proximity to high-voltage power lines or strong electromagnetic sources, which could introduce noise into the signal. Additionally, proper grounding practices should be followed to ensure signal integrity. During commissioning, system calibration is required to align the probe output with actual mechanical displacement values.

8. Is this probe fully compatible with Bently Nevada 7200 monitoring systems?

Yes, this probe is fully compatible with Bently Nevada 7200 series monitoring systems and is designed to work as part of an integrated machinery protection and condition monitoring solution. When used together with compatible proximitor modules and monitoring units, it provides accurate real-time vibration and displacement data for rotating equipment. This integration allows operators to build a complete predictive maintenance system that supports early fault detection, trend analysis, alarm generation, and automated protection actions. It is widely used in critical industrial assets where system reliability and operational safety are essential.
