1. What is the Bently Nevada 21505-00-59-10-02 7200 Series Armored Standard-Mount Probe mainly used for?

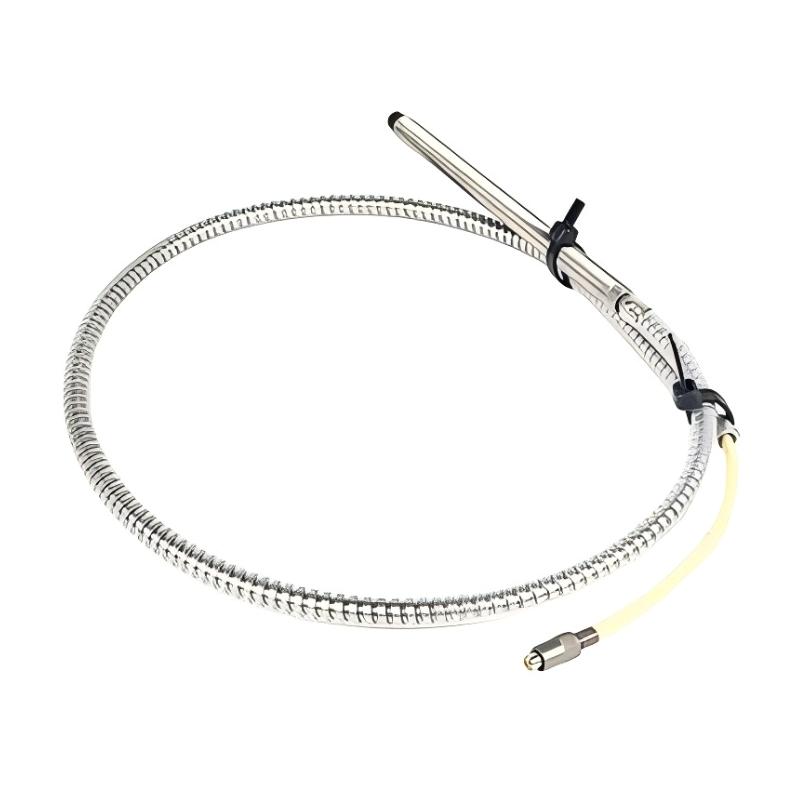

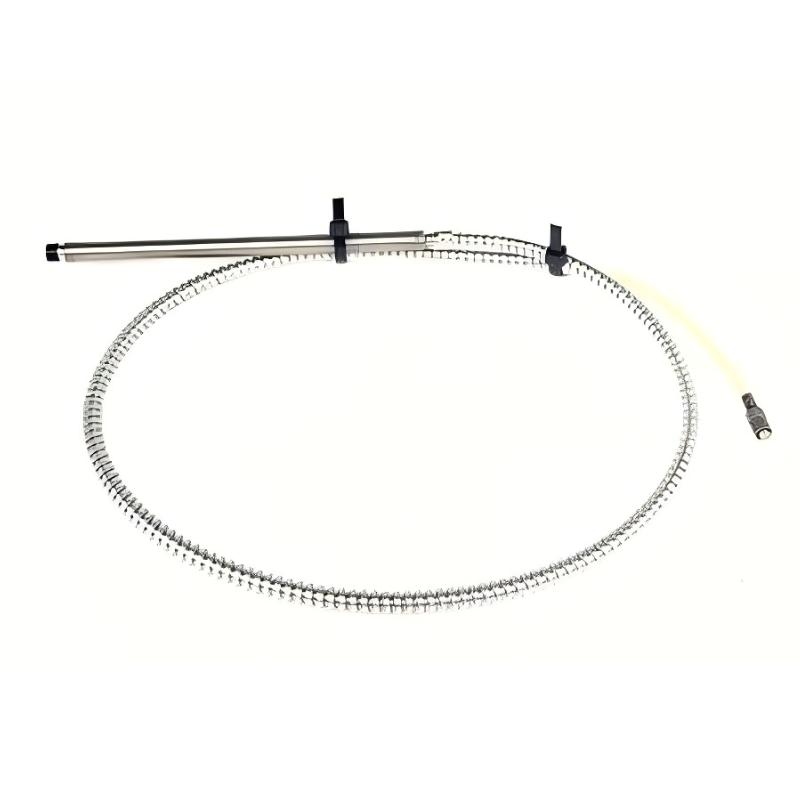

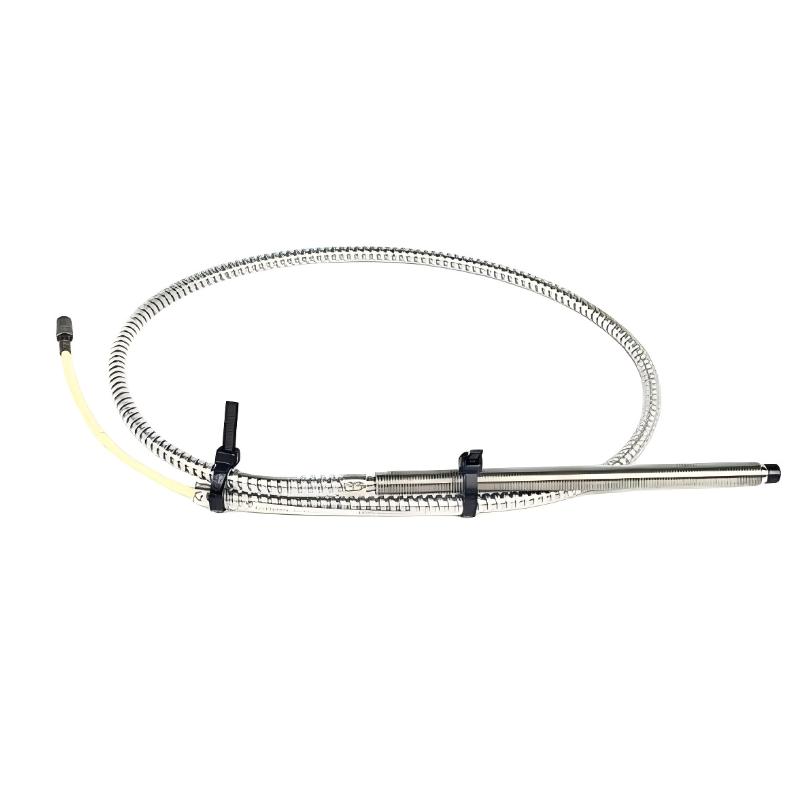

The Bently Nevada 21505-00-59-10-02 is an 8 mm armored standard-mount proximity probe designed for condition monitoring and protection systems of large rotating machinery. The probe detects changes in the distance between the rotating shaft and the probe tip without physical contact and converts shaft movement into electrical signals for analysis. It is commonly installed on steam turbines, compressors, generators, pumps and other high-speed rotating equipment. Compared with standard non-armored probes, the armored construction provides improved mechanical protection, making it suitable for industrial locations where vibration, impact or installation limitations may exist. By continuously monitoring shaft vibration and shaft displacement changes, maintenance teams can identify abnormal trends early, improve predictive maintenance efficiency and reduce unexpected equipment downtime.

2. What measurement technology does the Bently Nevada 21505-00-59-10-02 use?

The 21505-00-59-10-02 uses eddy current non-contact measurement technology. The probe generates a high-frequency electromagnetic field through its internal sensing coil. When the metallic rotating shaft enters the detection area, it changes the electromagnetic field characteristics. The system measures these changes and converts them into corresponding vibration or displacement signals. Since the probe does not physically contact the rotating shaft, there is no mechanical wear between the sensor and the measured surface, allowing reliable operation on high-speed rotating equipment. Eddy current technology provides fast response, stable measurement performance and excellent suitability for industrial machinery protection and condition monitoring applications.

3. What equipment does the 21505-00-59-10-02 need to work with?

The Bently Nevada 21505-00-59-10-02 typically operates together with a compatible Proximitor sensor and 7200 Series monitoring system to provide complete vibration and displacement measurement capability. The probe detects the distance variation between the rotating shaft and the probe tip, while the Proximitor module processes the signal and converts it into standardized monitoring data. The processed information can then be transmitted to vibration monitoring instruments, machinery protection systems, PLC platforms or other industrial control systems. During system configuration, the probe, extension cable, Proximitor module and monitoring equipment must be properly matched according to the application requirements to ensure accurate measurement and stable operation.

4. What should be considered when installing the 21505-00-59-10-02?

When installing the 21505-00-59-10-02, the probe position, installation direction and operating gap must meet the equipment design requirements. Because the probe is used for rotating machinery monitoring, installation accuracy directly affects measurement reliability. The threaded connection should be properly secured to prevent loosening caused by long-term mechanical vibration. The armored cable section should also be installed correctly to avoid excessive bending, mechanical pressure or external damage. After installation, the monitoring system should be checked to verify stable signal output, including gap signal, vibration signal and trend changes during machine operation. Proper installation and commissioning help improve measurement accuracy and reduce false alarms.

5. What rotating machinery faults can be detected using the 21505-00-59-10-02?

The 21505-00-59-10-02 is mainly used to detect abnormal shaft vibration and shaft displacement conditions in rotating machinery. It can help identify potential problems such as rotor imbalance, bearing wear, coupling misalignment, abnormal shaft movement and mechanical instability. In critical equipment such as steam turbines and compressors, shaft position monitoring is especially important because abnormal displacement may affect rotor safety and thrust bearing performance. By continuously collecting and analyzing vibration and displacement trends, maintenance engineers can evaluate equipment health conditions, schedule preventive maintenance and reduce the possibility of severe mechanical failures or unexpected shutdowns.

6. How can you determine whether the Bently Nevada 21505-00-59-10-02 is operating correctly?

To determine whether the 21505-00-59-10-02 is functioning correctly, the complete monitoring system should be inspected. First, verify that the connection between the probe and Proximitor module is correct and confirm that power supply and signal transmission are normal. Then review the monitoring data, including gap value, dynamic vibration signal and operating trends. If the signal suddenly changes, continuously drifts or disappears completely, possible causes include incorrect probe installation, cable problems, electrical interference or issues with the signal processing module. The actual mechanical operating condition should also be considered because real changes in machine vibration may also affect monitoring signals. A systematic inspection process helps distinguish sensor problems from mechanical equipment faults.

7. What is the purpose of the armored construction in the 21505-00-59-10-02?

The armored construction of the 21505-00-59-10-02 is designed to improve mechanical protection in industrial environments. Large rotating machinery often operates under conditions involving continuous vibration, impact, oil contamination and limited installation space. The armored structure increases the durability of the probe cable section and reduces the risk of signal problems caused by mechanical damage. This makes the probe more suitable for demanding industrial applications where additional protection is required. It should be noted that the armored design mainly improves physical protection and does not change the basic measurement principle. The probe still uses eddy current technology to provide accurate shaft vibration and displacement monitoring.

8. What maintenance recommendations should be followed when using the Bently Nevada 21505-00-59-10-02?

To maintain long-term reliable operation of the 21505-00-59-10-02, a regular inspection and maintenance plan should be established. During scheduled equipment maintenance, check the probe mounting condition, cable connections and armored section for any signs of damage. The vibration and shaft displacement trends recorded by the monitoring system should also be reviewed regularly to evaluate equipment health instead of relying only on individual measurement values. For critical rotating machinery, periodic verification of monitoring channel accuracy and alarm settings is recommended to ensure proper protection performance. If vibration levels continue increasing, displacement signals become abnormal or monitoring data becomes unstable, further mechanical inspection should be performed promptly. Proper maintenance of the proximity probe system improves the reliability of rotating machinery protection and extends equipment operating life.
