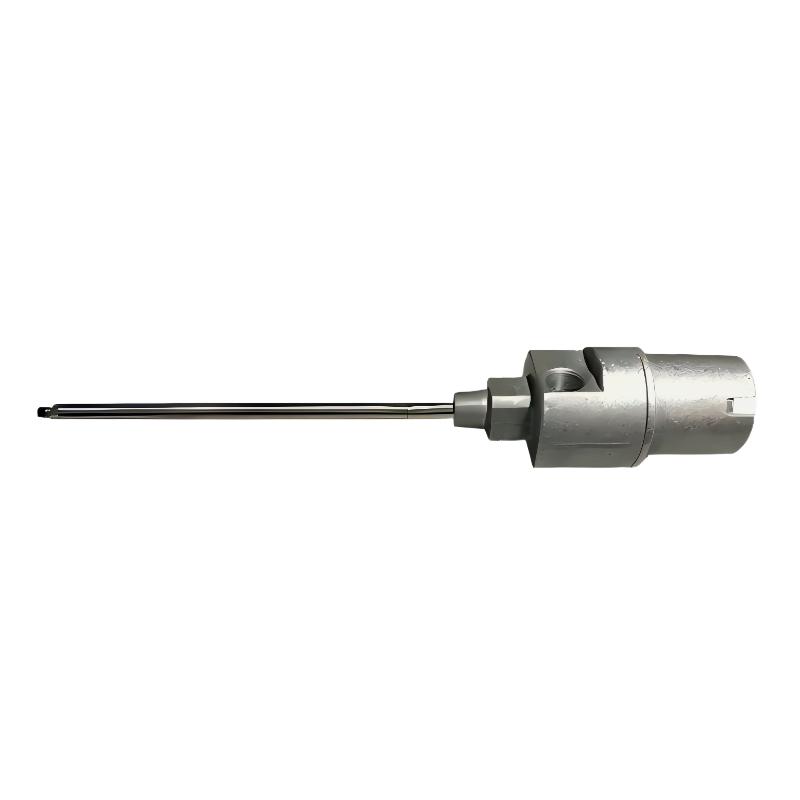

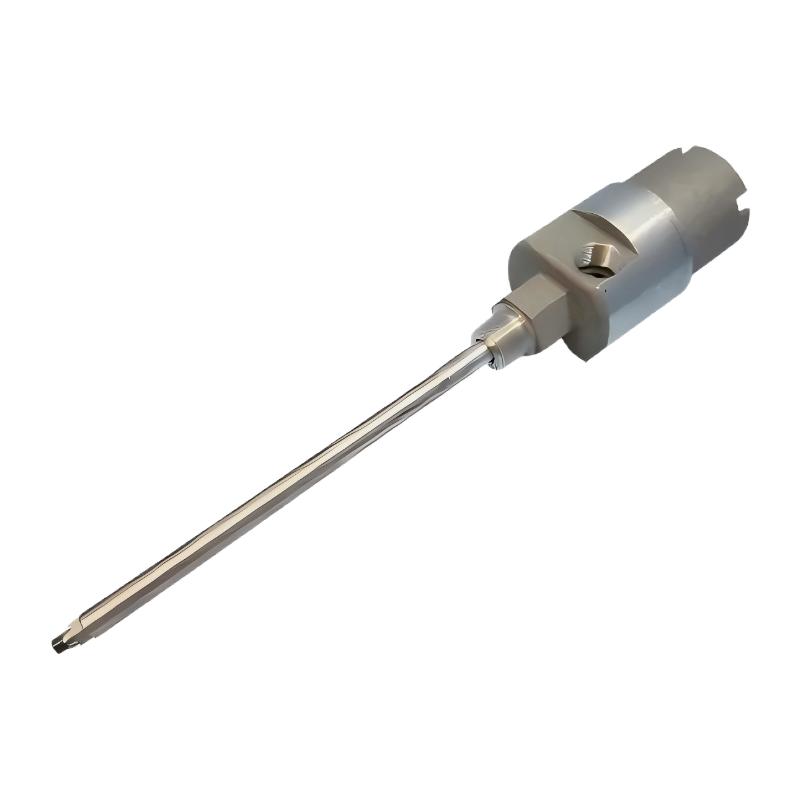

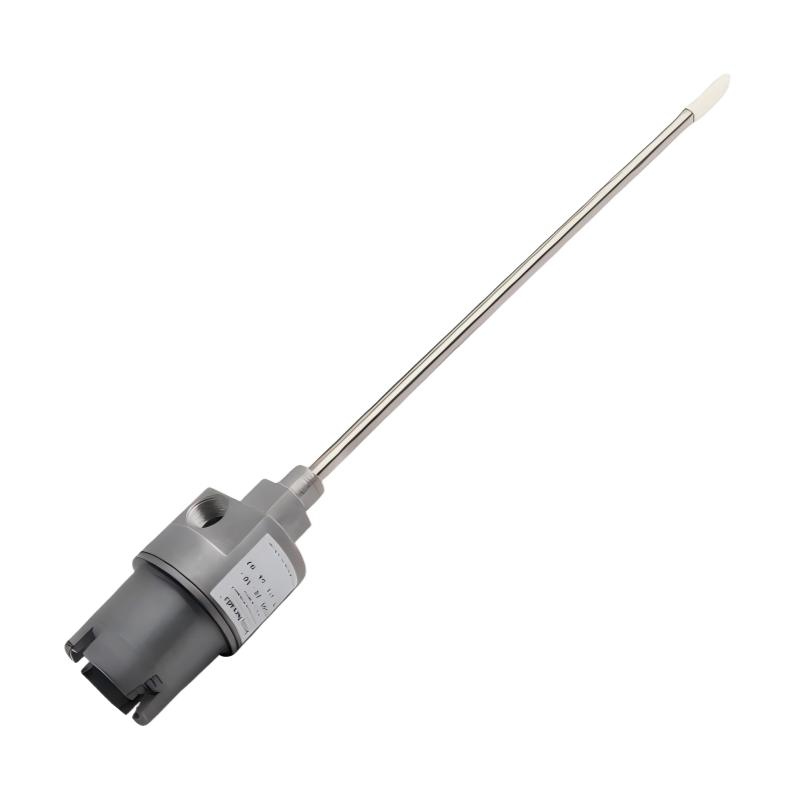

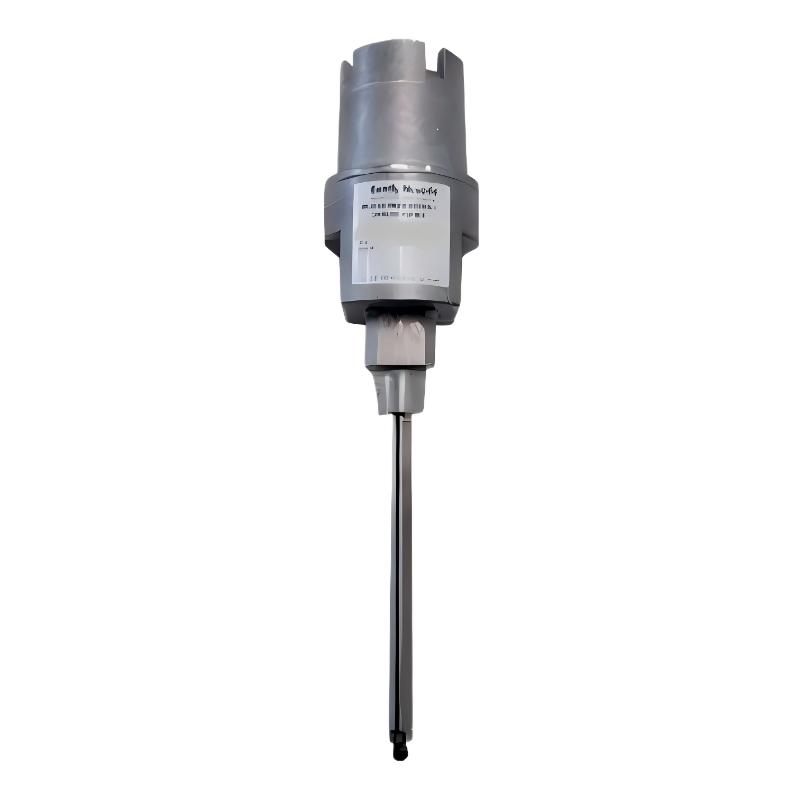

1. What is the primary function of the 3300XL Proximity Probe Housing Assembly?

The primary function of the housing assembly is to provide a stable and secure mounting structure for the Bently Nevada 3300 XL proximity probe. It ensures that the probe maintains a precise and fixed position relative to the monitored shaft or rotating surface. This stability is essential for accurate vibration, displacement, and condition monitoring measurements in industrial machinery.

2. Where is the 24701-28-10-00-040-00-02 typically used?

This housing assembly is commonly used in turbomachinery applications such as steam turbines, gas turbines, compressors, pumps, and other large rotating equipment. It is widely deployed in power generation plants, petrochemical facilities, and heavy industrial environments where continuous machinery health monitoring is required.

3. Why is a dedicated probe housing necessary?

A dedicated probe housing ensures mechanical stability and repeatable probe positioning under harsh operating conditions. Without it, vibration, thermal expansion, or mechanical stress could cause probe misalignment, resulting in inaccurate readings or unstable signals. It also provides grounding and electromagnetic shielding to reduce noise interference and improve signal quality.

4. What problems can occur if the housing is installed incorrectly?

Incorrect installation may lead to improper probe gap settings, unstable vibration signals, or false alarm conditions. In severe cases, misalignment can cause the probe to contact rotating machinery, potentially damaging both the probe and equipment. Loose mounting may also result in long-term drift and measurement inaccuracy.

5. How does the housing improve measurement reliability?

The housing improves reliability by maintaining rigid mechanical alignment and reducing environmental interference. Its structure minimizes the effects of vibration and thermal movement, while its shielding design helps reduce electromagnetic noise. Together, these features ensure consistent and accurate measurement signals over long-term operation.

6. What maintenance is required for this housing assembly?

Maintenance typically includes periodic inspection of mounting tightness, probe alignment, and grounding connections. Technicians should also check for corrosion, mechanical wear, or loosening caused by continuous vibration. In harsh environments, more frequent inspections are recommended to maintain system stability and measurement accuracy.

7. Can environmental conditions affect performance?

Yes. High vibration, extreme temperatures, humidity, and corrosive gases can gradually affect the mechanical integrity and stability of the housing. These conditions may lead to loosening, material degradation, or alignment shifts. Proper installation practices and routine maintenance help minimize these risks.

8. How is the housing integrated into the 3300 XL system?

The housing is mechanically mounted onto the machine structure and used to position the proximity probe at a precise distance from the target surface. It connects with the probe and extension cable to form a complete measurement chain. Once installed, it becomes part of the continuous monitoring system used for real-time vibration and displacement analysis of rotating machinery.
