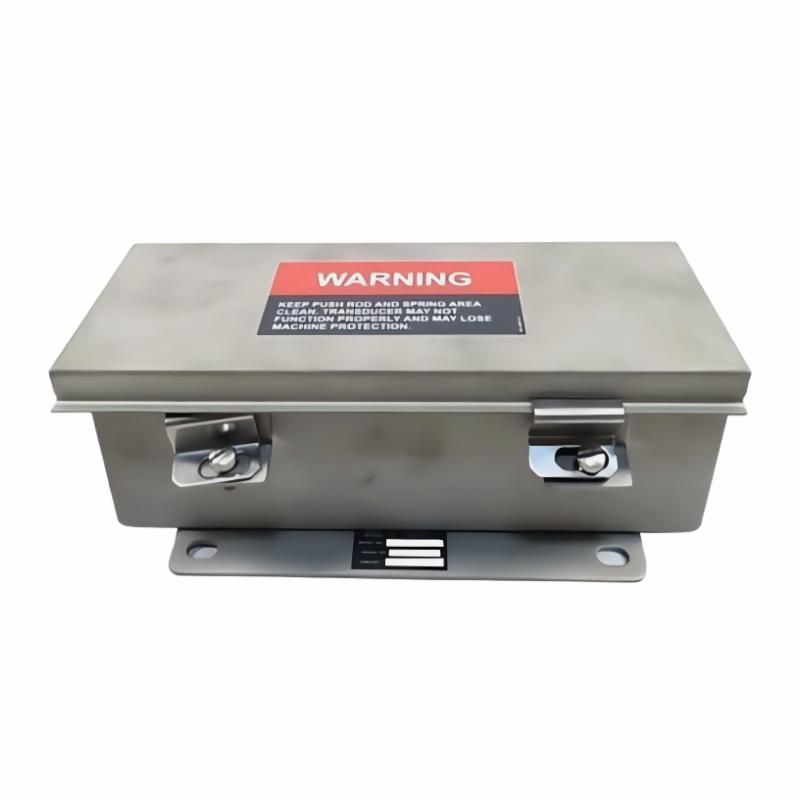

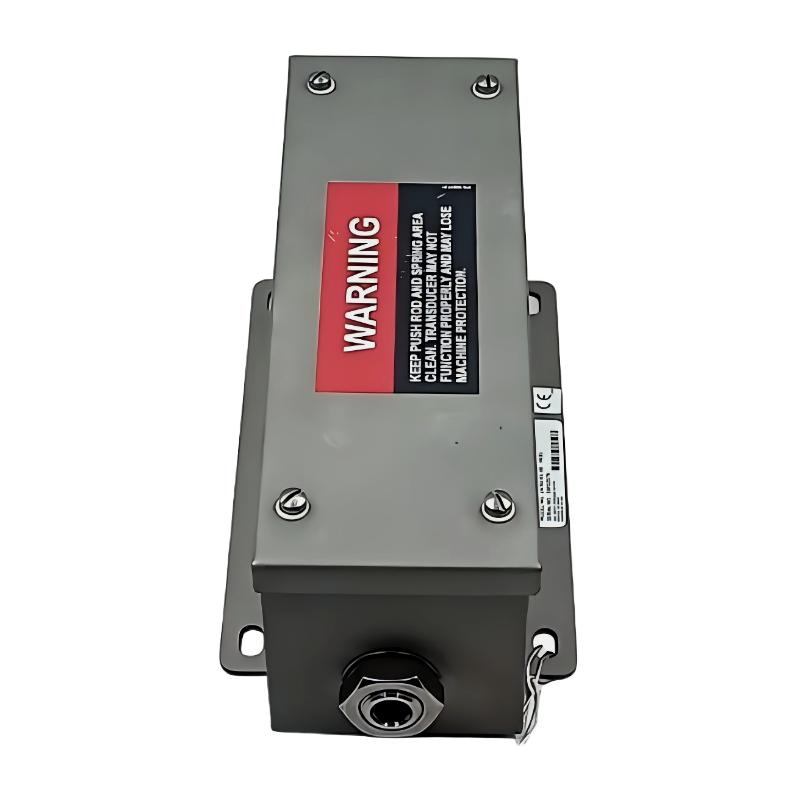

1. What is the main function of the 24765-01-00 Housing Expansion Sensor Assembly?

The primary function of this assembly is to provide an extended and stable mounting structure for proximity probes or related sensors used in machinery monitoring systems. It allows the sensor to be positioned more flexibly in constrained or complex installation environments while maintaining mechanical stability. This ensures that the sensing element remains correctly aligned with the target surface for accurate vibration or displacement measurement.

2. Where is this housing expansion assembly typically used?

This component is commonly used in turbomachinery applications such as steam turbines, gas turbines, compressors, pumps, and other large rotating equipment. It is widely deployed in industries like power generation, oil and gas, petrochemical processing, and heavy manufacturing where continuous condition monitoring is required for equipment safety and reliability.

3. Why is an expansion-type sensor housing necessary?

An expansion-type housing is necessary when standard probe mounting configurations cannot meet spatial, thermal, or mechanical constraints. It provides additional installation flexibility, allowing the sensor to be positioned away from high-temperature zones, vibration hotspots, or mechanically obstructed areas, while still maintaining accurate measurement alignment.

4. What problems can occur if the installation is incorrect?

Incorrect installation may lead to probe misalignment, unstable signal output, or inaccurate measurement data. In severe cases, mechanical interference or excessive vibration transfer can occur, potentially affecting both sensor performance and machine safety. Poor mounting integrity may also result in long-term loosening and measurement drift.

5. How does this assembly improve measurement reliability?

The assembly improves reliability by providing a rigid and stable mechanical platform for the sensor. This reduces the influence of vibration, thermal stress, and structural movement on the probe position. As a result, the measurement system can maintain consistent signal quality and long-term stability under harsh operating conditions.

6. What maintenance is required for this component?

Maintenance typically includes checking mechanical fastening integrity, verifying sensor alignment, and ensuring that no loosening occurs due to vibration. Technicians should also inspect for corrosion, wear, or structural deformation. In demanding industrial environments, periodic inspection is essential to ensure continuous reliable operation.

7. Can environmental conditions affect performance?

Yes. High vibration, extreme temperature variations, humidity, and corrosive atmospheres can gradually affect the structural integrity of the housing. Over time, these conditions may lead to material fatigue, loosening of fasteners, or alignment shifts, which can impact measurement accuracy if not properly managed.

8. How is this assembly integrated into a monitoring system?

The housing is mechanically installed on the machine structure and works as a support interface for the proximity probe or sensor. It ensures that the sensing element remains at a precise and stable position relative to the monitored surface. Once installed, it becomes part of the overall vibration or displacement monitoring chain, enabling continuous machinery condition assessment.
