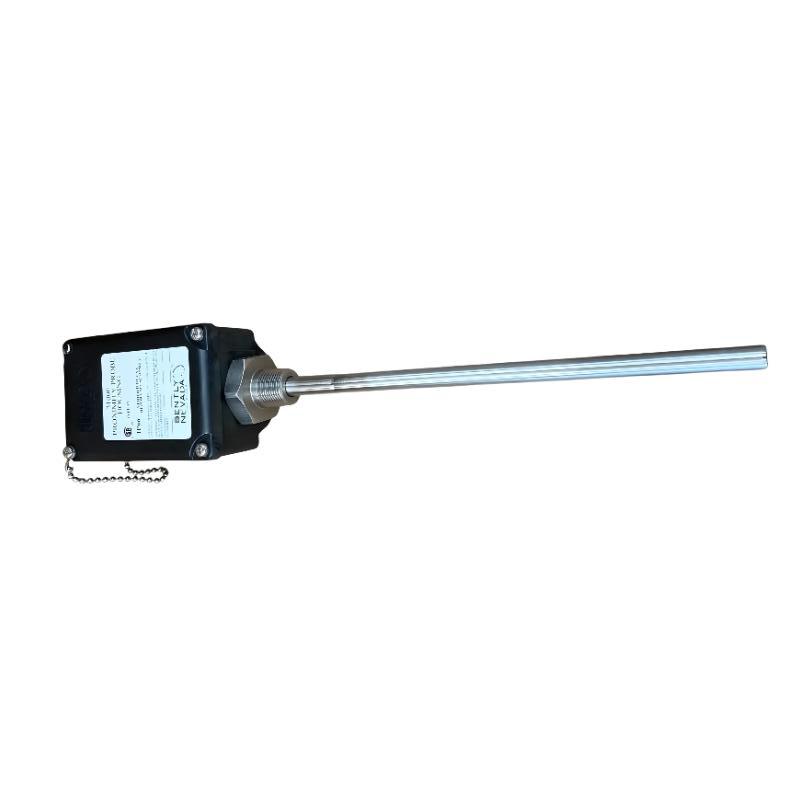

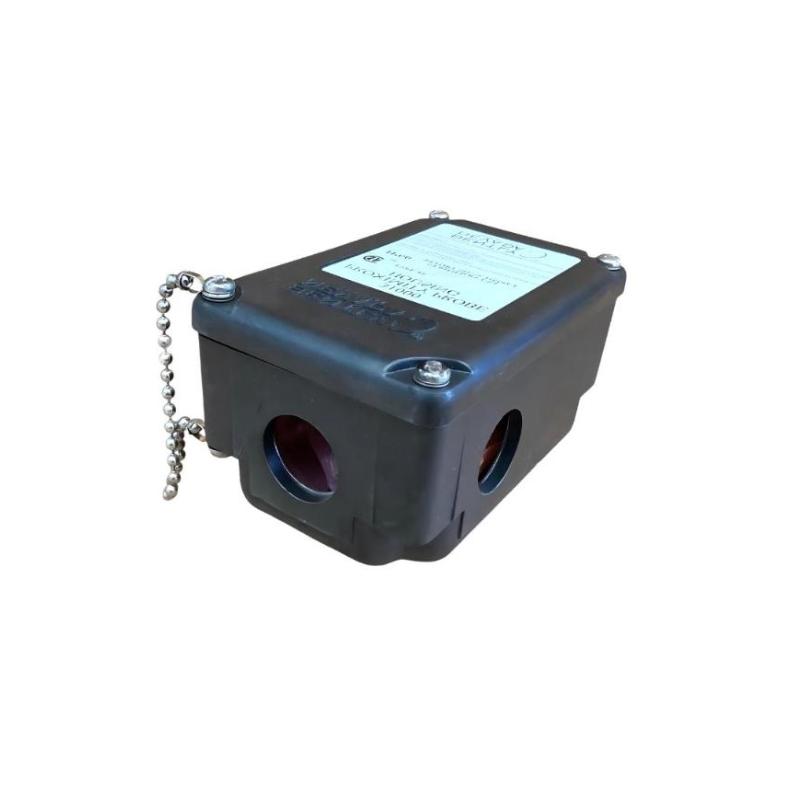

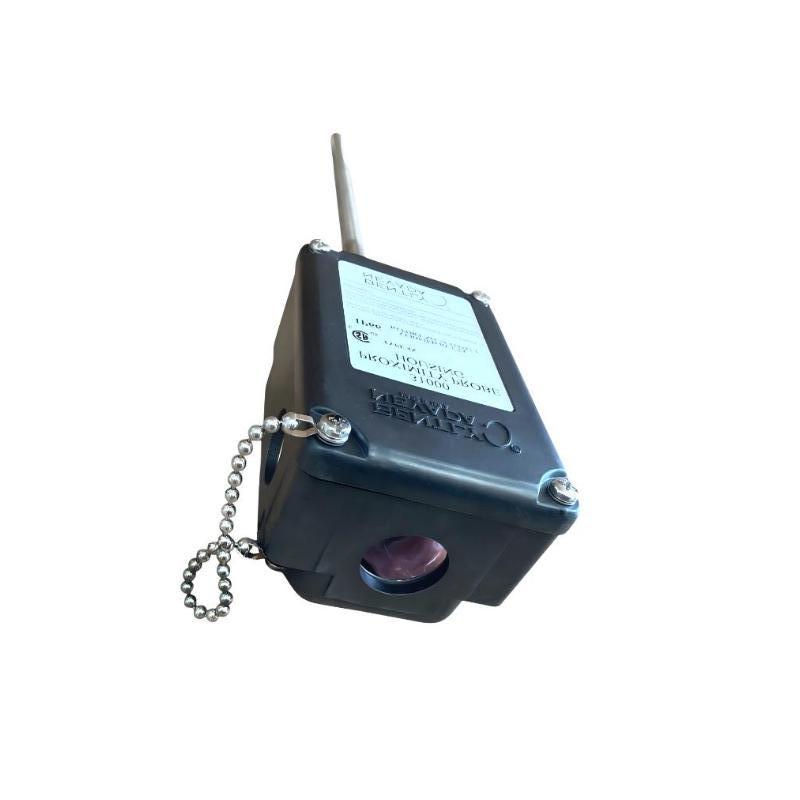

Q1: What is the primary function of the Bently Nevada 31000-27-05-00-035-03-02 Proximity Probe Housing Assembly?

A: This housing assembly is designed to provide a rigid and precisely aligned mounting structure for proximity probes used in vibration and shaft position monitoring systems. Its main function is to maintain a stable and repeatable gap between the probe tip and the rotating shaft surface, ensuring accurate eddy current measurement. It does not perform any electronic processing but provides the mechanical stability required for reliable condition monitoring.

Q2: Why is stable probe mounting critical in proximity measurement systems?

A: Proximity probes measure extremely small changes in distance between the probe tip and the shaft surface. Any mechanical instability, vibration, or misalignment can introduce signal distortion. A stable housing ensures consistent probe positioning, reducing measurement noise and improving long-term accuracy and repeatability.

Q3: How does this housing improve vibration monitoring results?

A: By securing the probe in a fixed and vibration-resistant position, the housing minimizes external mechanical disturbances that can affect signal quality. This allows monitoring systems to capture more accurate vibration amplitude, phase, and displacement data, which is essential for identifying early mechanical faults such as imbalance, misalignment, or bearing wear.

Q4: What types of equipment typically use this housing assembly?

A: It is widely used in critical rotating machinery such as steam turbines, gas turbines, compressors, pumps, generators, and large industrial motors. These machines rely on continuous condition monitoring systems to ensure operational safety and early detection of mechanical degradation.

Q5: Is this housing assembly an electronic device?

A: No, it is a fully passive mechanical component. It contains no electronics, requires no electrical power, and does not process signals. Its role is strictly structural, providing probe support, alignment, and protection.

Q6: What are key considerations during installation?

A: Installation requires secure mechanical mounting to the machine structure, correct alignment with the target shaft, and proper cable routing to avoid mechanical stress. The mounting location should also minimize external vibration influence to ensure stable long-term measurement performance.

Q7: How does this assembly perform in harsh industrial environments?

A: The housing is designed for continuous operation in demanding industrial conditions, including vibration, temperature variation, and mechanical stress. Its robust construction helps maintain probe alignment over time, reducing signal drift and ensuring reliable monitoring performance.

Q8: Is this housing compatible with all Bently Nevada proximity probe systems?

A: Compatibility depends on the specific probe model and system configuration. While it is intended for use within Bently Nevada proximity monitoring systems such as the 3300 and 3300 XL series, proper verification is required before installation to ensure correct mechanical fit and system integration.
