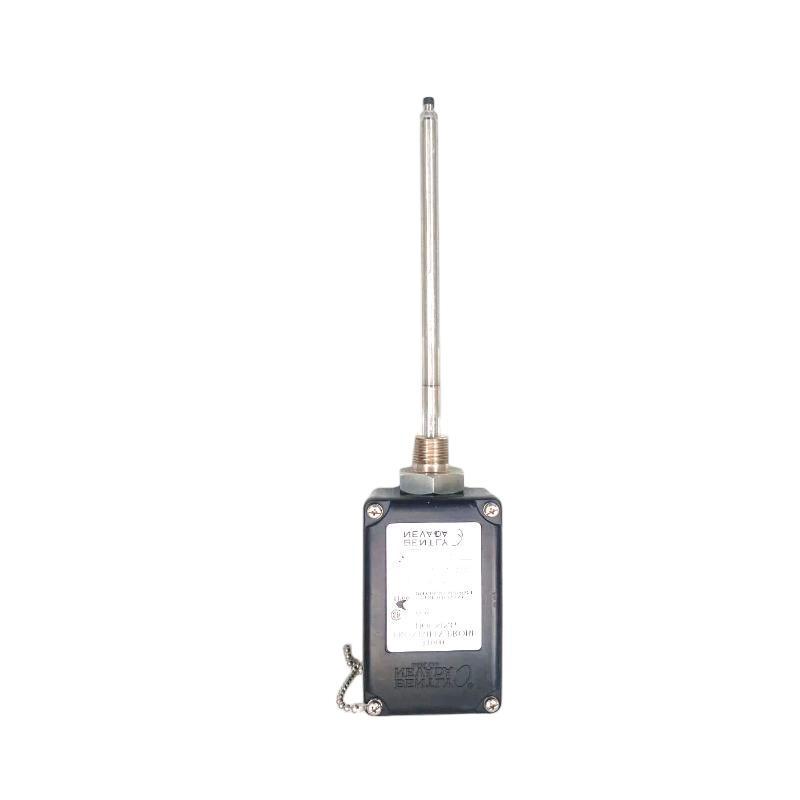

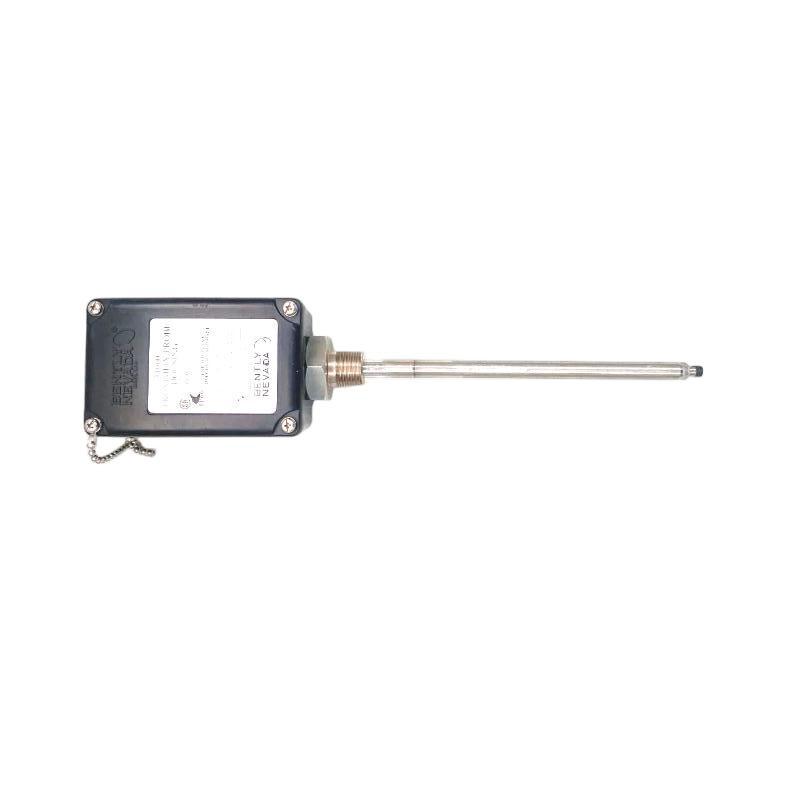

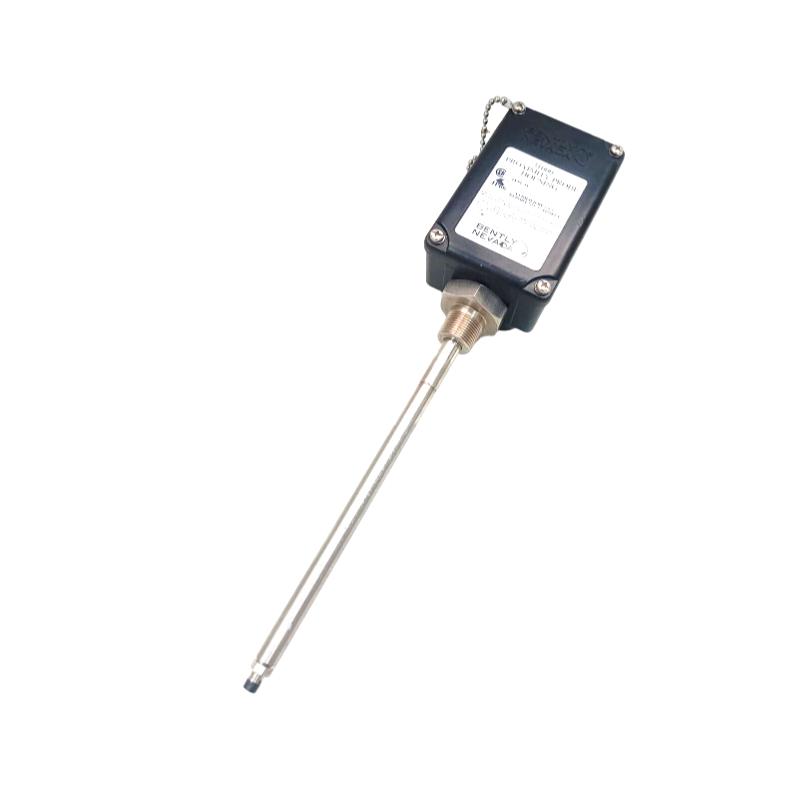

Q1: What is the main function of the Bently Nevada 31000-28-05-00-059-02-02 Proximity Probe Housing Assembly?

A: The primary function of this housing assembly is to provide a rigid and precisely aligned mounting structure for proximity probes used in rotating machinery condition monitoring systems. It ensures that the probe remains fixed in its designed position relative to the shaft surface, maintaining a stable and consistent air gap. This stability is essential because proximity probe measurements are highly sensitive to even minor mechanical movement. By eliminating unwanted vibration-induced misalignment, the housing helps ensure accurate, repeatable, and reliable vibration and displacement readings over long-term operation.

Q2: Which monitoring systems is this product compatible with?

A: This probe housing assembly is designed for use with Bently Nevada 3300 and 3500 series condition monitoring systems. These systems are widely used in industrial machinery protection applications, particularly for monitoring vibration, shaft displacement, and position in critical rotating equipment. The housing ensures correct mechanical integration of the probe into these systems, supporting consistent signal quality and reliable long-term monitoring performance in demanding environments.

Q3: What types of equipment typically use this housing assembly?

A: The product is commonly installed on high-value rotating machinery such as steam turbines, gas turbines, centrifugal compressors, large pumps, industrial fans, and generators. These machines operate under continuous load, high speed, and harsh environmental conditions, making real-time condition monitoring essential. The housing ensures that proximity probes remain stable and accurately positioned, which is critical for detecting early signs of mechanical imbalance, misalignment, or bearing wear.

Q4: Why is probe stability so important in proximity measurement systems?

A: Probe stability directly affects the accuracy of vibration and displacement measurements. The measurement principle depends on maintaining a precise and constant distance between the probe tip and the rotating shaft surface. If the probe shifts due to vibration, thermal expansion, or poor mounting, it can introduce signal drift, noise, or incorrect amplitude readings. The housing assembly eliminates these risks by providing a rigid mechanical structure that locks the probe into a stable position throughout continuous operation.

Q5: What problems can result from incorrect installation?

A: Improper installation can lead to a variety of performance issues, including unstable air gaps, fluctuating signal output, inaccurate vibration trends, and false alarm conditions. In more severe cases, misalignment may cause the probe to operate outside its optimal measurement range, reducing sensitivity and potentially masking early fault indicators. Over time, these issues can compromise the reliability of the entire machinery protection system and increase the risk of undetected equipment failure.

Q6: How can technicians verify correct installation?

A: Proper installation verification involves both mechanical and signal-level checks. Technicians should ensure that the probe is securely mounted with no mechanical looseness, confirm that alignment with the shaft is within specification, and verify that the air gap is correctly set. During operation, signal stability should be monitored through the control system; consistent readings without drift, noise, or sudden fluctuations indicate correct installation. Any irregular signal behavior should be investigated and corrected promptly.

Q7: How does this housing perform in harsh industrial environments?

A: The housing is engineered for demanding industrial environments where equipment is exposed to high vibration, elevated temperatures, oil mist, dust, and corrosive substances. Its robust metal construction provides strong mechanical integrity under continuous stress conditions. Additionally, it helps protect the probe from environmental contamination, ensuring long-term measurement stability in industries such as oil and gas, petrochemical processing, and power generation.

Q8: What maintenance practices are recommended for long-term reliability?

A: Long-term reliability depends on regular inspection and preventive maintenance. Technicians should periodically check mechanical fastening points for looseness caused by vibration, verify that probe alignment remains within tolerance, and inspect for corrosion or wear on mounting components. It is also important to review system trend data to identify early signs of signal drift or instability. During scheduled maintenance shutdowns, recalibration of probe gap settings and mechanical realignment should be performed to ensure continued measurement accuracy and system integrity.
