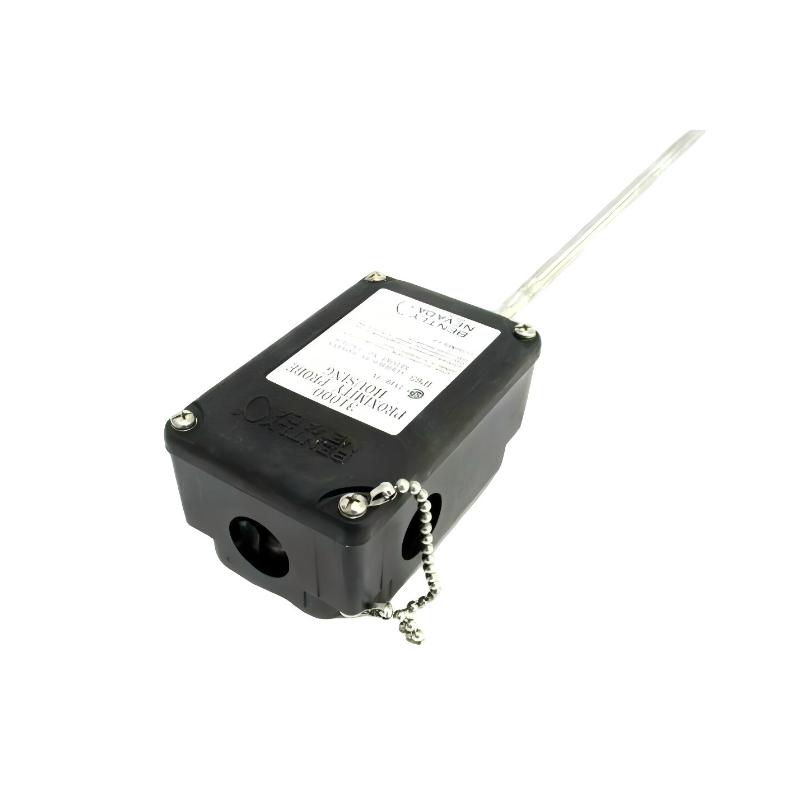

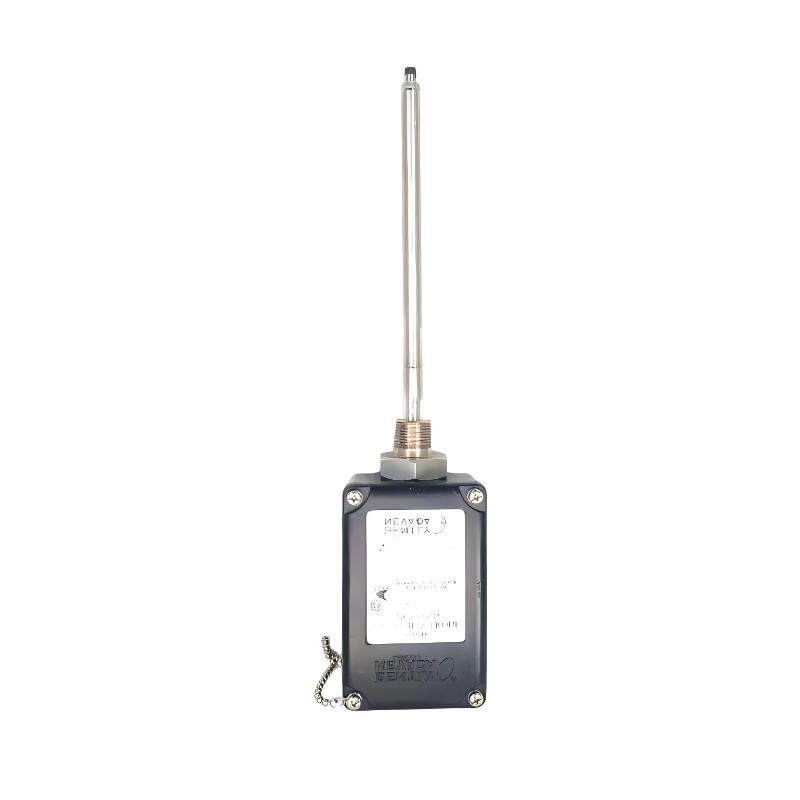

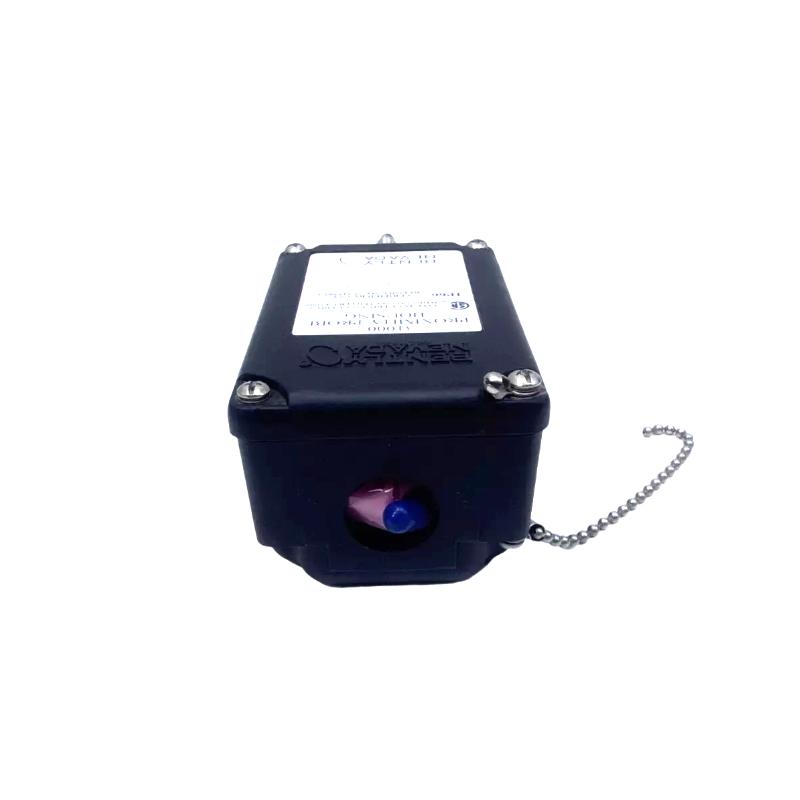

Q1: What is the main function of the Bently Nevada 31000-28-05-15-030-01-02 Proximity Probe Housing Assembly?

A: The primary function of this housing assembly is to provide a rigid and stable mounting structure for proximity probes used in rotating machinery condition monitoring systems. It ensures that the probe remains precisely positioned relative to the rotating shaft surface, maintaining a consistent air gap. Since proximity probe technology depends on extremely small changes in this gap to measure vibration and displacement, any mechanical instability can directly affect measurement accuracy. The housing eliminates unwanted movement and ensures long-term signal stability under continuous industrial operation.

Q2: Which systems is this housing compatible with?

A: This probe housing is designed for use with Bently Nevada 3300 and 3500 series condition monitoring systems. These systems are widely used for machinery protection and vibration monitoring in industrial applications. The housing ensures correct mechanical integration of the probe, allowing stable and reliable signal output in critical rotating equipment monitoring environments.

Q3: What types of equipment typically use this product?

A: It is commonly installed on critical rotating machinery such as steam turbines, gas turbines, centrifugal compressors, large industrial pumps, fans, and generators. These machines operate under high speed, high load, and continuous duty conditions, where real-time vibration and displacement monitoring is essential for safe and efficient operation.

Q4: Why is probe mounting stability so important?

A: Probe mounting stability is essential because proximity probe measurements rely on maintaining a fixed and precise distance between the probe tip and the shaft surface. Even slight movement caused by vibration, thermal expansion, or poor installation can introduce signal drift, noise, or incorrect amplitude readings. The housing ensures mechanical rigidity, preventing such variations and maintaining measurement consistency over time.

Q5: What problems can result from incorrect installation?

A: Incorrect installation may lead to unstable probe positioning, fluctuating signal output, inaccurate vibration trends, and false alarm conditions. In severe cases, misalignment can reduce measurement sensitivity or prevent early detection of mechanical faults, increasing the risk of unexpected equipment failure and unplanned downtime.

Q6: How can correct installation be verified?

A: Proper installation can be verified by ensuring the probe is securely fixed, checking correct alignment with the shaft centerline, and confirming that the air gap is within specification. During operation, stable and noise-free signals indicate correct installation, while drift or irregular waveform behavior suggests adjustment is needed.

Q7: How does this housing perform in harsh industrial environments?

A: The housing is engineered for demanding industrial environments where machinery is exposed to high vibration, elevated temperatures, oil mist, dust, and corrosive substances. Its rugged metal construction ensures structural integrity under continuous stress while protecting the probe from environmental contamination that could affect measurement accuracy.

Q8: What maintenance practices are recommended for long-term reliability?

A: Recommended maintenance includes periodic inspection of mechanical fasteners to ensure they remain tight under vibration, verification of probe alignment and air gap stability, and checking for corrosion or wear. It is also important to review system trend data for early signs of signal drift. During scheduled shutdowns, recalibration and mechanical verification should be performed to maintain long-term measurement accuracy and system reliability.
