Technical Specifications

FAQ

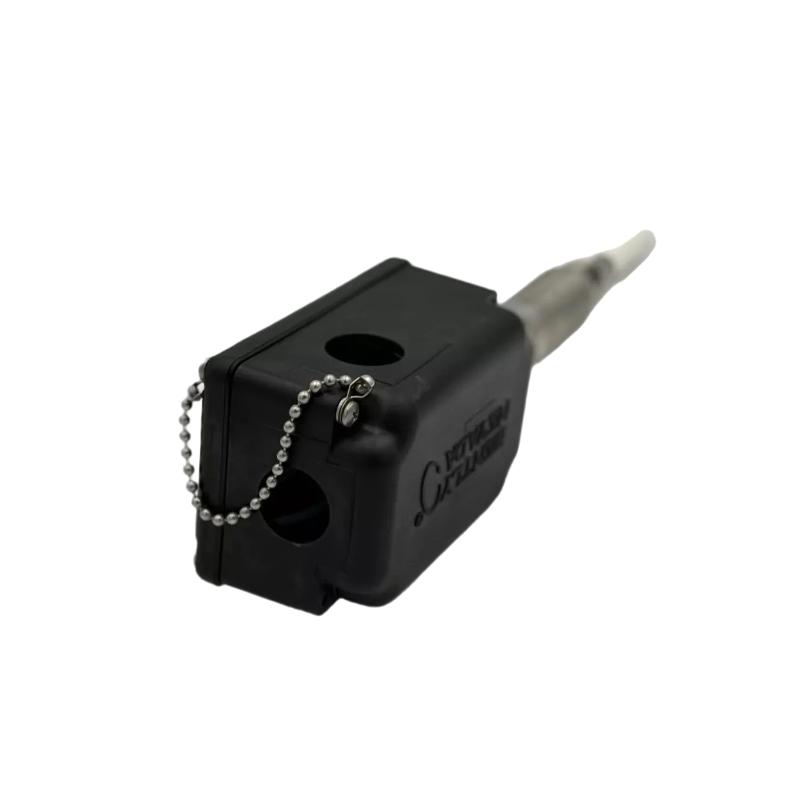

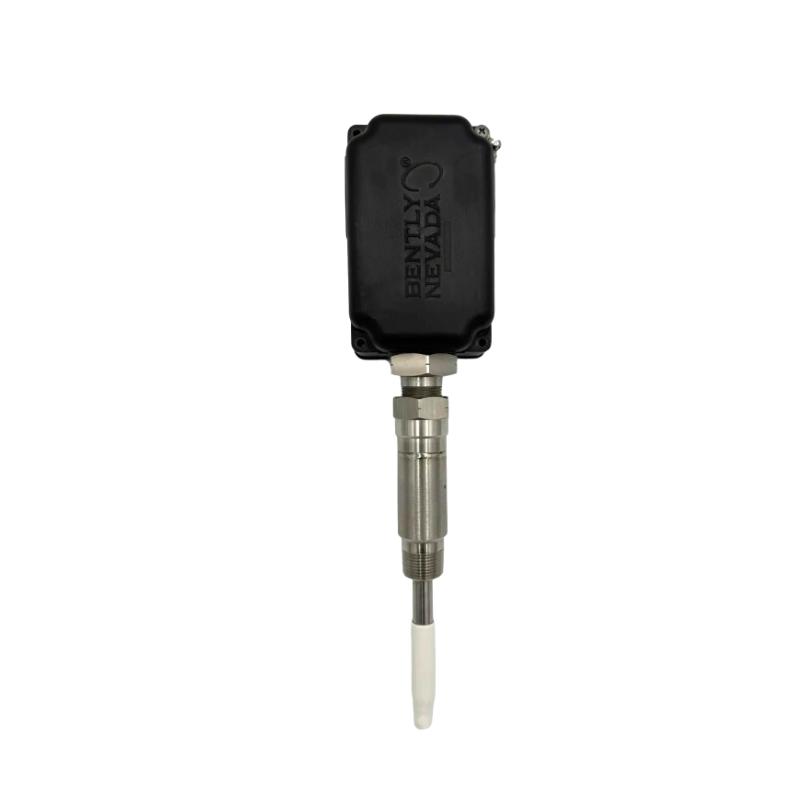

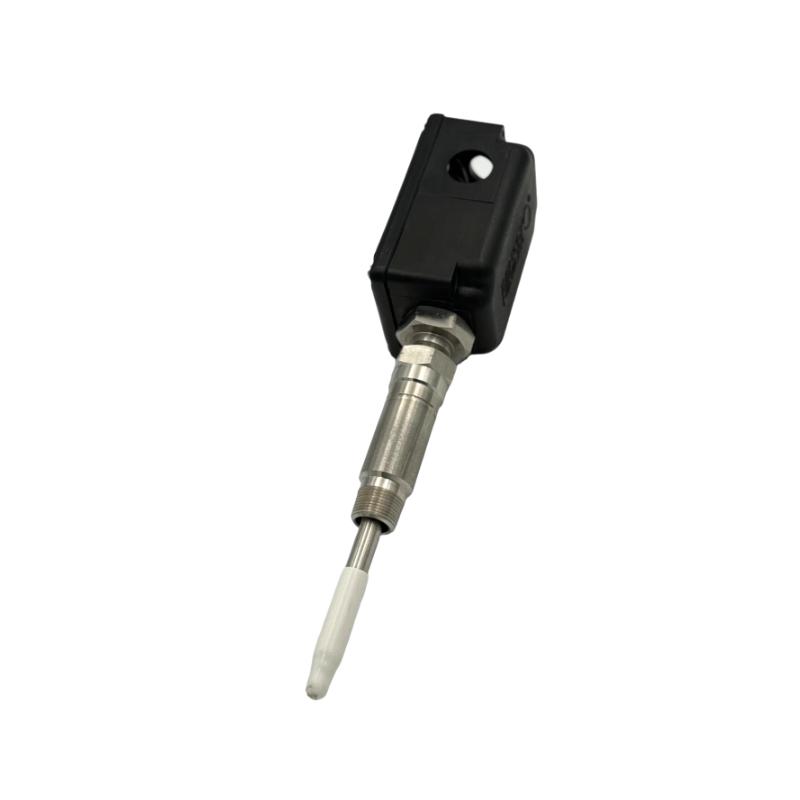

Q1: What is the primary function of this proximity probe housing assembly?
A1: The primary function of this housing assembly is to provide a stable and precisely aligned mechanical mounting structure for proximity probes used in vibration and shaft displacement monitoring systems. It ensures that the probe maintains a fixed and repeatable position relative to the rotating shaft, which is essential for accurate signal measurement. In high-vibration industrial environments, this stability prevents signal drift and ensures consistent data quality over long operating periods.

Q2: Why is mechanical rigidity important in proximity probe installations?
A2: Mechanical rigidity is critical because proximity probes depend on a constant and precisely controlled gap between the probe tip and the shaft surface. Any mechanical movement, vibration-induced displacement, or loosening of the mounting structure can directly affect measurement accuracy. This housing assembly provides a rigid support structure that minimizes deformation and vibration influence, ensuring long-term stability of the probe position.

Q3: How does this component contribute to vibration monitoring systems?
A3: In vibration monitoring systems, this housing assembly serves as the mechanical interface that holds the probe in the correct position to measure shaft vibration and displacement. By maintaining stable alignment, it ensures that the monitoring system receives accurate and consistent dynamic data. This allows early detection of mechanical issues such as imbalance, misalignment, bearing wear, or rotor instability, which are essential for predictive maintenance strategies.

Q4: Is this housing suitable for harsh industrial environments?
A4: Yes, it is designed for demanding industrial environments including power generation, petrochemical plants, and heavy industrial machinery. It can withstand high levels of vibration, temperature variation, and exposure to contaminants such as oil mist, dust, and moisture. Its robust metal construction and shielding design also help reduce electromagnetic interference, ensuring reliable signal performance in electrically noisy environments.

Q5: What are the key installation requirements?
A5: Installation requires the housing to be securely mounted on a stable machine structure to prevent movement during operation. Proper alignment between the probe and the rotating shaft must be maintained to ensure correct measurement gap conditions. Installation should follow recommended torque values and alignment specifications. Any deviation in positioning or insufficient tightening can negatively affect measurement accuracy and system reliability.

Q6: What can cause unstable or inaccurate measurement signals?
A6: Signal instability can be caused by mechanical loosening, improper probe alignment, excessive vibration, thermal expansion effects, or structural deformation. Electrical factors such as poor grounding or electromagnetic interference may also contribute. A comprehensive inspection of both mechanical installation and electrical conditions is necessary to identify and correct the root cause of unstable signals.

Q7: Where is this component typically used?
A7: This housing assembly is commonly used in critical rotating machinery such as steam turbines, gas turbines, centrifugal compressors, industrial pumps, fans, and large gear-driven systems. These applications require continuous condition monitoring to detect early signs of mechanical degradation and ensure safe, reliable operation in demanding industrial environments.

Q8: How can long-term reliability of this assembly be improved?
A8: Long-term reliability can be improved through regular inspection of mechanical fasteners, periodic verification of probe alignment, and maintaining a clean and stable installation environment. It is also important to monitor for signs of wear or loosening during scheduled maintenance. Proper calibration and avoidance of excessive vibration or contamination further help ensure stable and long-lasting performance.
