Technical Specifications

FAQ

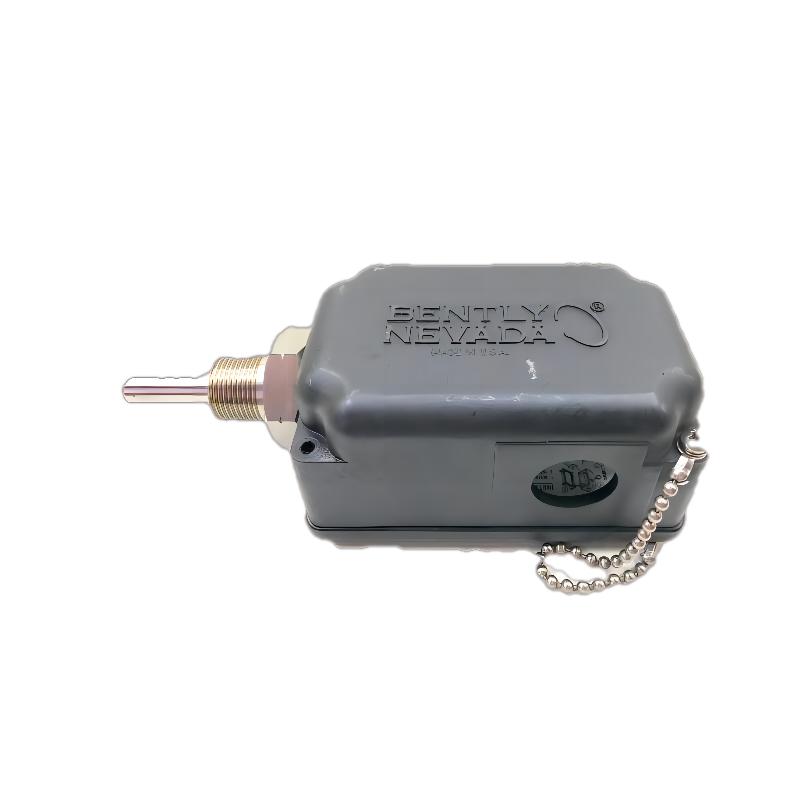

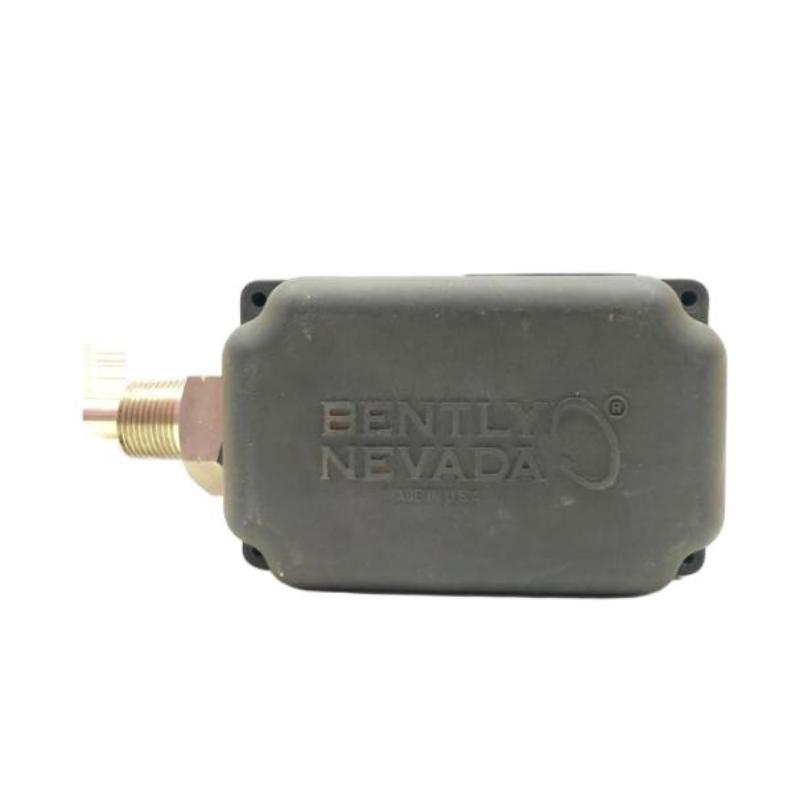

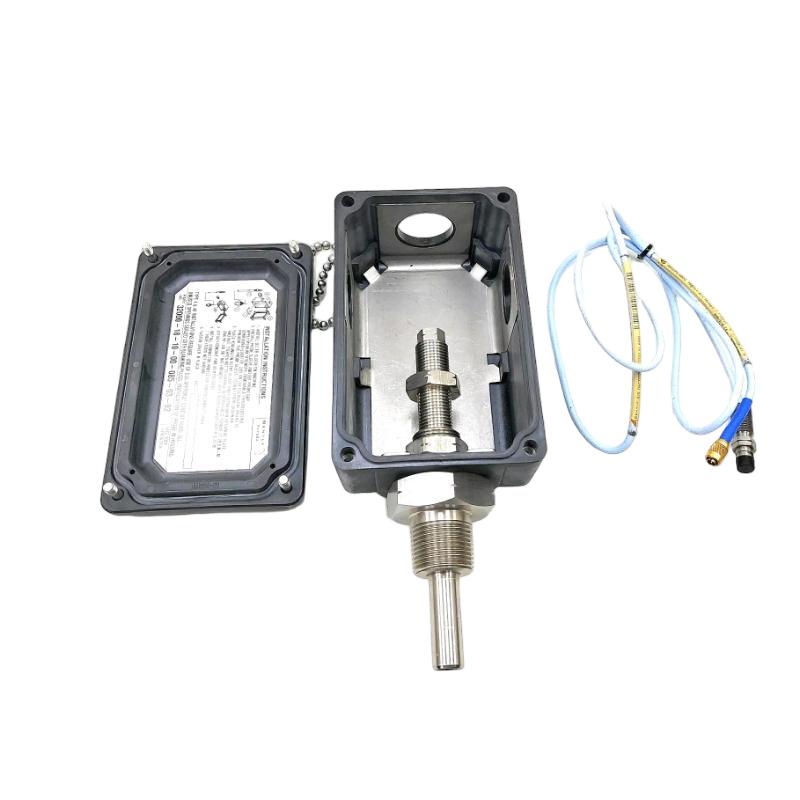

Q1: What is the main function of this proximity probe housing assembly?
A1: The main function of this housing assembly is to provide a stable and accurately aligned mechanical mounting structure for proximity probes used in vibration and shaft displacement monitoring systems. It ensures that the probe maintains a fixed position relative to the rotating shaft during continuous operation. This stability is essential for maintaining reliable signal output and ensuring measurement consistency in industrial environments.

Q2: Why is mechanical rigidity important in this component?
A2: Mechanical rigidity is important because proximity probes rely on a precise and stable gap between the probe tip and the shaft surface. Any mechanical movement, vibration-induced shift, or structural deformation can lead to signal drift or measurement errors. The housing assembly is designed with high-strength construction to minimize these effects and maintain consistent measurement conditions.

Q3: How does this component contribute to machine condition monitoring?
A3: In condition monitoring systems, this housing assembly ensures that vibration and shaft displacement data are collected under stable mechanical conditions. By maintaining proper probe alignment, it allows monitoring systems to detect early signs of mechanical issues such as imbalance, misalignment, bearing wear, and rotor instability, supporting predictive maintenance strategies.

Q4: Is this assembly suitable for harsh industrial environments?
A4: Yes, it is designed for demanding industrial environments such as power generation plants, petrochemical facilities, and heavy industrial machinery. It can withstand high vibration levels, temperature variations, and exposure to contaminants such as dust, oil mist, and moisture. Its robust metal structure also provides resistance against long-term mechanical stress.

Q5: What are the key installation requirements?
A5: Installation requires secure fastening of the assembly to a stable machine structure to prevent movement during operation. Proper alignment between the probe and the rotating shaft must be ensured to maintain correct measurement conditions. Installation should follow specified torque values and alignment guidelines, as improper installation can affect measurement accuracy and system reliability.

Q6: What can cause unstable or inaccurate signals?
A6: Signal instability can be caused by mechanical loosening, incorrect probe alignment, excessive vibration, thermal expansion effects, or poor grounding. Additionally, electromagnetic interference from nearby electrical equipment may also impact signal quality. A combined mechanical and electrical inspection is required to identify the root cause.

Q7: Where is this component typically used?
A7: This housing assembly is commonly used in critical rotating machinery such as steam turbines, gas turbines, centrifugal compressors, industrial pumps, fans, and large gear-driven systems. These machines require continuous condition monitoring to ensure safe operation and early detection of mechanical degradation.

Q8: How can long-term reliability be maintained?
A8: Long-term reliability can be maintained through regular inspection of mounting integrity, verification of probe alignment, and ensuring that the installation environment remains clean and stable. Periodic maintenance should include checking for loosening, wear, or misalignment, while also ensuring that operating conditions remain within design limits.
