Technical Specifications

FAQ

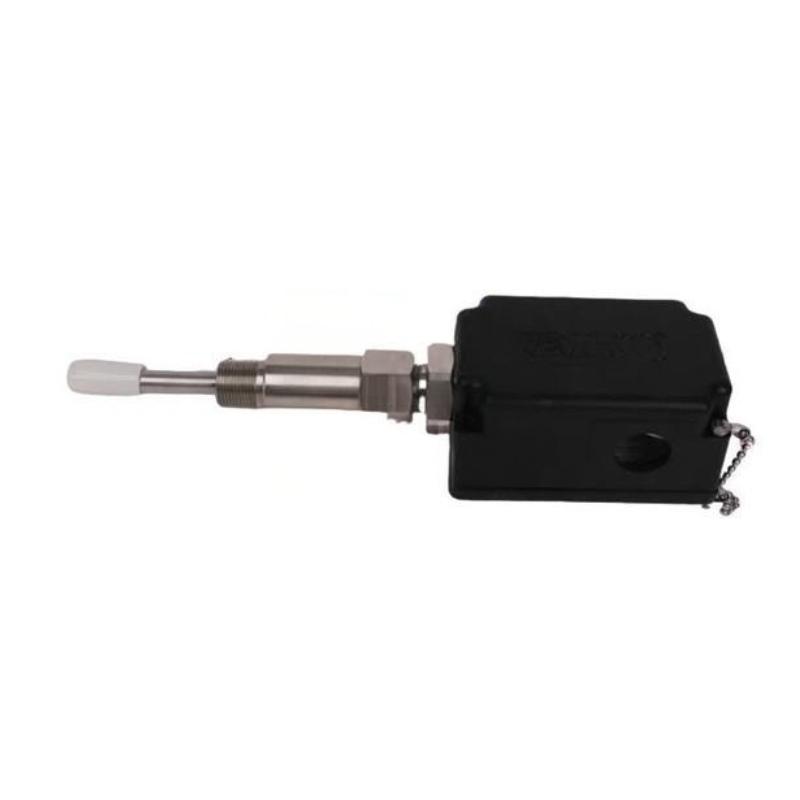

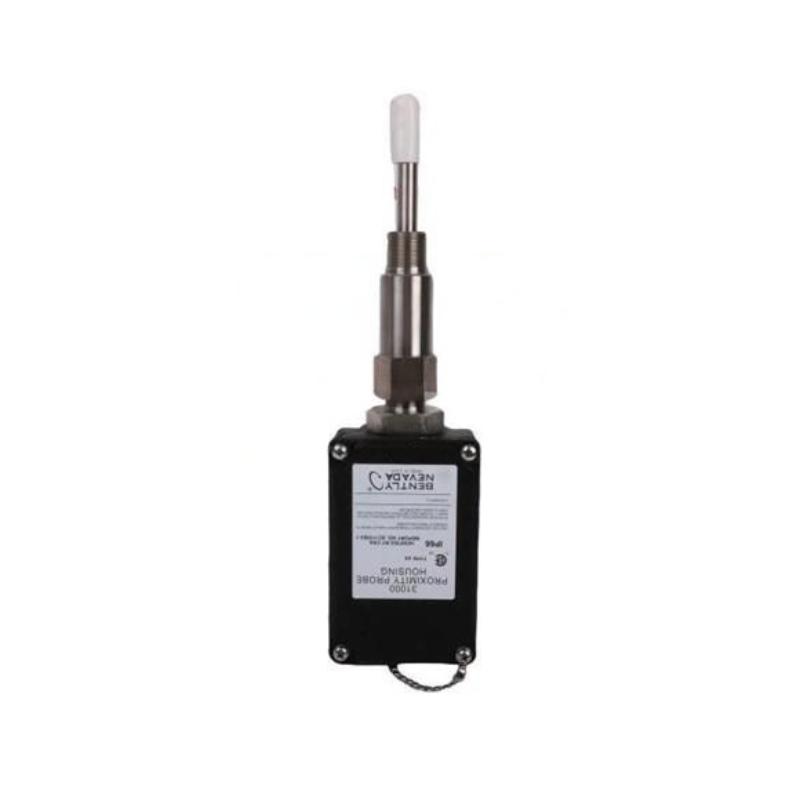

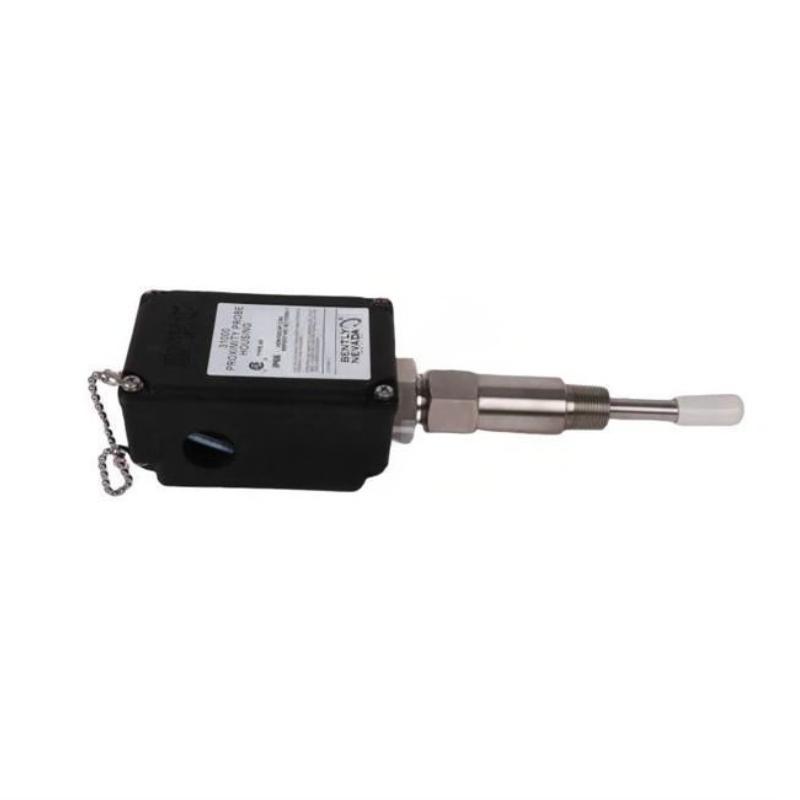

Q1: What is the main function of the Bently Nevada 32000-29-10-00-220-00-02 Proximity Probe Housing Assembly?
A1: The primary function of this housing assembly is to provide a stable and secure mechanical mounting structure for proximity probes used in rotating machinery monitoring systems. It ensures that the probe remains accurately positioned relative to the target surface, such as a rotating shaft, while also protecting it from harsh environmental and mechanical conditions. In addition, it supports reliable signal routing, which helps maintain measurement stability over long-term operation.

Q2: Where is this housing assembly typically used?
A2: This component is commonly used in condition monitoring systems for rotating equipment such as steam turbines, gas turbines, compressors, pumps, motors, and gearboxes. These machines operate under demanding conditions involving high speed, vibration, and temperature variation, making stable probe installation essential for accurate vibration and displacement measurement.

Q3: Why is the housing assembly important for measurement accuracy?
A3: The accuracy of a proximity probe system depends on maintaining a consistent and precise gap between the probe tip and the monitored shaft. Any movement, misalignment, or mechanical instability can directly affect the output signal. This housing assembly provides rigid structural support that minimizes such variations, ensuring consistent probe positioning and improving the accuracy and repeatability of measurement data.

Q4: What problems can occur if the housing assembly is incorrectly installed?
A4: Improper installation can lead to incorrect probe positioning, unstable signal output, measurement drift, and false alarms in monitoring systems. In more severe cases, excessive misalignment may cause physical contact risk between the probe and rotating components, potentially damaging the probe or compromising machinery protection systems. Long-term misalignment can also reduce confidence in condition monitoring data.

Q5: Does this housing assembly require regular maintenance?
A5: Yes, periodic maintenance is recommended to ensure reliable operation. Maintenance activities typically include checking mounting tightness, verifying probe alignment, inspecting for corrosion or wear, and ensuring that sealing components remain intact. Regular inspection helps prevent gradual mechanical loosening or environmental contamination that could affect measurement performance.

Q6: What environmental factors can affect its performance?
A6: Although designed for industrial environments, performance can still be influenced by conditions such as continuous vibration, temperature fluctuations, oil mist exposure, dust accumulation, and corrosive atmospheres. Over time, these factors may affect mechanical stability, sealing integrity, or alignment accuracy if proper maintenance is not performed.

Q7: How can long-term reliability be improved?
A7: Long-term reliability can be improved by ensuring precise installation alignment, applying correct torque during mounting, and using appropriate locking methods to prevent loosening. Additionally, scheduled inspections, vibration trend monitoring, and maintaining a clean installation environment all contribute to stable long-term performance and measurement consistency.

Q8: What role does this component play in a complete Bently Nevada monitoring system?
A8: In a complete Bently Nevada condition monitoring system, the housing assembly serves as the mechanical foundation for the proximity probe. While the probe performs the actual measurement of vibration and shaft displacement, the housing ensures correct positioning and physical protection. Without a stable housing assembly, even high-precision electronic systems cannot deliver reliable data, making it a critical structural component of the overall monitoring architecture.
