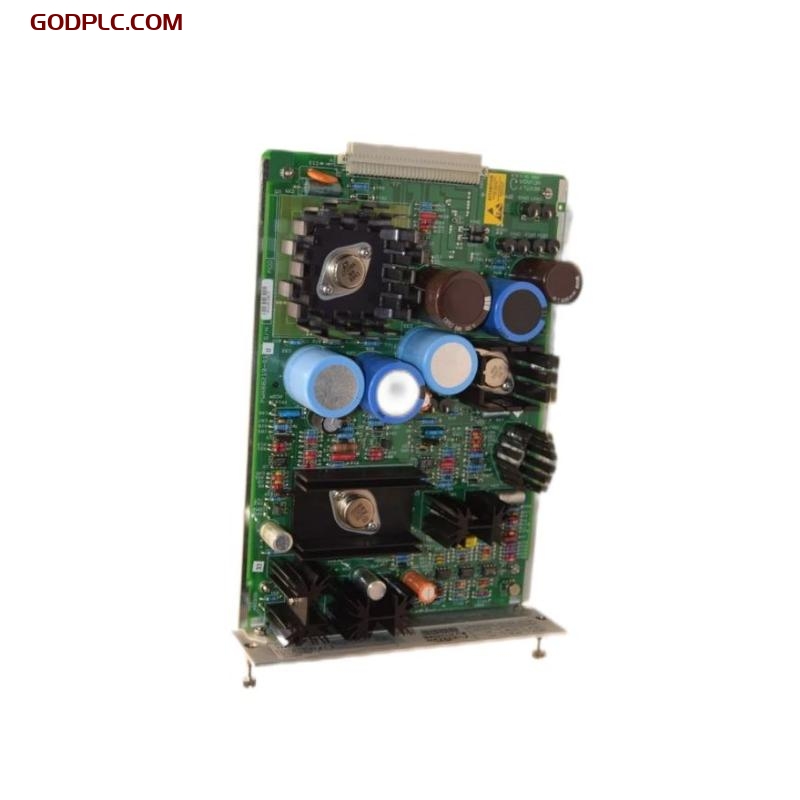

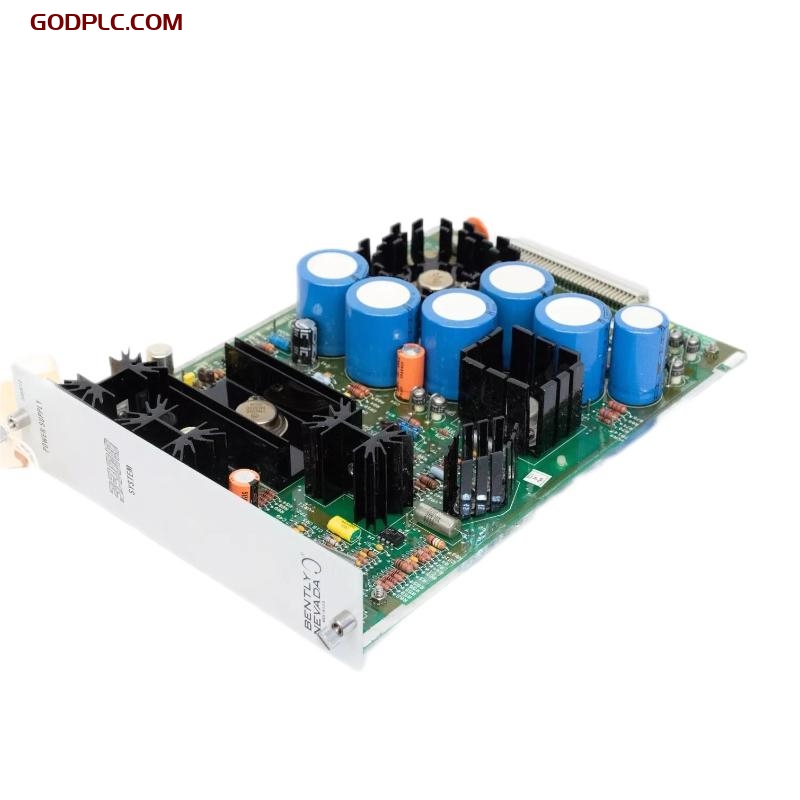

Bently Nevada 3300/12-01-20-00 AC Power Supply
Product Overview
The Bently Nevada 3300/12-01-20-00 AC Power Supply is designed to provide reliable AC power for the 3300 series vibration monitoring systems. This power supply ensures the consistent operation of vibration probes, proximity sensors, and other associated measurement tools used in industrial machinery monitoring. The AC power module is engineered to deliver stable voltage to the 3300 system, supporting high-precision monitoring in critical applications. Its robust design and high efficiency make it a key component for industries such as power generation, oil and gas, and manufacturing, where uptime and equipment reliability are paramount.
Key Features
-
Stable AC Power – Supplies stable AC power to the 3300 vibration monitoring system, ensuring the continuous operation of connected sensors and monitoring equipment
-
Efficient Power Conversion – Provides high-efficiency conversion, reducing energy consumption and improving the overall system’s operational cost-effectiveness
-
Enhanced Durability – Built to endure harsh industrial environments, providing long-lasting performance in demanding conditions with minimal maintenance requirements
-
Compact and Space-Saving – Space-efficient design that integrates seamlessly into existing control panels and machinery setups without requiring excessive space
-
Diagnostic Features – Equipped with visual status indicators to monitor power health, facilitating easy fault detection and troubleshooting for system operators
-
Versatile Integration – Compatible with the full range of Bently Nevada 3300 series systems, ensuring a smooth integration into vibration monitoring and machinery protection setups
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 57 x 203 x 330 mm |
| Weight | 1 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Power Consumption | Approx. 10 W |
| Output Voltage | 24 VDC (regulated) |
| Output Current | 2 A max |
| Protection | Short-circuit, overload, and surge protection |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -40°C to +70°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
| Protection | IP20 (when installed in an enclosure) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Bently Nevada 3300 Series |
| Configuration Tools | Bently Nevada System 1, 3500 Monitoring System |
Industry Applications
-
Power Generation – Provides stable AC power to vibration monitoring systems in turbines, generators, and other critical equipment to prevent downtime and ensure safe, efficient operation
-
Oil & Gas – Supplies power to vibration sensors used in drilling rigs, compressors, and other mission-critical equipment in the oil and gas industry, where system reliability is critical
-
Manufacturing – Supports vibration monitoring in high-speed manufacturing machines, motors, and pumps, helping to detect potential issues early and reduce unplanned shutdowns
-
Chemical Processing – Powers vibration monitoring systems in chemical plants to ensure pumps, reactors, and compressors are operating optimally, reducing the risk of process failures
-
Water & Wastewater – Provides reliable AC power for vibration monitoring on pumps and motors in water treatment plants, ensuring system reliability and reducing operational costs
The Bently Nevada 3300/12-01-20-00 AC Power Supply module is an essential component in ensuring the stable and continuous operation of Bently Nevada’s 3300 series vibration monitoring systems. Its reliable performance, energy efficiency, and compatibility with various industrial applications make it a key piece in maintaining uptime and reducing maintenance costs. Whether used in power generation, oil and gas, manufacturing, or chemical processing, the 3300/12-01-20-00 power supply ensures that your monitoring system performs reliably in critical environments.
