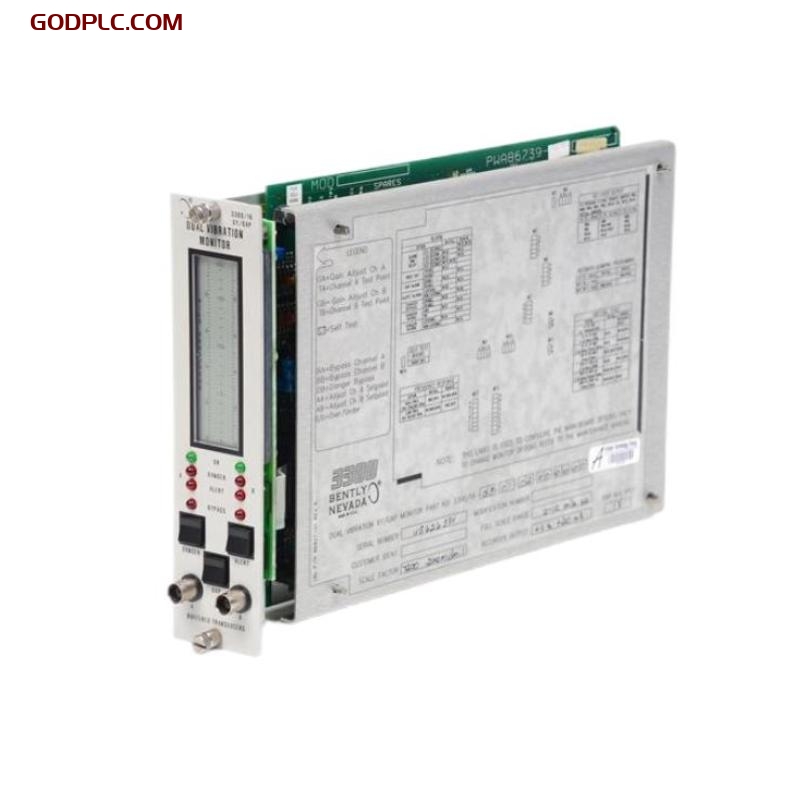

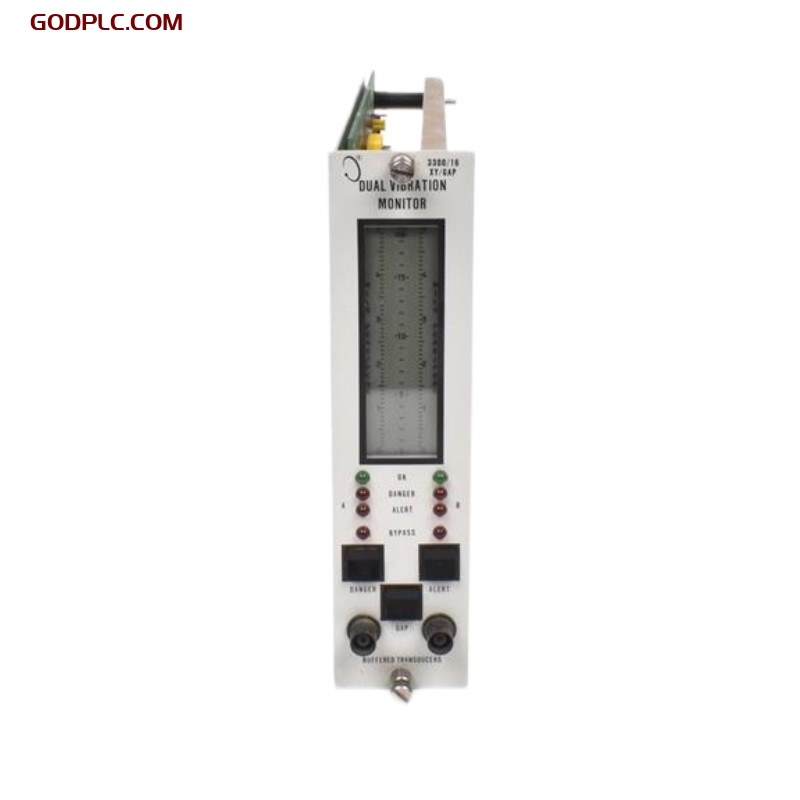

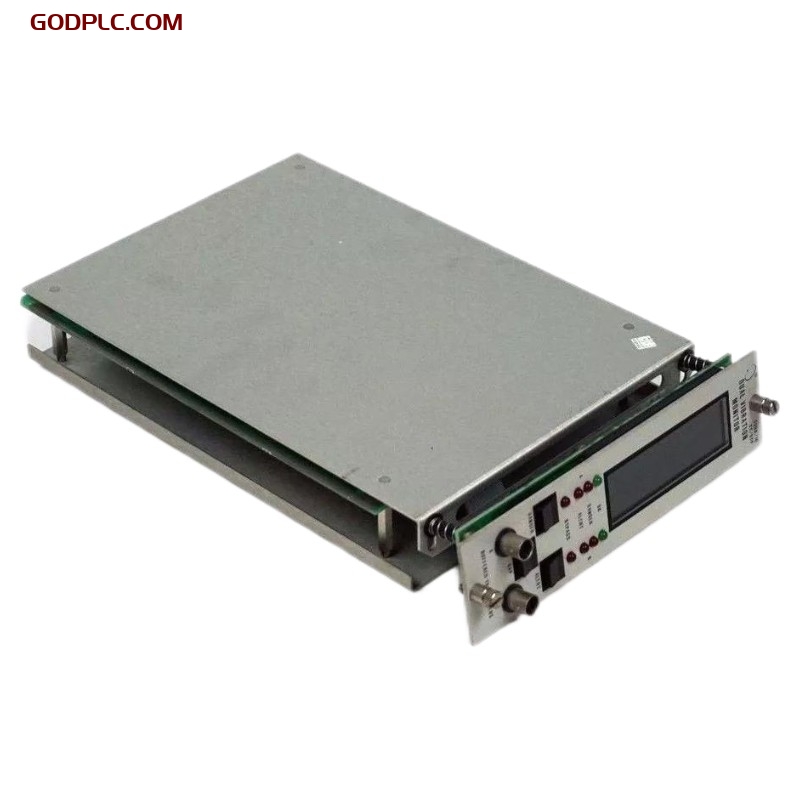

Bently Nevada 3300/16-01-02-00-00-00-00 XY/Gap Dual Vibration Monitor
Product Overview
The Bently Nevada 3300/16-01-02-00-00-00-00 XY/Gap Dual Vibration Monitor is a high-precision device designed for continuous monitoring of machine vibration and displacement in industrial applications. This monitor integrates dual-axis (XY) and gap measurement technologies to provide detailed insights into machinery health. It is particularly useful in monitoring rotating machinery such as turbines, motors, and pumps, where precise vibration analysis is critical for preventing failure and ensuring optimal performance. With advanced diagnostic capabilities, the 3300/16-01-02-00-00-00-00 is ideal for applications in industries like power generation, oil and gas, and manufacturing.
Key Features
-
Dual Vibration Monitoring – Provides both XY vibration monitoring and gap measurements, offering a comprehensive view of machine health and performance
-
High Accuracy – Offers high-precision vibration and gap measurement, ensuring accurate detection of faults, misalignment, and imbalance in rotating machinery
-
Real-Time Data – Delivers real-time monitoring of machinery, enabling immediate response to any changes in operational parameters that could indicate a potential problem
-
Advanced Diagnostics – Provides detailed diagnostics to help predict failures and optimize maintenance schedules, reducing downtime and extending machinery life
-
Easy Integration – Designed to integrate seamlessly with Bently Nevada 3300 series systems, providing an efficient solution for vibration monitoring in industrial control setups
-
User-Friendly Interface – Equipped with a simple, intuitive interface for easy setup, operation, and monitoring of machine health data
-
Robust Design – Built to withstand harsh industrial environments, ensuring reliable operation even in demanding conditions
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Vertical size 83 mm |
| Weight | 1 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 VDC (nominal) |
| Power Consumption | Approx. 10 W |
| Output Voltage | 24 VDC (regulated) |
| Output Current | 1 A max |
| Protection | Overload, short-circuit, and surge protection |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -40°C to +70°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
| Protection | IP20 (when installed in an enclosure) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Bently Nevada 3300 Series |
| Configuration Tools | Bently Nevada System 1, 3500 Monitoring System |
Industry Applications
-
Power Generation – Monitors vibration and gap measurements of turbines, generators, and motors, helping to identify issues such as imbalance, misalignment, or bearing wear in real-time
-
Oil & Gas – Ensures reliable operation of offshore and onshore drilling rigs, compressors, and pumps by continuously monitoring vibration levels and detecting early signs of equipment failure
-
Manufacturing – Used to monitor the health of high-speed rotating machinery in manufacturing plants, improving predictive maintenance capabilities and reducing unplanned downtime
-
Chemical Processing – Assists in monitoring pumps, reactors, and compressors in chemical plants, providing critical data to prevent equipment failure and optimize production processes
-
Water & Wastewater – Monitors pumps and motors in water treatment plants, ensuring proper functioning and extending the operational life of critical equipment
The Bently Nevada 3300/16-01-02-00-00-00-00 XY/Gap Dual Vibration Monitor offers advanced vibration monitoring capabilities for accurate and reliable machine health assessments. Its dual-axis vibration monitoring and gap measurement capabilities make it an essential tool for industries where rotating machinery performance is crucial. With real-time data collection, advanced diagnostics, and robust design, this monitor helps reduce downtime, prevent costly repairs, and optimize the performance of machinery in demanding industrial environments.
