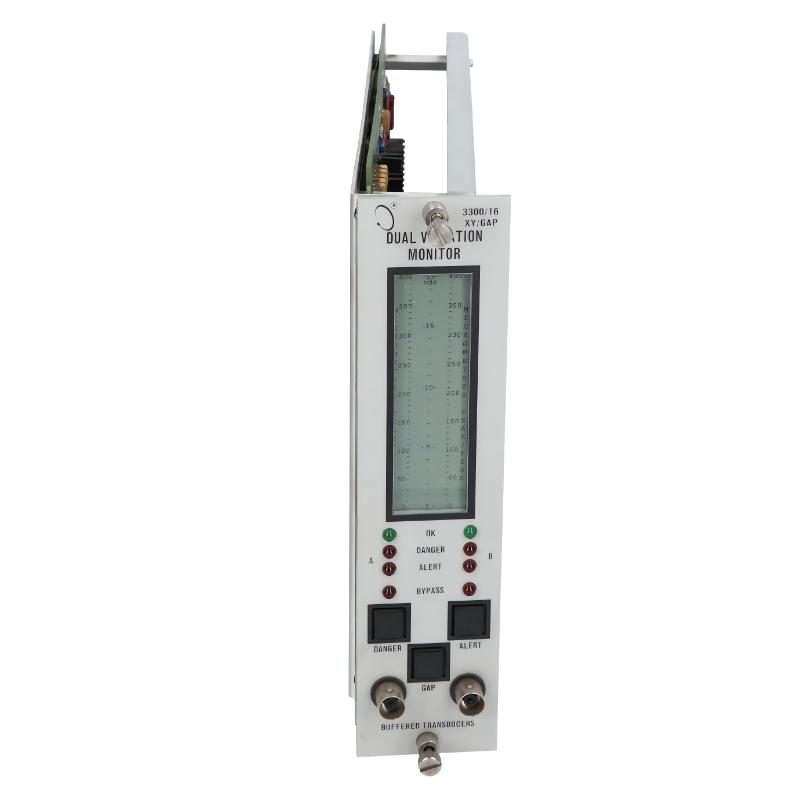

Q1: What is the main function of the Bently Nevada 3300/16 XY/Gap Dual Vibration Monitor?
A1: The 3300/16 module is designed to simultaneously monitor X-Y directional vibration and probe gap signals in rotating machinery. It continuously acquires and processes two independent channels of data, providing essential inputs for machinery protection and condition monitoring systems. This enables accurate assessment of machine health and supports automatic protection actions when abnormal conditions occur.

Q2: Where is the 3300/16 typically used?
A2: This module is widely used in rotating machinery applications such as steam turbines, gas turbines, centrifugal compressors, pumps, motors, and gearboxes. It is particularly suitable for systems requiring simultaneous monitoring of both vibration and shaft position (gap) for comprehensive machine protection.

Q3: What do XY vibration and Gap signals represent?
A3: XY vibration represents the dynamic motion of the machine shaft in two perpendicular directions, typically indicating vibration amplitude and behavior. The Gap signal represents the static distance between the proximity probe and the shaft surface, which is used to monitor shaft position and detect changes such as thermal growth or mechanical shift.

Q4: What are common symptoms of a module failure?
A4: Common symptoms include unstable or missing channel outputs, incorrect vibration or gap readings, failure to trigger alarms, inconsistent signal behavior, or diagnostic fault indications. In severe cases, the module may stop responding to sensor inputs entirely.

Q5: How can proper operation of the 3300/16 be verified?
A5: Proper operation can be verified by checking front-panel indicators, reviewing real-time vibration and gap trends, confirming alarm functionality, and using system diagnostics. Stable dual-channel output and consistent readings under normal operating conditions indicate correct operation.

Q6: What factors can cause inaccurate measurement data?
A6: Inaccurate data may be caused by sensor issues, loose wiring connections, grounding problems, electromagnetic interference, incorrect configuration settings, or internal module degradation. A full system-level inspection is usually required to identify the root cause.

Q7: Is the 3300/16 designed for continuous operation?
A7: Yes, the module is designed for 24/7 continuous industrial operation. It is built to operate reliably in demanding environments, provided that proper installation, stable power supply, and routine maintenance practices are followed.

Q8: How can long-term reliability of the module be improved?
A8: Reliability can be improved by ensuring stable electrical grounding, secure wiring connections, proper cabinet ventilation, and minimizing electromagnetic interference. Regular inspections, preventive maintenance, and periodic functional testing also help extend service life and ensure stable performance.
