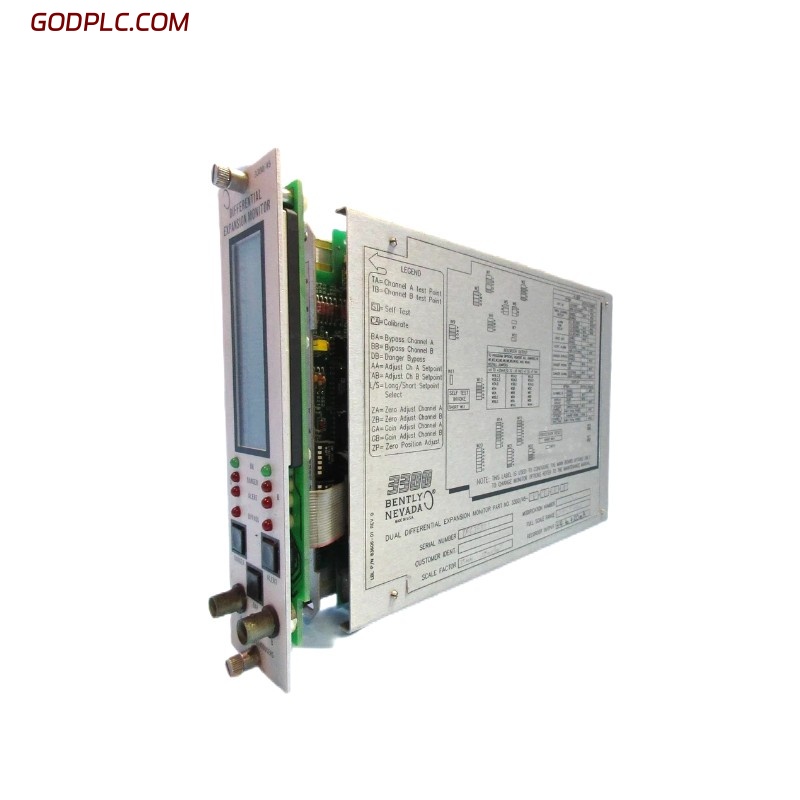

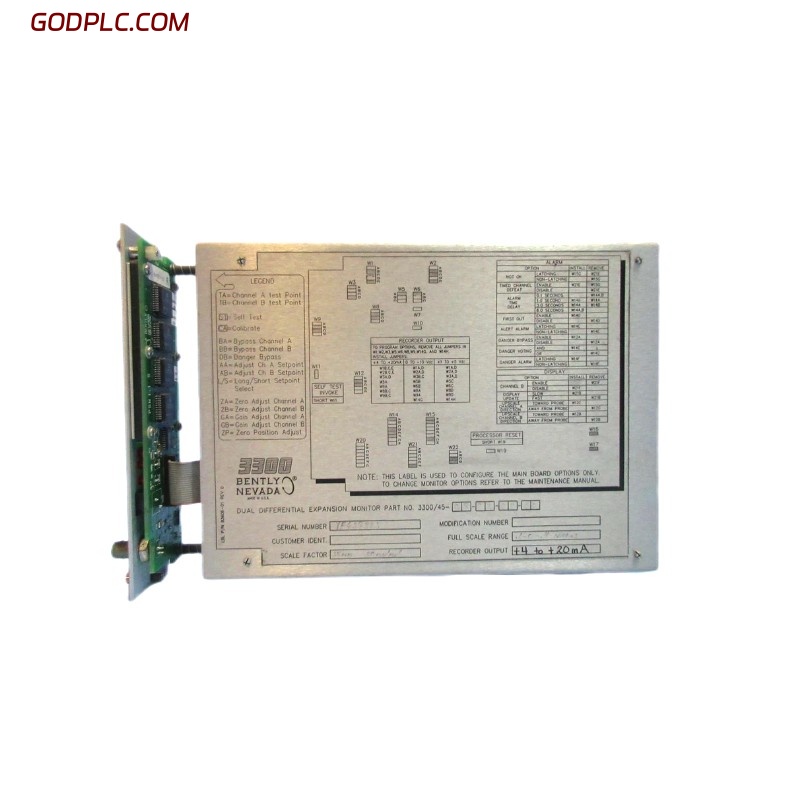

Bently Nevada 3300/45 Dual Differential Expansion Monitor
Product Overview
The Bently Nevada 3300/45 Dual Differential Expansion Monitor is a rack-mounted module designed to measure the relative axial expansion between a turbine shaft and its casing. It forms a key part of the 3300 series machinery protection system, providing critical information during thermal expansion and startup conditions. With two independent channels, the module supports both redundant and comparative measurement strategies, enabling precise and reliable monitoring of differential expansion in large rotating equipment.
Key Features
-
Dual-Channel Differential Expansion Monitoring
-
Independent Alert and Danger Setpoints per Channel
-
Transmitter Outputs (4–20 mA) for System Integration
-

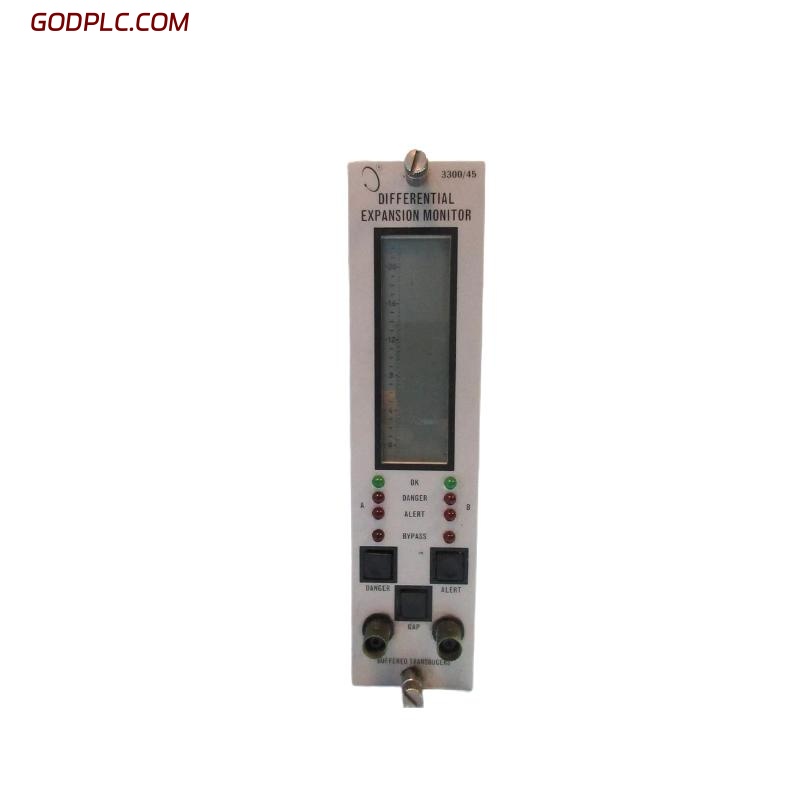

LED Indicators for OK, Alert, and Danger States
-
Conforms to API 670 Standards
-
Seamless Integration with 3300 Rack-Based Systems
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Vertical size 83 mm |
| Weight | 1 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 2 independent channels |
| Sensor Compatibility | Works with proximity probes (e.g., 3300 XL series) |
| Input Signal Range | -24 V to -10 V DC bias with ±2 mm dynamic range |
| Measuring Range | Up to ±2 mm differential axial movement |
| Accuracy | ±0.05 mm or ±5% of full scale (whichever is greater) |
| Output Signal | 4–20 mA current loop (per channel) |
| Relay Outputs | OK, Alert, and Danger (per channel) |
| Power Source | Supplied through 3300 rack system |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +65°C |
| Storage Temp | -40°C to +85°C |
| Relative Humidity | 5%–95%, non-condensing |
| Compliance | API 670 compliant |
3.4 System Compatibility
| Item | Specification |
|---|---|
| System Platform | Bently Nevada 3300 Series Rack |
| Configuration Tool | Bently Nevada Configuration Software |
| Installation | Plug-in module for 3300 rack chassis |
Industry Applications
-
Thermal Power Plants – Monitoring steam turbine shaft expansion
-
Oil & Gas Facilities – Managing thermal growth in large compressors
-
Petrochemical Plants – Preventing misalignment due to heat-induced expansion
-
Steel Processing – Monitoring axial displacement during startup cycles
-
Heavy Industrial Machinery – Ensuring mechanical integrity of rotating equipment
The Bently Nevada 3300/45 Dual Differential Expansion Monitor ensures continuous, high-accuracy monitoring of axial expansion conditions, supporting proactive maintenance and protecting machinery from thermal growth-related faults.
Bently Nevada 3300/45 Dual Differential Pressure Expansion Monitor is in stock. Please contact us for a quick quote and competitive pricing.
