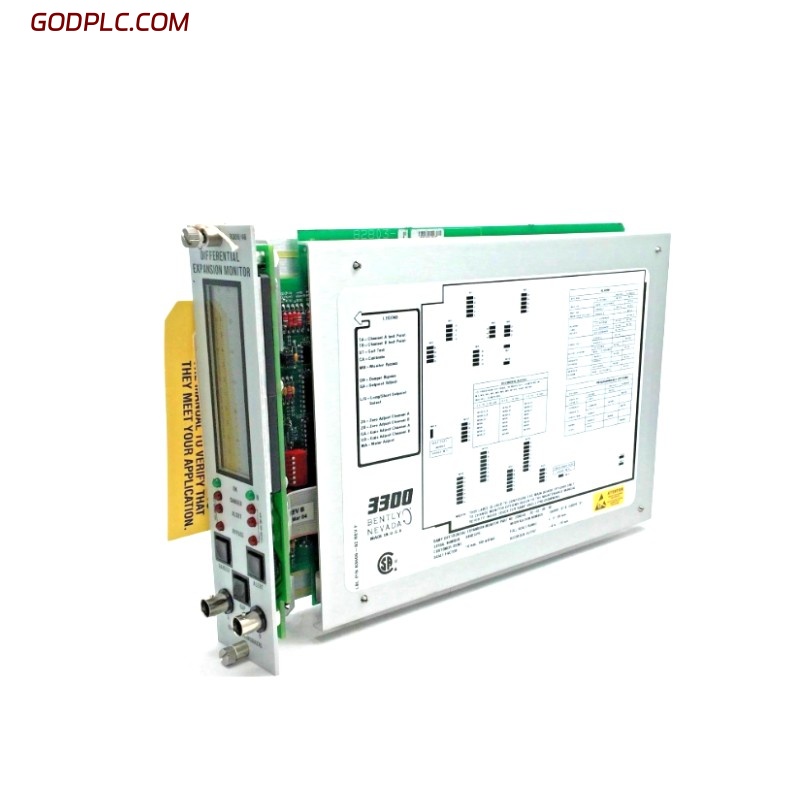

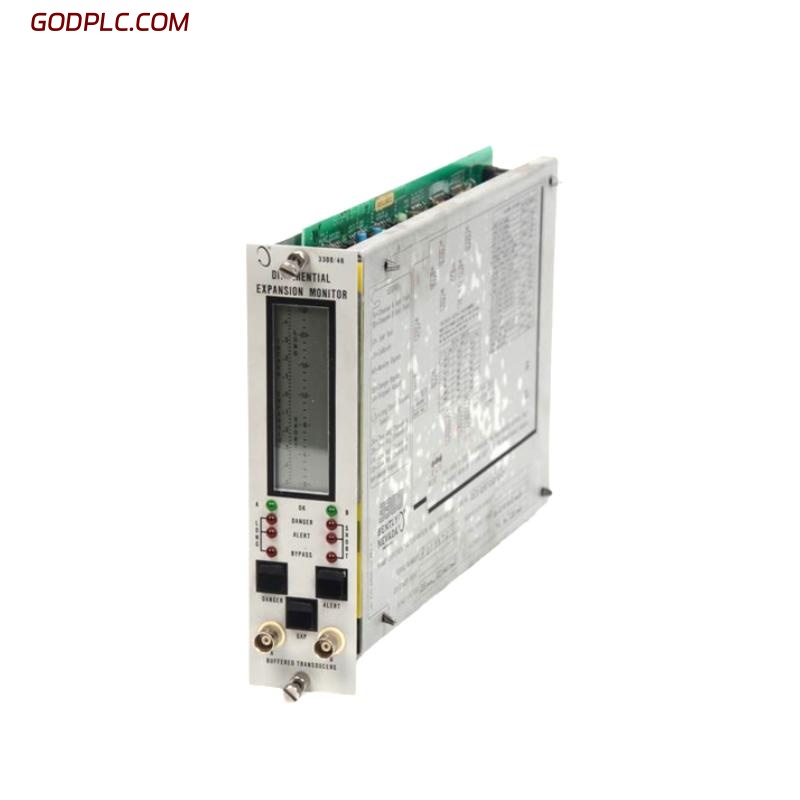

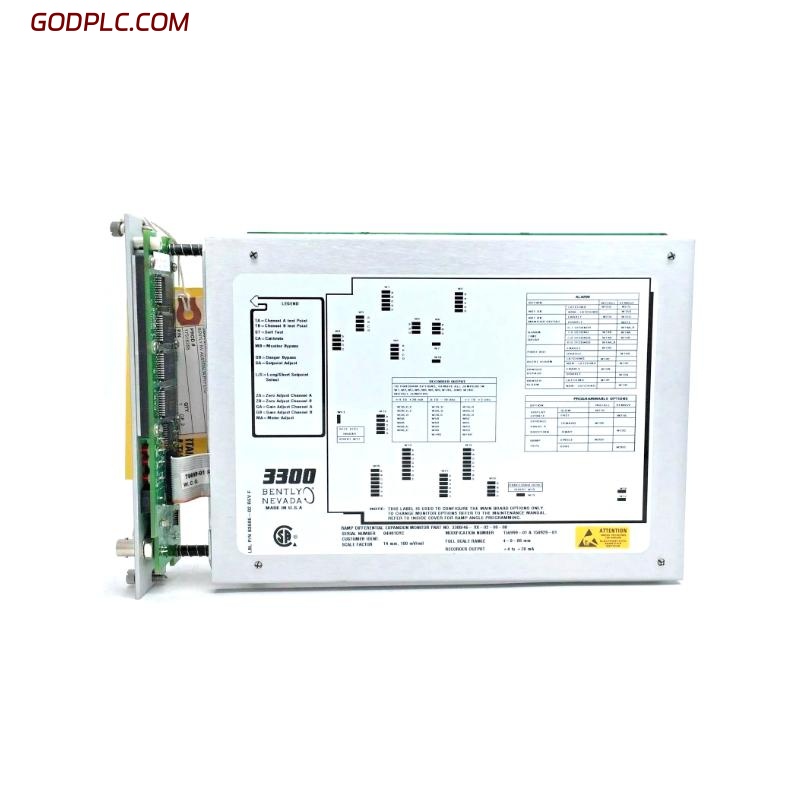

Bently Nevada 3300/46-08-03-01-00 Differential Expansion Monitor
Product Overview
The Bently Nevada 3300/46-08-03-01-00 Differential Expansion Monitor is part of the trusted 3300 Series of machinery protection modules, engineered for detecting axial movement (differential expansion) between a rotating shaft and its casing. This function is crucial in large steam turbines, gas turbines, and similar high-temperature rotating machinery, where unmonitored thermal growth can lead to severe equipment damage. The module delivers real-time measurement, configurable alarms, and relay outputs to ensure operational safety and asset protection.
Key Features
-
Single-channel differential expansion monitoring
-
Designed for use with 3300 XL proximity transducer systems
-
Dual-setpoint alarm functionality: Alert and Danger
-
OK relay for sensor and signal validation
-
Front-panel LEDs for status indication
-
Field-configurable settings for measurement scaling and alarms
-
Fully rack-integrated into 3300 Series systems
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Vertical size 83 mm |
| Weight | 1 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Type | Non-contact proximity probe input via XL Proximitor® |
| Input Range | -24 V to -10 V bias, ±2 mm dynamic range (typical) |
| Output Signal | 4–20 mA proportional to differential expansion |
| Accuracy | ±0.05 mm or ±5% of full-scale (whichever is greater) |
| Alarm Setpoints | Two programmable levels: Alert and Danger |
| Relay Outputs | Alert, Danger (SPDT), and OK relay |
| Relay Contact Rating | 5 A @ 24 V DC or 120 V AC resistive load |
| Power Supply | Powered via 3300 Series rack system |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +65°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH, non-condensing |
| Vibration | 0–5 g, 10–2000 Hz |
3.4 System Compatibility
| Item | Specification |
|---|---|
| System Platform | 3300 Series Rack |
| Installation | Rear rack insertion (modular card slot) |
| Configuration | DIP switches or configuration tools |
Industry Applications
-
Power Generation – Steam and gas turbine thermal expansion monitoring
-
Oil & Gas – Equipment protection in compressor trains and expanders
-
Petrochemical Facilities – Shaft alignment assurance under variable load
-
Industrial Turbomachinery – Monitoring critical expansion clearances
-
Heavy Manufacturing – High-value rotating assets requiring continuous protection
The Bently Nevada 3300/46-08-03-01-00 Differential Expansion Monitor ensures the integrity and performance of critical rotating assets by detecting axial shifts caused by thermal growth. As part of a comprehensive protection strategy, it supports reliability, minimizes unplanned outages, and extends equipment lifespan.
Bently Nevada 3300/46-08-03-01-00 Differential Swelling Monitor is in stock. Please contact us for a quick quote and competitive pricing.
