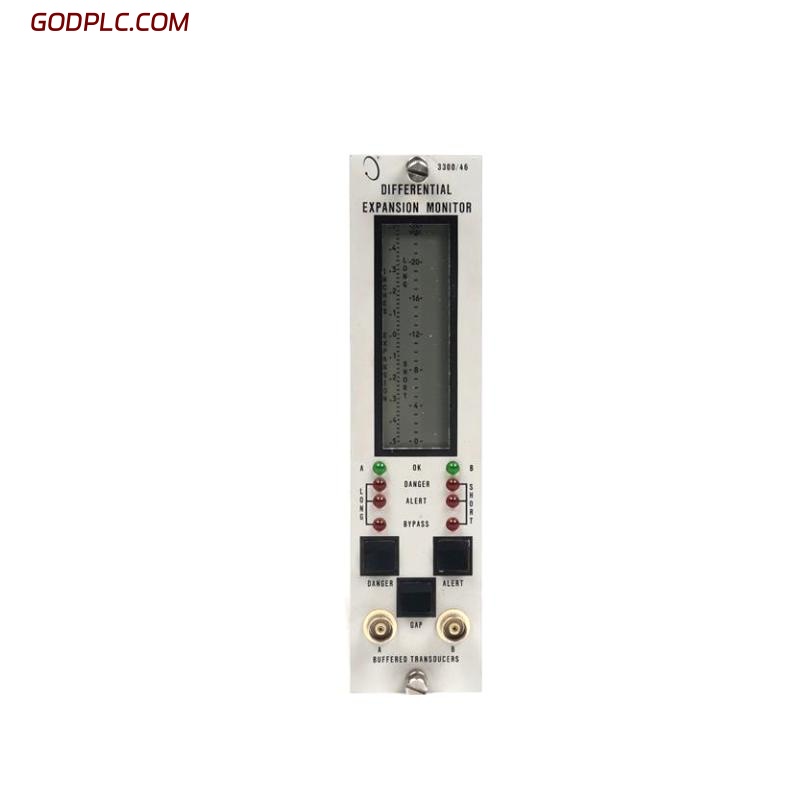

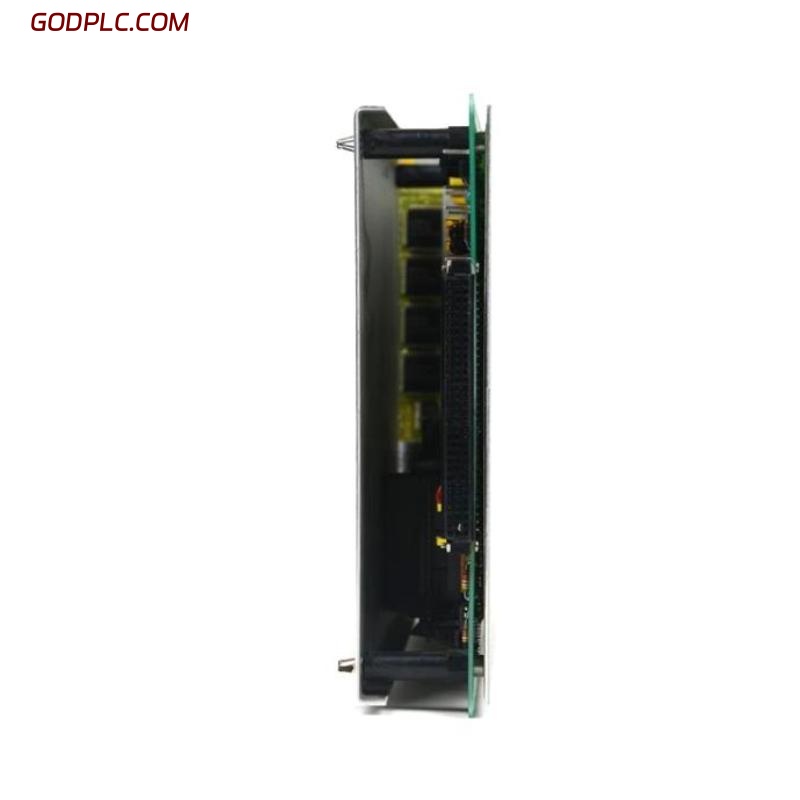

Bently Nevada 3300/46 Differential Expansion Monitor
Product Overview
The Bently Nevada 3300/46 Differential Expansion Monitor is an essential module in the 3300 Series machinery protection system, engineered to monitor the axial differential expansion (DE) between a rotating shaft and its casing. This module is particularly critical for large steam and gas turbines, compressors, and other high-temperature rotating equipment, where thermal growth must be precisely monitored to prevent mechanical damage and ensure optimal alignment during startup, operation, and shutdown.
Key Features
-
Single-channel axial differential expansion measurement
-
Compatible with 3300 XL Proximity Transducer Systems
-
OK, Alert, and Danger relay outputs for reliable protection
-
Configurable 4–20 mA current output
-
Meets API 670 standards for machinery protection systems
-
LED indicators for status visualization
-
Designed for full integration into 3300 Series racks
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Vertical size 83 mm |
| Weight | 1 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Channel Type | Single-channel measurement |
| Input Signal | From 3300 XL Proximity Probe and Extension Cable |
| Measurement Range | ±2 mm dynamic range (typical), -24 V to -10 V DC bias |
| Output Signal | Isolated 4–20 mA proportional to measured DE |
| Accuracy | ±0.05 mm or ±5% of full-scale range |
| Relay Outputs | OK, Alert, and Danger (SPDT relays) |
| Power Requirements | Supplied via 3300 Series Rack |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +65°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH, non-condensing |
| Vibration | 0–5 g, 10–2000 Hz |
3.4 System Compatibility
| Item | Specification |
|---|---|
| System Platform | Bently Nevada 3300 Series Rack |
| Installation | Rack-mounted plug-in module |
| Configuration | Field-configurable via front-panel switches and Bently tools |
Industry Applications
-
Steam Turbines – Monitoring thermal expansion to prevent rotor-casing interference
-
Gas Turbines – Ensuring safe axial alignment during temperature transitions
-
Compressors – Real-time DE analysis for rotor protection
-
Power Generation – Integrated in turbine protection systems
-
Petrochemical Industry – Vital for high-reliability rotating assets
The Bently Nevada 3300/46 Differential Expansion Monitor is a high-precision, reliable module for protecting and optimizing large-scale rotating equipment. It ensures machinery operates safely within thermal expansion tolerances, minimizing downtime and maximizing asset integrity.
Bently Nevada 3300/46 Differential Swelling Monitor is in stock. Please contact us for a quick quote and competitive pricing.
