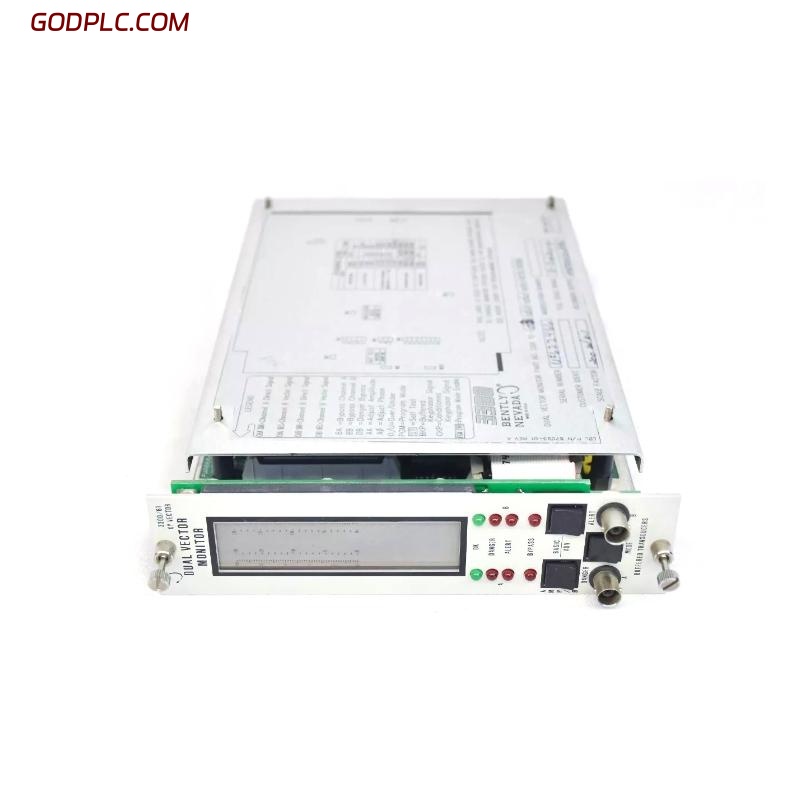

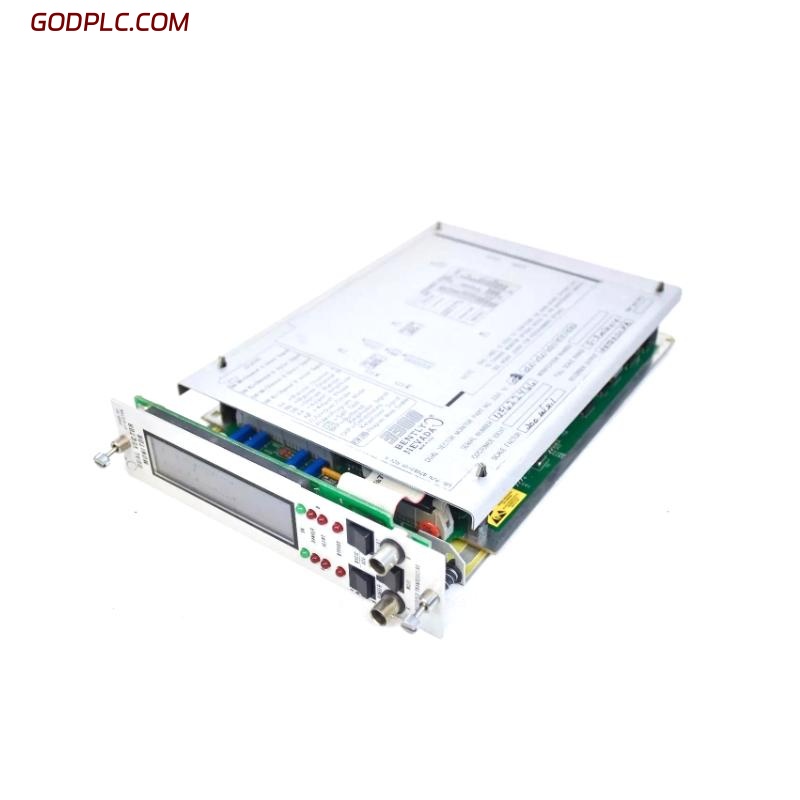

Bently Nevada 3300/61 Dual XY Vector Monitor
Product Overview
The Bently Nevada 3300/61 Dual XY Vector Monitor is a high-performance monitoring module designed for use in the 3300 Series vibration monitoring systems. This monitor is engineered to simultaneously process and display vibration data from two orthogonally mounted proximity probes (X and Y directions), providing real-time vector analysis for rotating machinery. It is commonly applied in machinery with fluid-film bearings where shaft centerline position and dynamic motion are critical for diagnostics.
Key Features
-
Dual-Channel Measurement – Simultaneously measures X and Y vibration vectors.
-
Shaft Centerline Display – Graphically represents shaft position and movement.
-
Configurable Alarms – Dual-level alarms for each channel (Alert and Danger).
-
Buffered Outputs – Accessible outputs for signal analysis and diagnostics.
-
Transducer Compatibility – Designed for use with Bently Nevada proximity probes.
-
Fully Compatible – Integrates into 3300 monitoring racks with standard connectors.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 254 x 165 x 63.5 mm |
| Weight | 1 kg |
3.2 Measurement Capabilities
| Item | Specification |
|---|---|
| Input Channels | 2 (X and Y directions) |
| Transducer Type | Proximity transducers (e.g., 3300 XL 8 mm) |
| Measurement Types | Position, Vibration Amplitude, Vector |
| Frequency Response | 0 to 10 kHz |
| Accuracy | ±0.33% of full-scale output |
3.3 Output and Alarming
| Item | Specification |
|---|---|
| Buffered Outputs | Front and rear-panel BNCs (for both channels) |
| Alarm Types | Alert and Danger (independent per channel) |
| Alarm Relays | 2 per channel, SPDT, programmable delays |
| Relay Contact Rating | 5 A at 28 VDC or 120 VAC |
3.4 Power and Environmental
| Item | Specification |
|---|---|
| Power Supply | Supplied from 3300 Rack |
| Operating Temp | 0°C to +65°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 95% non-condensing |
3.5 Compatibility and Integration
| Item | Specification |
|---|---|
| System Compatibility | Bently Nevada 3300 Series Rack |
| Display Support | Shaft Centerline and Orbit Plots |
| Interfacing | Compatible with System 1 and test tools |
Industry Applications
-
Petrochemical Plants – For critical compressor and turbine monitoring.
-
Power Generation – Detects early signs of shaft misalignment and rubs.
-
Oil & Gas Pipelines – Ensures safe operation of rotating pumping equipment.
-
Industrial Manufacturing – Monitors high-speed motors and rotating assets.
-
Pulp & Paper – Protects critical fans, refiners, and roll systems.
The 3300/61 Dual XY Vector Monitor is a cornerstone of high-integrity machine protection and diagnostics, providing comprehensive insight into dynamic shaft behavior. With precise vector data and advanced alarm functions, it enhances machinery reliability and operational safety.
Bently Nevada 3300/61 Dual XY Vector Monitor is in stock. Please contact us for a quick quote and competitive pricing.
