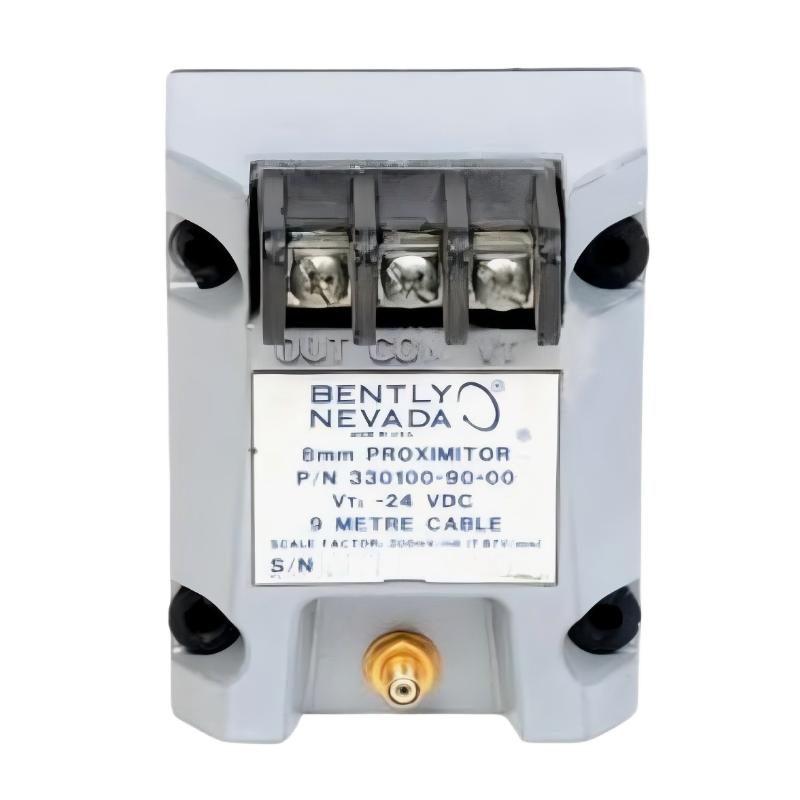

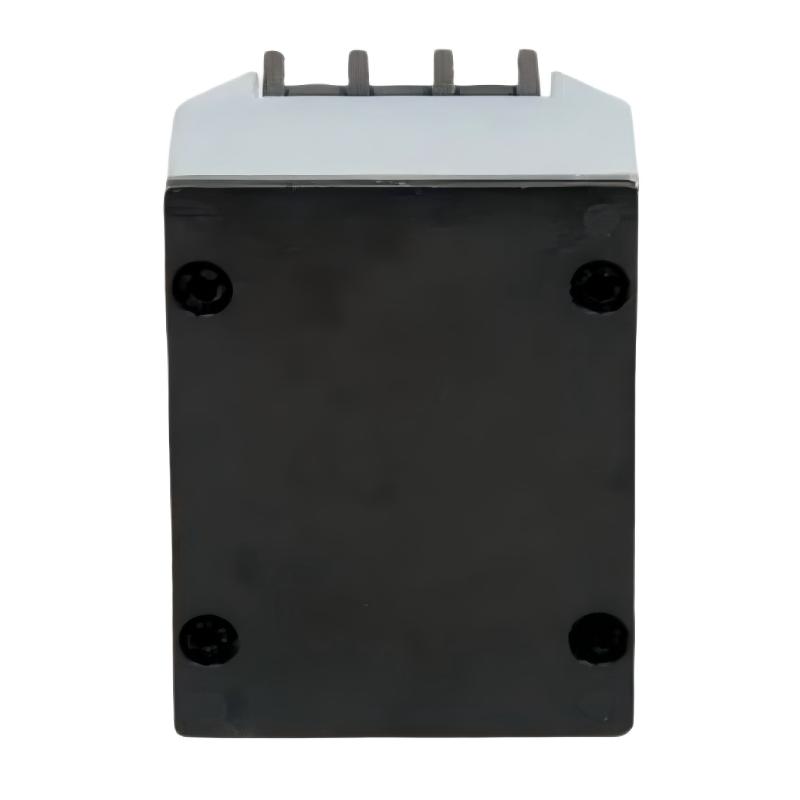

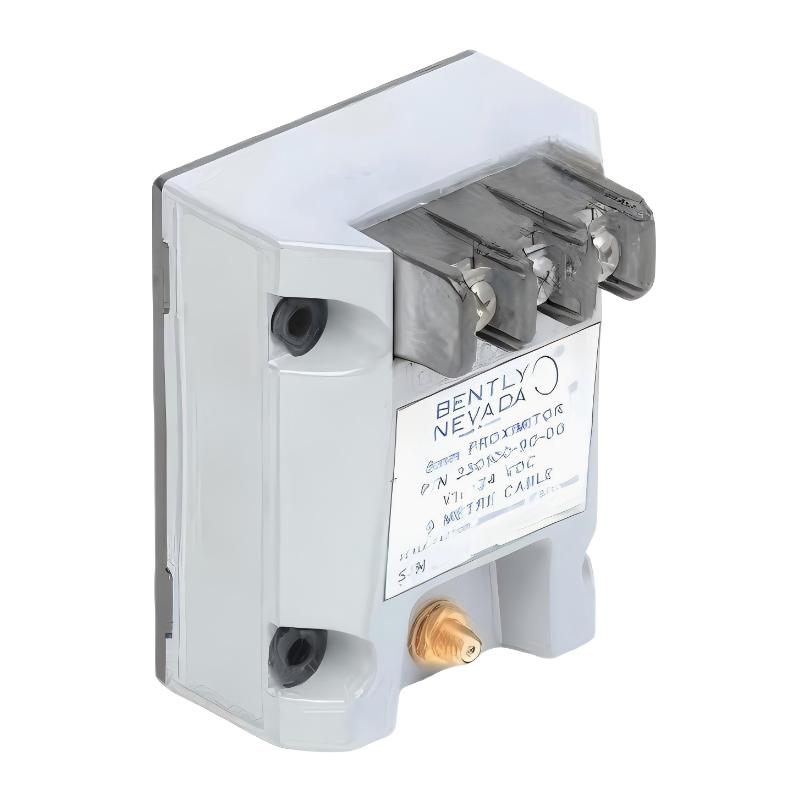

Q1: What is the main function of the Bently Nevada 330100-90-50 preamplifier sensor?

A: The primary function of the 330100-90-50 preamplifier is to condition and amplify weak signals generated by proximity probes used in vibration and displacement monitoring systems. These raw signals are typically very low in amplitude and susceptible to noise interference. The preamplifier ensures that the signal is strengthened, stabilized, and properly conditioned so that the monitoring system can accurately interpret machinery vibration and shaft position data. This makes it a critical interface component in rotating machinery protection and condition monitoring systems.

Q2: Why is signal conditioning necessary in vibration monitoring systems?

A: Signal conditioning is essential because raw signals from proximity probes or similar sensors are often weak, noisy, and unstable due to industrial environmental conditions such as electromagnetic interference and mechanical vibration. Without proper conditioning, the monitoring system may receive inaccurate or distorted data. The preamplifier ensures signal integrity by amplifying useful information while filtering out noise, enabling reliable measurement of vibration, displacement, and shaft position.

Q3: How does this preamplifier integrate with the 3300 monitoring system?

A: The 330100-90-50 is designed to integrate directly into the Bently Nevada 3300 monitoring architecture. It connects between the proximity probe and the monitoring module, acting as an intermediary signal processing stage. Once installed, it continuously conditions incoming sensor signals and transmits them to the monitoring system for analysis. This seamless integration ensures compatibility and consistent performance across the entire vibration monitoring chain.

Q4: What role does the preamplifier play in machinery protection?

A: In machinery protection systems, accurate and stable signal transmission is critical. The preamplifier ensures that vibration and displacement signals are correctly processed before they reach the monitoring system. This allows the protection system to detect abnormal conditions such as shaft misalignment, excessive vibration, or mechanical instability with high precision. By ensuring data accuracy, it directly contributes to reliable machine protection decisions.

Q5: Can the 330100-90-50 operate in harsh industrial environments?

A: Yes, the device is specifically designed for continuous operation in demanding industrial environments. It is built to withstand electrical noise, temperature variations, and mechanical vibration commonly found in power plants, refineries, and heavy industrial facilities. Its robust construction ensures stable signal processing even under challenging operating conditions, maintaining measurement accuracy and system reliability.

Q6: What happens if the preamplifier fails or malfunctions?

A: If the preamplifier fails, the monitoring system may receive weak, distorted, or no signal from the connected probe. This can result in loss of vibration or position data, reduced monitoring accuracy, or alarm conditions in the system. In critical applications, this may trigger system diagnostics or fault indications, prompting maintenance action to restore proper signal transmission and ensure continuous monitoring capability.

Q7: What maintenance is required for this component?

A: The preamplifier itself requires minimal maintenance, but periodic inspection of connections, wiring integrity, and signal stability is recommended. Technicians should verify that signal output remains within expected ranges and ensure that environmental conditions such as moisture, heat, and electromagnetic interference are within acceptable limits. Preventive maintenance helps ensure long-term signal reliability and system performance.

Q8: In which applications is the 330100-90-50 commonly used?

A: This preamplifier is widely used in industrial rotating machinery monitoring systems, including steam turbines, gas turbines, compressors, pumps, and electric motors. It is especially important in applications where accurate vibration and shaft position data are required for condition monitoring and protection. It is a key component in power generation, oil and gas, petrochemical, and heavy manufacturing industries.
