Product Overview

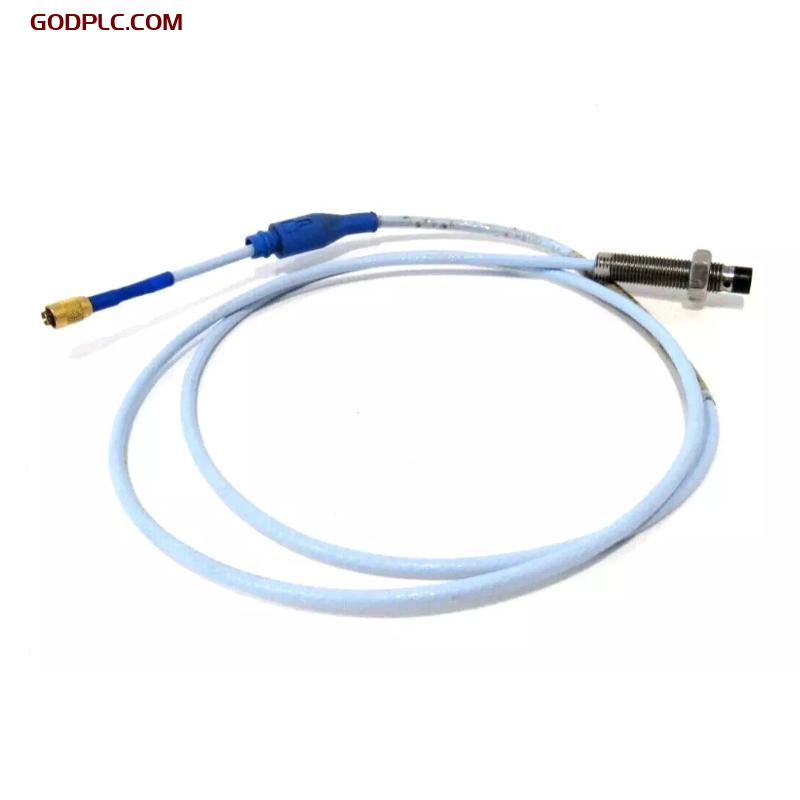

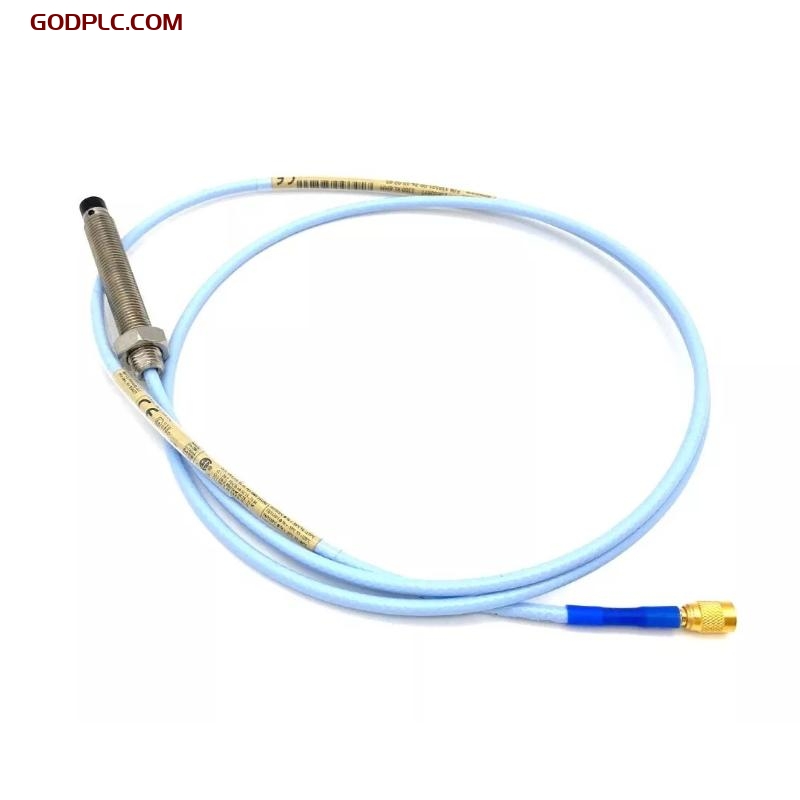

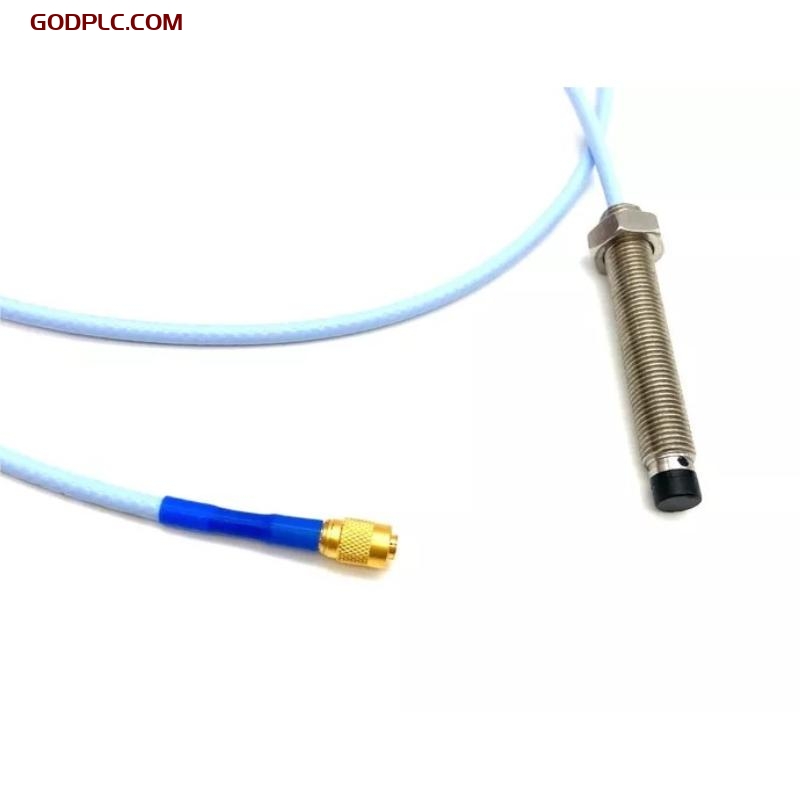

The Bently Nevada 330101-00-10-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision non-contact displacement sensor designed for industrial machinery condition monitoring. Utilizing eddy current technology, it accurately measures vibration and position in rotating equipment, widely applied in oil & gas, power generation, and other critical industries.
Featuring a rugged stainless steel case and ClickLoc connectors, this probe ensures reliability in harsh environments. The standard 1.0-meter cable length supports flexible installation.
Key Features
- High Accuracy: ±5% linearity for static/dynamic measurements.
- Robust Design: 8 mm PPS-encapsulated tip resists physical/chemical damage.
- Interchangeability: Fully compatible with 3300 XL components without recalibration.
- Environmental Resilience: Operates at -52°C to +177°C (-62°F to +350°F).
- Tool-Free Installation: ClickLoc connectors enable quick deployment.
Technical Specifications
1. Dimensions & Weight
| Parameter | Value |
|---|---|
| Probe Diameter | 8 mm |
| Total Length | 1.0 meter (3.3 feet) |
| Weight | 0.323 kg (11.4 oz) |
| Cable OD | 3.68 mm (0.145 in) |
| Connector Type | Miniature ClickLoc Coaxial |
2. General Information
| Parameter | Value |
|---|---|
| Material | AISI 303/304 SST case, PPS tip |
| Cable Insulation | Fluorinated Ethylene Propylene (FEP) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Power Supply | -17.5 Vdc to -26 Vdc |
3. Electrical Properties
| Parameter | Value |
|---|---|
| Probe DC Resistance | 7.59 Ω ±0.50 Ω (1.0 m cable) |
| Output Impedance | 50 Ω |
| Frequency Response | 0–10 kHz (±3 dB) |
| Minimum Target Size | 15.2 mm (0.6 in) diameter |
4. Mechanical Properties
| Parameter | Value |
|---|---|
| Tensile Strength | 330 N (75 lbf) |
| Max Torque (Installation) | 33.9 N•m (300 in•lbf) |
| Recommended Torque | 11.2 N•m (100 in•lbf) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
5. Environmental Limits
| Parameter | Value |
|---|---|
| Operating Temperature | -52°C to +177°C (-62°F to +350°F) |
| Storage Temperature | -52°C to +177°C (-62°F to +350°F) |
| Humidity Tolerance | ≤3% ASF change (93% RH, 56 days) |
| Protection Rating | IP54 (unprotected connectors) |
Industry Applications
- Oil & Gas: Vibration monitoring for compressors/turbines (API 670 compliant).
- Power Generation: Shaft vibration/eccentricity monitoring in turbines.
- Chemical/Metallurgy: Reliable in high-temperature/corrosive environments.
- Marine/Offshore: Engine and propulsion system health monitoring.
Bently Nevada 330101-00-10-10-02-00 3300 XL 8 mm Probe Order online is in stock. Please contact us for a quick quote and competitive pricing.
