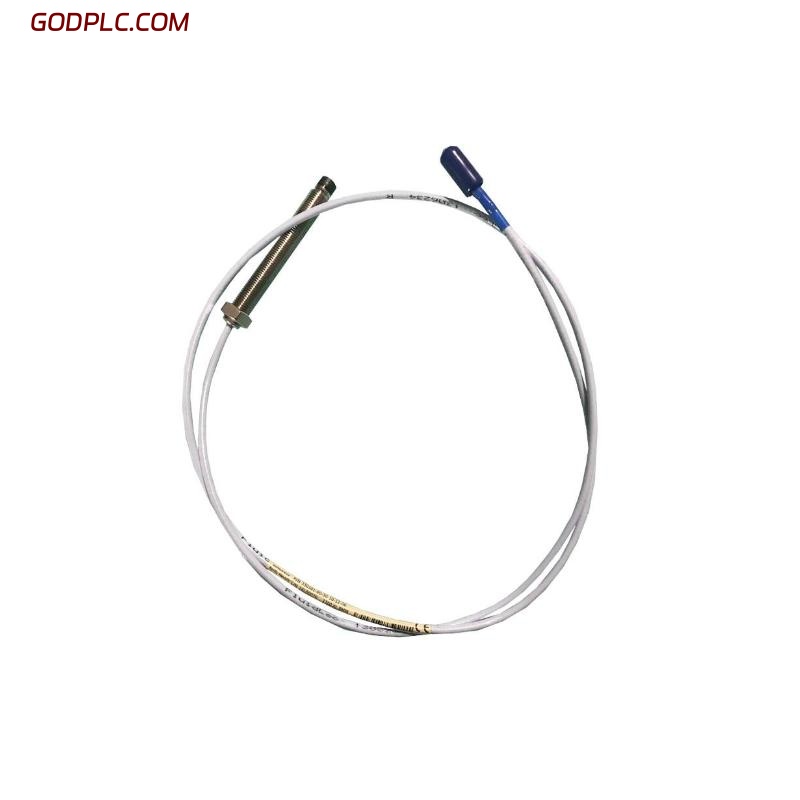

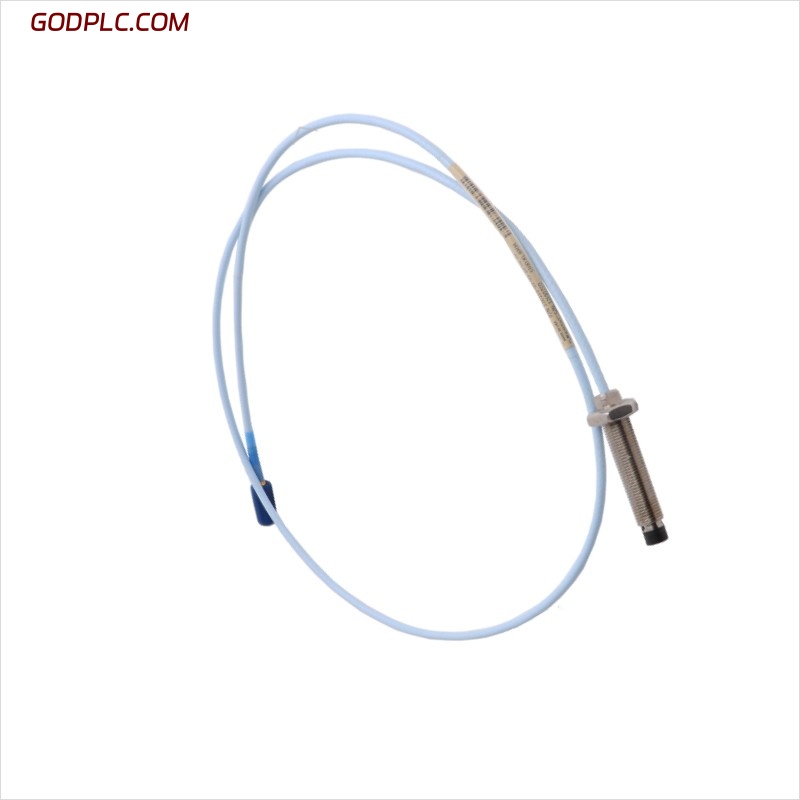

Bently Nevada 330101-00-11-10-02 3300 XL 8 mm Proximity Probe
Product Overview
The Bently Nevada 330101-00-11-10-02 3300 XL 8 mm Proximity Probe is a robust and high-precision sensor designed for vibration and proximity monitoring of rotating machinery in industrial environments. Engineered to provide reliable performance and long-term durability, this proximity probe is optimized for detecting small displacements and measuring machine shaft positions. It is part of Bently Nevada’s 3300 XL series, which is known for its superior accuracy, ease of installation, and maintenance. The 3300 XL 8 mm Proximity Probe is suitable for a wide range of applications, including power plants, chemical processing, and oil & gas industries, where precise monitoring of machinery is critical for maintaining equipment health and preventing downtime.
Key Features
-
Precision Sensing – Provides high-resolution measurements of shaft displacement with 8 mm sensing range for accurate machine condition monitoring
-
Durable Construction – Designed to withstand extreme operating conditions, including high temperatures, vibrations, and exposure to harsh industrial environments
-
Extended Measurement Range – Suitable for a wide range of applications requiring high-accuracy proximity sensing, particularly in large rotating equipment
-
Corrosion-Resistant Housing – Built with materials that resist corrosion and damage in challenging environments, enhancing the probe’s longevity
-
Compatibility – Fully compatible with Bently Nevada 3300 XL Series system, ensuring seamless integration and optimal performance
-
Versatile Application – Ideal for vibration monitoring, shaft position measurement, and detecting imbalance or misalignment in rotating machinery
-
Simplified Installation – Easy to install and configure, reducing downtime during setup and maintenance
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Total Length: 1.0 meter |
| Weight | 0.323 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Measurement Range | 8 mm |
| Operating Voltage | 24 V DC |
| Output Signal | Linear voltage output |
| Frequency Response | Wideband for dynamic monitoring |
| Cable Length | 10 ft (standard) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -40°C to +120°C |
| Storage Temp | -50°C to +125°C |
| Humidity | 0%–95% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
| Protection | IP65 (when installed) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Bently Nevada 3300 XL Series |
| Module Type | Proximity Probe |
| Compatible Systems | Bently Nevada Machinery Monitoring Systems |
Industry Applications
-
Power Generation – Monitors turbine shaft position, bearing condition, and vibration for reliable power plant operations
-
Chemical Processing – Measures vibration and shaft displacement in rotating machinery, reducing unplanned shutdowns in chemical facilities
-
Oil & Gas – Critical for monitoring pumps, compressors, and turbines in upstream, midstream, and downstream oil & gas operations
-
Pulp and Paper – Detects misalignment or imbalance in large industrial machinery in the paper manufacturing process
-
Mining – Ensures accurate machine condition monitoring in high-vibration environments, including crushers, mills, and conveyors
The Bently Nevada 330101-00-11-10-02 3300 XL 8 mm Proximity Probe is a reliable, high-precision solution for continuous monitoring of machine health in industrial environments. Its robust construction, wide measurement range, and easy integration with the Bently Nevada 3300 XL series ensure superior performance in a variety of demanding applications. Designed for long-term reliability, this proximity probe plays a critical role in preventing machinery failures and extending the life of industrial equipment.
