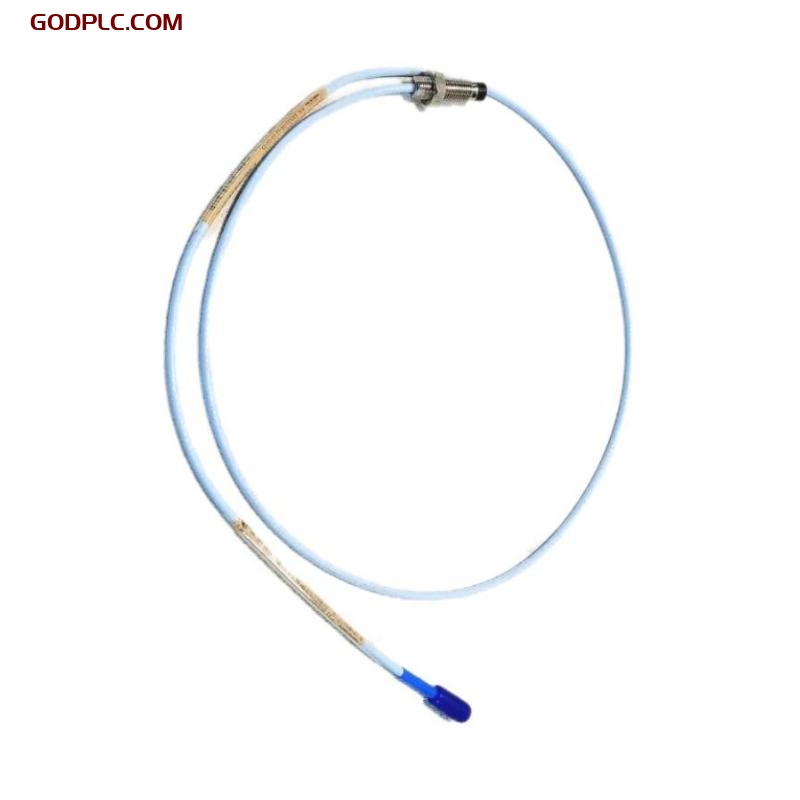

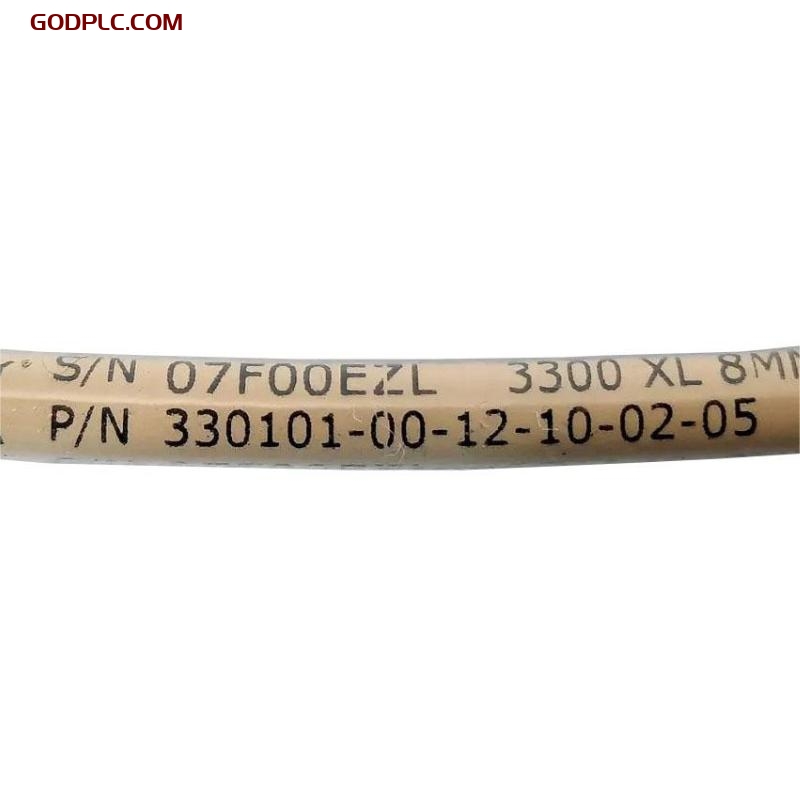

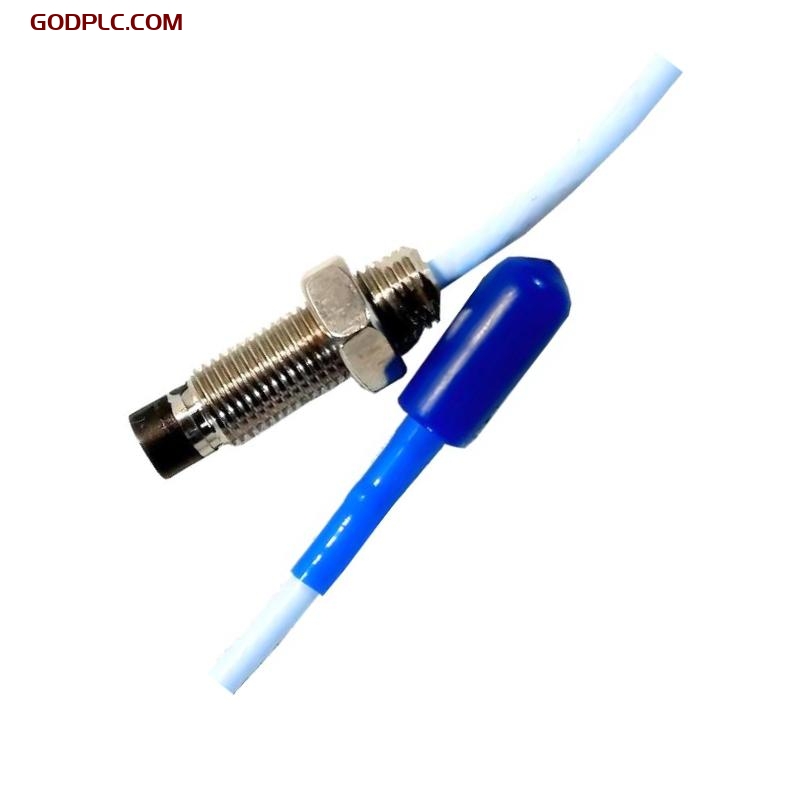

Bently Nevada 330101-00-12-10-02-05 3300 XL 8 mm Proximity Probe
Product Overview
The Bently Nevada 330101-00-12-10-02-05 3300 XL 8 mm Proximity Probe is an advanced sensor designed for high-precision vibration and position measurements. As part of the 3300 XL Series, it delivers enhanced performance and reliability for monitoring critical machinery in industrial environments. The 8 mm Proximity Probe is specifically engineered for use in harsh conditions, providing accurate and consistent measurement of machine displacement, vibration, and position. This probe is commonly used in applications where precision monitoring of rotating equipment such as motors, turbines, and compressors is crucial to maintain operational efficiency and avoid unexpected downtime.
The 3300 XL 8 mm Proximity Probe is designed to integrate seamlessly with Bently Nevada’s monitoring systems, ensuring a robust, scalable, and highly effective solution for machinery health monitoring in industries like power generation, oil and gas, and manufacturing.
Key Features
-
High Precision: Provides accurate displacement and vibration measurements down to 8 mm for critical equipment monitoring.
-
Robust Design: Built to withstand harsh environments with high vibration, temperature fluctuations, and potential exposure to chemicals and moisture.
-
Easy Integration: Compatible with Bently Nevada’s 3300 XL Series monitoring systems and other vibration monitoring setups.
-
Long Life Span: Durable construction ensures long-term reliability with minimal maintenance requirements.
-
Versatile Mounting Options: Flexible mounting options for installation in various machine configurations, ensuring ease of use across different industrial applications.
-
Enhanced Sensitivity: High-sensitivity probe for detecting small displacements and early signs of equipment issues.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Probe Length | Total Length: 1.0 meter |
| Outer Diameter | 8 mm |
| Weight | 0.323 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Operating Voltage | 18 V DC to 30 V DC |
| Output Signal | 4–20 mA or 0–10 V DC (depending on configuration) |
| Operating Current | 20 mA max |
| Resistance | 100 Ω ±10% |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -40°C to +121°C (ambient) |
| Storage Temp | -40°C to +121°C |
| Vibration Range | 0 to 10 g RMS |
| Protection Class | IP67 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Bently Nevada 3300 XL Series |
| Mounting Type | 8 mm probe mount with flexible extension |
| Communication | Compatible with 3300 XL signal processing systems |
Industry Applications
-
Power Generation: Continuous monitoring of turbine and generator shafts to ensure stable performance and prevent mechanical failure.
-
Oil & Gas: Used in offshore rigs and refineries for vibration monitoring of pumps, motors, and compressors, helping to detect early warning signs of failure.
-
Manufacturing: Monitors the condition of critical machines such as CNC machines, conveyors, and presses to optimize maintenance schedules.
-
Aerospace: Employed in high-precision aerospace systems for monitoring rotating equipment.
-
Mining: Ensures the health of heavy equipment such as crushers and conveyors in mining operations, reducing the risk of unscheduled downtime.
The Bently Nevada 330101-00-12-10-02-05 3300 XL 8 mm Proximity Probe provides high-precision measurement for continuous condition monitoring in critical machinery. Its robust design, coupled with reliable performance in harsh environments, makes it an ideal solution for industries that depend on the smooth operation of rotating equipment to maintain uptime and productivity.
