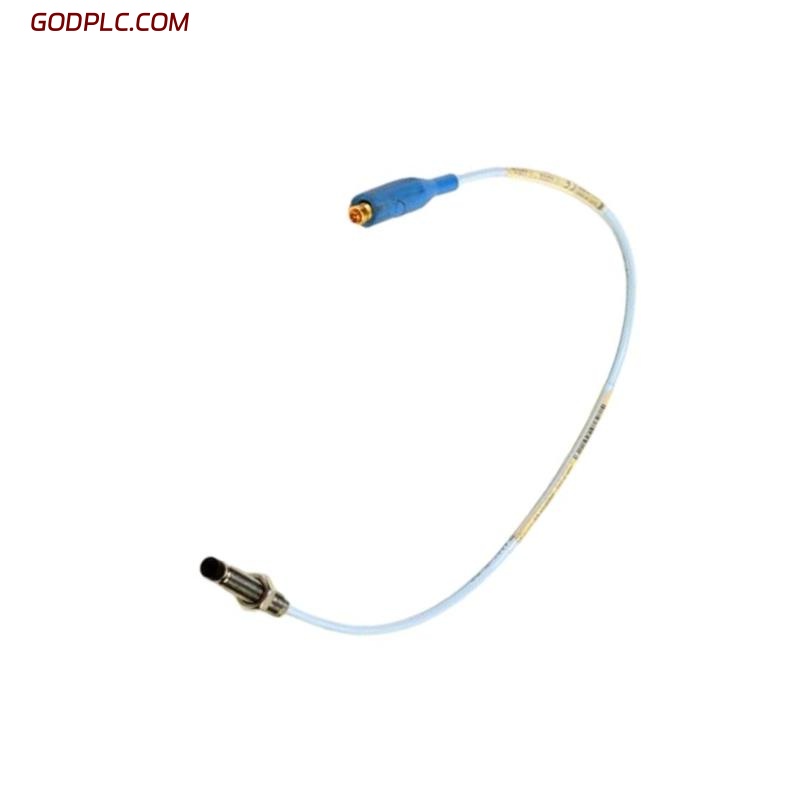

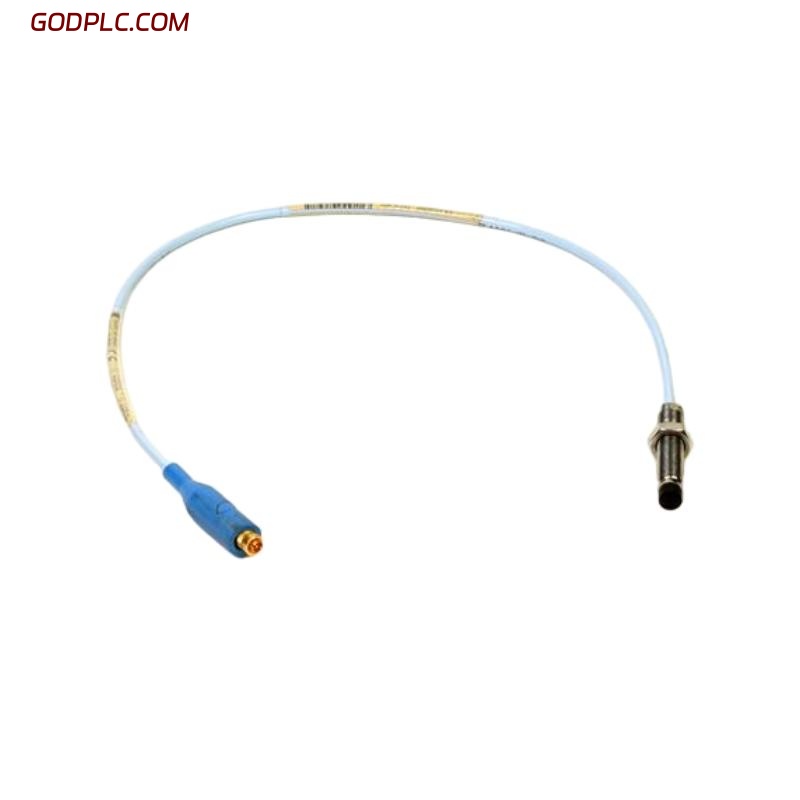

Bently Nevada 330101-00-20-05-02-00 3300 XL 8 mm Proximity Probe
Product Overview
The Bently Nevada 330101-00-20-05-02-00 3300 XL 8 mm Proximity Probe is an advanced eddy current sensor designed for high-precision vibration and position measurement in rotating machinery. A part of the Bently Nevada 3300 XL series, this proximity probe offers exceptional performance and reliability in industrial environments. It is engineered to provide precise shaft position and vibration monitoring, enabling early detection of potential machinery issues before they lead to failure.
The 3300 XL 8 mm Proximity Probe is ideal for use in industries that require continuous monitoring of critical equipment, including power generation, oil & gas, and heavy manufacturing. Its 8mm sensing range makes it particularly suited for detecting small displacements and vibrations, providing highly accurate data to ensure machinery protection and operational efficiency.
Key Features
-
High Precision Measurement – Offers accurate monitoring of shaft position, vibration, and other key parameters in rotating machinery, providing critical insights into equipment health.
-
8mm Sensing Range – Perfect for detecting small displacements with high accuracy, ensuring precise monitoring of machine conditions.
-
Durable and Robust Design – Designed to withstand harsh industrial environments with excellent resistance to shock, vibration, and temperature extremes.
-
Stable Signal Output – Features a stable and consistent 4-20 mA output signal, ensuring reliable data transmission even in electrically noisy environments.
-
Easy Integration – Fully compatible with the Bently Nevada 3300 XL Proximitor System, enabling seamless integration into existing machinery protection and condition monitoring setups.
-
Minimal Maintenance – Long-lasting construction reduces the need for frequent maintenance, minimizing downtime and operational costs.
-
Flexible Mounting Options – Can be mounted in a variety of configurations, making it adaptable to different machine types and installation requirements.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Total Length : 0.5 meter |
| Weight | 0.131 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Output Signal | Proportional to displacement (4-20 mA) |
| Operating Voltage | 18-30 VDC |
| Current Consumption | 20 mA |
| Signal Output | 4-20 mA, linear |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -40°C to +100°C |
| Storage Temperature | -55°C to +125°C |
| Vibration Resistance | 10 g (continuous), 50 g (shock) |
| Enclosure Rating | IP67 (dust-tight and protected from immersion in water) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Compatible with Bently Nevada 3300 XL Proximitor System |
| Mounting | Suitable for direct or threaded mounting |
Industry Applications
-
Power Generation – Essential for monitoring turbines, generators, and other critical rotating machinery, ensuring their smooth operation and early detection of potential issues.
-
Oil & Gas – Key for condition monitoring on offshore rigs, refineries, and compressor stations, preventing costly equipment failures and ensuring operational safety.
-
Manufacturing – Used to monitor motors, pumps, and fans, ensuring the continuous operation of manufacturing processes while preventing unnecessary downtime.
-
Mining – Protects vital mining equipment such as crushers, conveyors, and grinding mills, minimizing the risk of failure in demanding environments.
-
Pulp & Paper – Vital for the performance monitoring of paper mills, protecting essential machinery like paper machines, pumps, and motors.
The Bently Nevada 330101-00-20-05-02-00 3300 XL 8 mm Proximity Probe is designed to provide accurate and reliable vibration and position measurement in critical rotating machinery. Its durable design, minimal maintenance needs, and exceptional performance make it an essential component for ensuring the protection and optimized operation of industrial equipment across a range of sectors.
