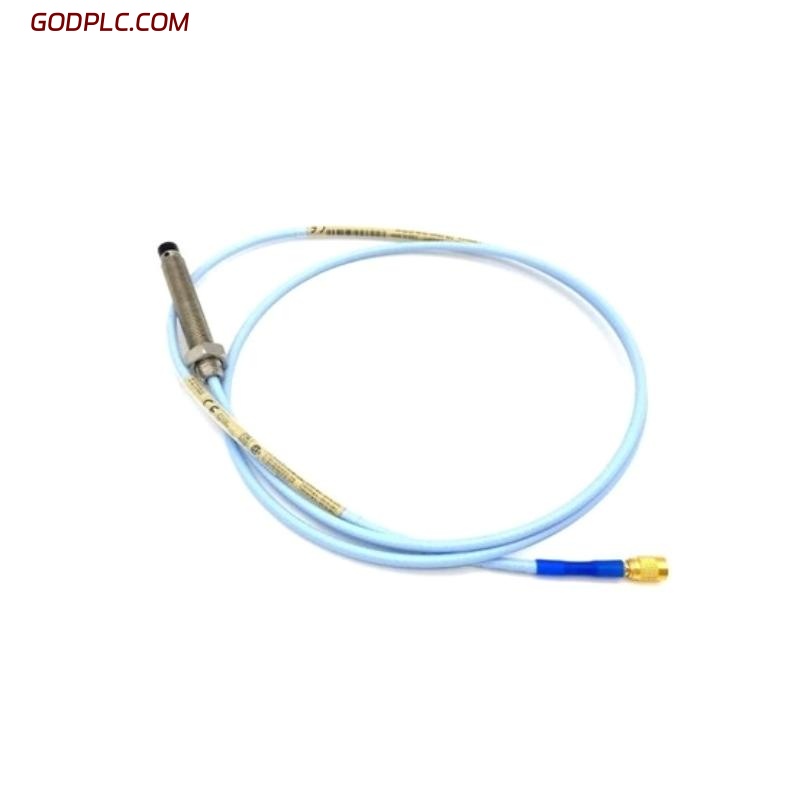

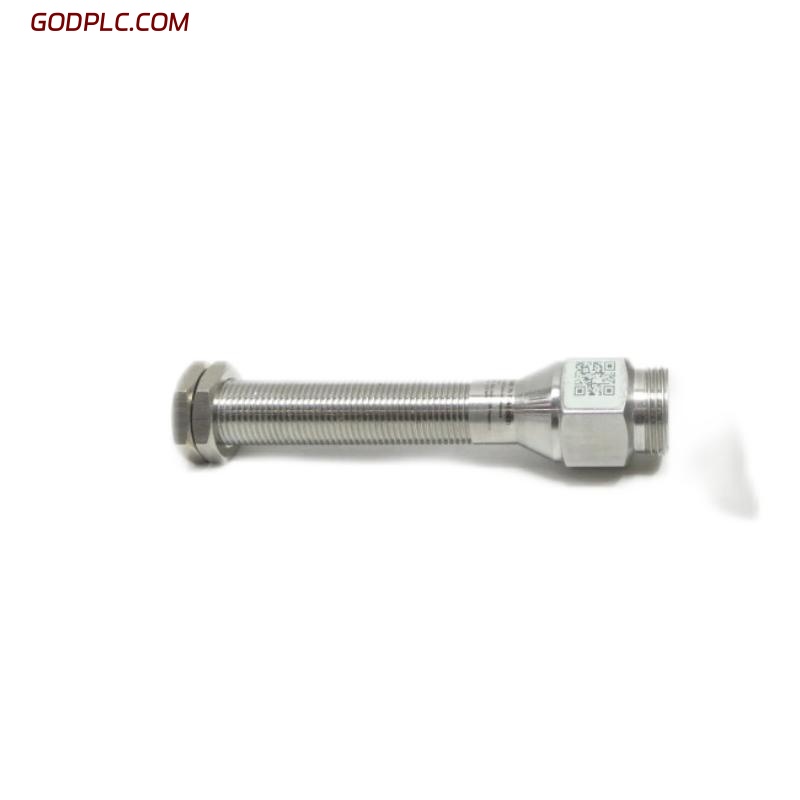

Bently Nevada 330101-30-63-10-02-00 3300 XL 8 mm Proximity Probe
Product Overview
The Bently Nevada 330101-30-63-10-02-00 is a long-range proximity probe from the 3300 XL 8 mm series, engineered for accurate, non-contact measurement of shaft vibration and position in demanding industrial environments. With a total probe length of 30 feet (9.14 meters), this model is ideal for remote installations or applications requiring extended cable runs. It works in conjunction with 3300 XL Proximitor sensors and extension cables to form a complete and reliable machinery monitoring system.
Key Features
-
30-foot (9.14 m) probe length for remote or deep installations
-
Designed for use with 3300 XL Proximitor Sensors and 330130 Series extension cables
-
Non-contact eddy current sensing for high-accuracy position and vibration detection
-
Factory-calibrated to ensure signal precision
-
Robust construction for high-temperature and high-pressure environments
-
IP68-rated environmental sealing for protection against dust and moisture
-
API 670 compliant for industrial machinery monitoring applications
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Probe Length | Total Length: 1.0 meter |
| Weight | 0.323 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Sensitivity | 200 mV/mil (7.87 mV/μm) (with Proximitor) |
| Linear Range | 2 mm (80 mils) |
| System Accuracy | ±0.07 V/mil (±2.87 mV/μm) typical |
| Probe Type | Non-contact eddy current sensor |
| Connector | Miniature coaxial connector |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -35°C to +177°C (probe only) |
| Humidity | 0%–95% RH (non-condensing) |
| Pressure Rating | Up to 300 psi (with proper sealing) |
| Enclosure Rating | IP68 (sealed against moisture and dust) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Sensors | 3300 XL 8 mm Proximitor Sensors |
| Extension Cable | 330130-0x-xx Series |
| Application Type | Shaft vibration, thrust position, and displacement monitoring |
Industry Applications
-
Oil & Gas – Ideal for long-distance probe routing in turbines and compressors
-
Power Generation – Extended monitoring capability in steam and gas turbine systems
-
Chemical Processing – For remote shaft monitoring in hazardous environments
-
Mining & Metals – Supports hard-to-reach applications in heavy equipment
-
Marine & Offshore – Long-length probe for deep installation in propulsion systems
The Bently Nevada 330101-30-63-10-02-00 3300 XL 8 mm Proximity Probe provides exceptional length and reliable performance for monitoring critical rotating machinery. Its rugged design, environmental resistance, and high accuracy make it a dependable choice for industrial applications with extended installation requirements.
Bently Nevada 330101-30-63-10-02-00 3300 XL 8 mm Proximity Probe is in stock. Please contact us for a quick quote and competitive pricing.
