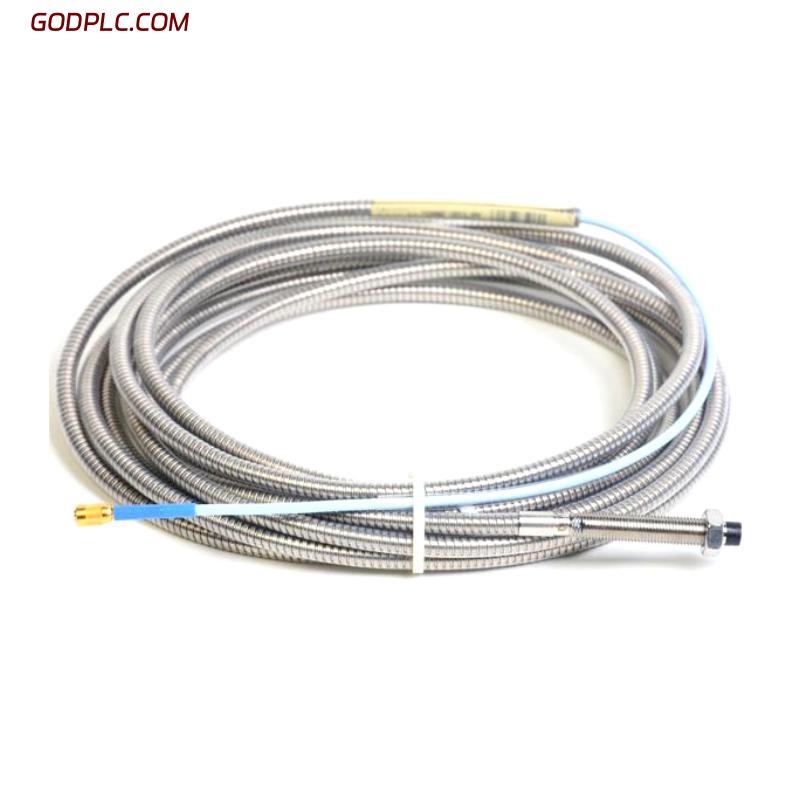

Bently Nevada 330102-00-13-10-02-00 Eddy Current Proximity Probe Assembly
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330102-00-13-10-02-00 |
| Product Type | Eddy Current Proximity Probe Assembly |
| Probe Tip Diameter | 5 mm |
| Probe Length | 130 mm |
| Extension Cable Length | 10 m |
| Total System Length | 13 m |
| Calibration Standard | API 670 |
| Sensitivity | 7.87 mV/µm (nominal) |
| Linear Range | 2.0 mm |
| Frequency Response | 0–10 kHz |
| Output Type | Analog displacement voltage signal |
| Supply Voltage | ±24 VDC (via matching driver) |
| Material | Stainless-steel probe body; industrial coaxial cable |
| Connector Style | Rugged threaded coaxial connector |
| Dimensions (Probe Body) | 130 × 8 × 8 mm |
| Weight | Approx. 0.26 kg (probe + cable assembly) |
| Operating Temperature | −35°C to +100°C |
| Environmental Rating | IP67 |
| Mounting Method | Threaded installation for fixed-gap positioning |
| Typical Applications | Rotor displacement, shaft vibration, and thrust position monitoring |
FAQ
-
Q1: What does the part number 330102-00-13-10-02-00 represent?
A1: It identifies a 13-meter proximity probe system with specific probe length, cable length, and connector configuration. -
Q2: Is this model suitable for high-speed rotating machinery?
A2: Yes. The frequency response up to 10 kHz supports applications on turbines, compressors, and other high-speed assets. -
Q3: Does the assembly come pre-calibrated?
A3: The complete system is factory-matched and calibrated to ensure consistent sensitivity over the entire cable length. -
Q4: Can the probe be used in harsh industrial environments?
A4: The stainless-steel construction and IP67 protection allow operation in oil, dust, and moisture-rich areas. -
Q5: What driver modules are typically paired with this probe?
A5: It is designed to operate with standard proximity probe drivers that match the 7.87 mV/µm sensitivity. -
Q6: How should the probe be installed for best accuracy?
A6: It requires a stable threaded mount and correct initial gap to the target surface for optimal displacement readings. -
Q7: Will cable length variations affect the measurement?
A7: No. This 13 m system is manufactured as a matched set to maintain calibration accuracy throughout its length. -
Q8: What type of maintenance does the probe require?
A8: Regular inspections for cable integrity and ensuring the probe tip remains clean are typically sufficient for long-term performance.
Bently Nevada 330102-00-13-10-02-00 Eddy Current Proximity Probe Assembly is in stock. Please contact us for a quick quote and competitive pricing.
