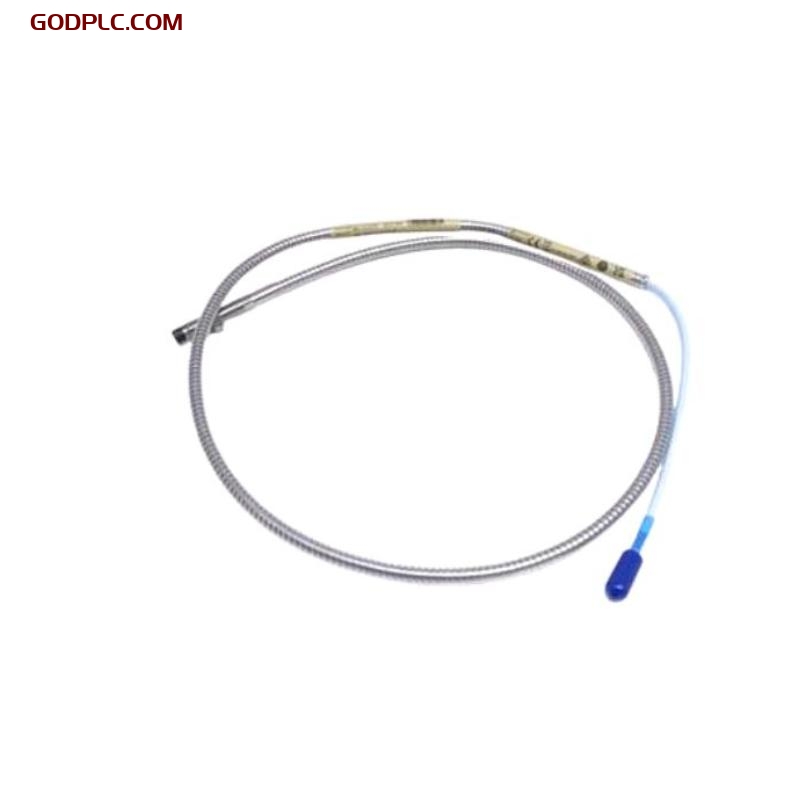

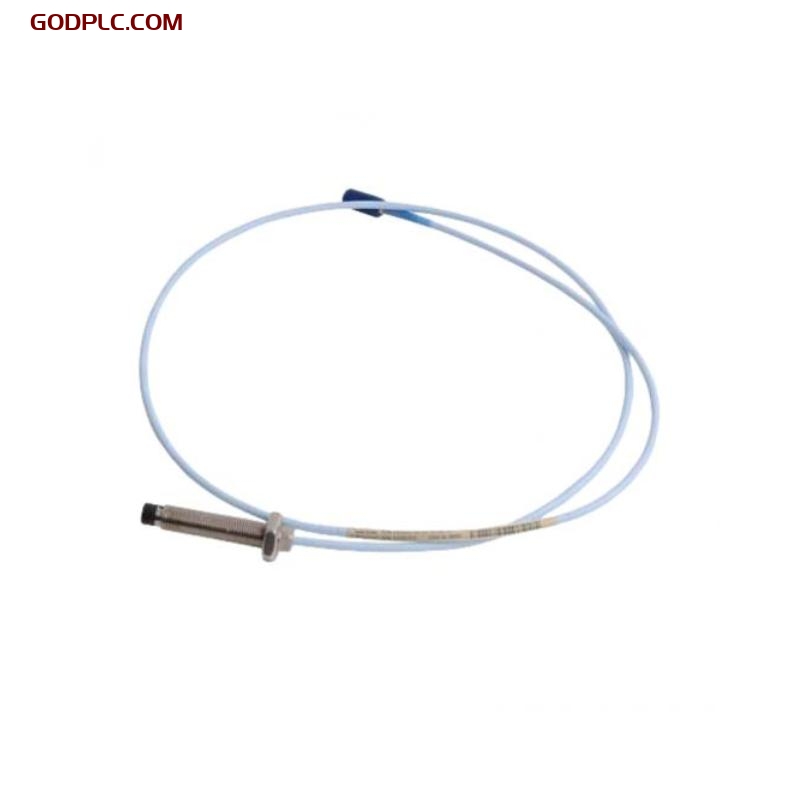

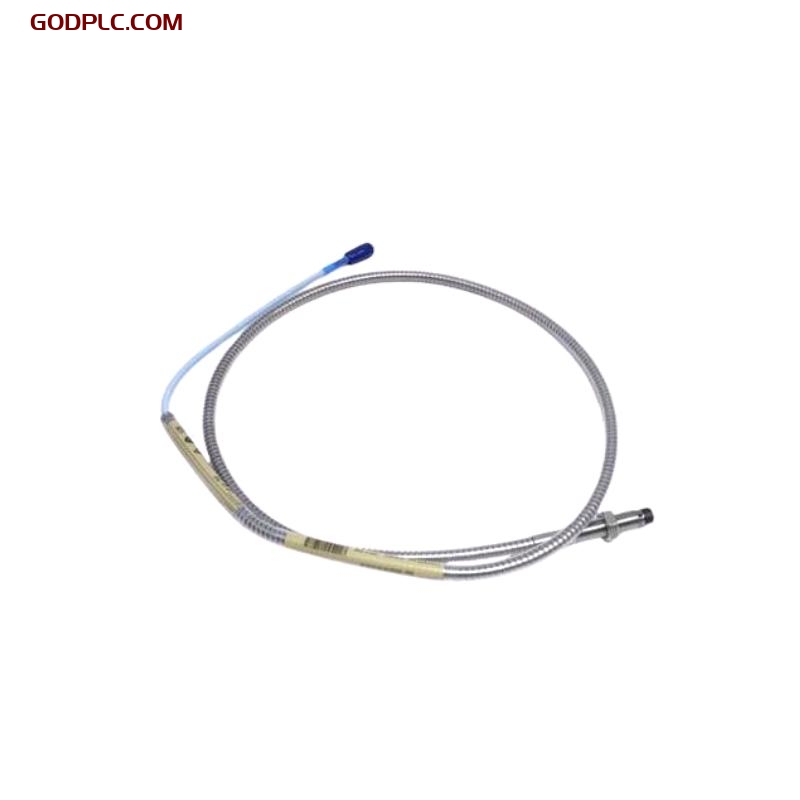

Bently Nevada 330102-00-28-10-02-05 3300 XL 8 mm Proximity Probe
Product Overview
The Bently Nevada 330102-00-28-10-02-05 3300 XL 8 mm Proximity Probe is a high-performance vibration monitoring sensor designed for precision measurement in industrial machinery applications. This probe is part of the 3300 XL series, which is renowned for its exceptional reliability and robustness in harsh environments. The 3300 XL 8 mm Proximity Probe is commonly used for detecting changes in position, displacement, and vibration within rotating machinery, such as turbines, motors, and pumps, helping to ensure operational efficiency and prevent equipment failure.
Key Features
-
Precision Measurement: Provides high accuracy in detecting displacement and vibration, with an 8 mm probe gap for precise measurements.
-
Durable Construction: Built to withstand extreme conditions, including high temperatures, harsh chemicals, and mechanical wear, ensuring long-term reliability.
-
High Sensitivity: Capable of detecting even the smallest changes in machine position or vibration, crucial for predictive maintenance and condition monitoring.
-
Improved Signal Quality: Designed to minimize noise interference, delivering stable and accurate output signals even in challenging industrial environments.
-
Modular Compatibility: Fully compatible with Bently Nevada’s 3300 XL series vibration monitoring systems, allowing for easy integration into existing setups.
-
Wide Temperature Range: Operates effectively in a wide temperature range, making it suitable for various industrial applications.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Total Length: 1.0 meter |
| Weight | 0.323 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | 330102-00-28-10-02-05 |
| Module Type | Proximity Probe |
| Probe Gap | 8 mm |
| Sensing Range | 0–5 mm |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Operating Voltage | 24 V DC |
| Power Consumption | < 5 W |
| Operating Temp | -40°C to +85°C |
| Storage Temp | -40°C to +100°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP65 (Dust and water-resistant) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible System | Bently Nevada 3300 XL Series |
| Communication | 4–20 mA Analog Signal |
| Software Support | Bently Nevada System 1, 3500 System |
Industry Applications
-
Rotating Machinery Monitoring: Ideal for continuous monitoring of turbines, compressors, and pumps, ensuring that early signs of wear or failure are detected.
-
Predictive Maintenance: Used in predictive maintenance programs to monitor machine health, allowing for early intervention before failures occur.
-
Vibration Analysis: Helps in measuring vibration levels in critical equipment, allowing for timely analysis and repair to prevent expensive downtime.
-
Oil and Gas: Commonly used in oil and gas industries for machinery monitoring in both upstream and downstream operations, ensuring equipment reliability and safety.
-
Power Generation: Used extensively in power plants to monitor critical rotating machinery, such as generators and motors, to improve uptime and operational efficiency.
The Bently Nevada 330102-00-28-10-02-05 3300 XL 8 mm Proximity Probe is an essential tool for vibration monitoring and displacement measurement in industrial machinery. Its high precision, durable design, and seamless compatibility with Bently Nevada’s monitoring systems make it an indispensable component for ensuring operational reliability and preventing unexpected machinery failure.
