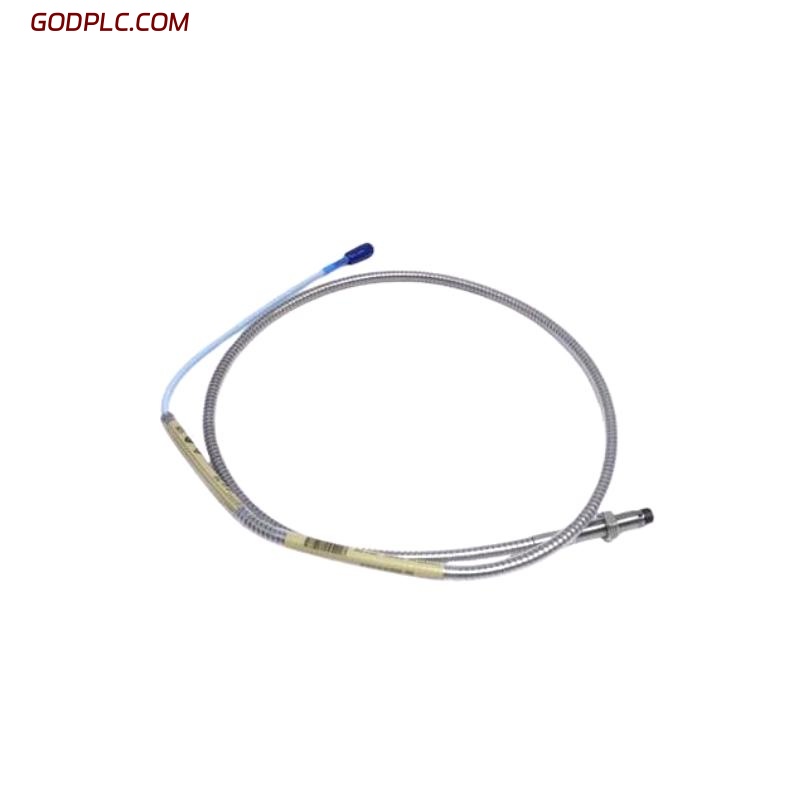

Bently Nevada 330102-00-40-90-01-05 Eddy-current proximity measurement
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 330102-00-40-90-01-05 |
| Sensing Method | Eddy-current proximity measurement |
| System Length | 90 mm configuration for extended displacement range |
| Sensitivity | 7.87 mV/µm |
| Probe Diameter | 8 mm |
| Thread Type | M14 × 1 machine-thread housing |
| Probe Material | Corrosion-resistant stainless steel |
| Tip Material | High-durability ceramic sensing face |
| Cable Length | 1 m pre-attached probe cable |
| Extension Cable | 5 m matched extension cable |
| Cable Type | Shielded, low-noise, oil-resistant jacket |
| Frequency Bandwidth | DC to 10 kHz |
| Operating Temperature | –40°C to +120°C |
| Storage Temperature | –50°C to +150°C |
| Environmental Protection | IP67 sealed assembly |
| Mounting Style | Threaded installation with locknut retention |
| Dimensions (L × W × H) | 175 mm × 14 mm × 14 mm |
| Weight | Approx. 260 g |
FAQ
Q1: What is the advantage of the 90-mm system length in this model?
A1: The extended length supports larger displacement measurements, making it suitable for applications where wide dynamic motion is present.
Q2: Does the 1 m + 5 m cable configuration affect signal quality?
A2: No. The cables are impedance-matched to maintain consistent linearity, phase stability, and noise immunity.
Q3: Can the probe be installed in high-humidity or oil-rich environments?
A3: Yes. Its IP67 rating and sealed cable structure allow reliable operation in lubricated and moisture-exposed areas.
Q4: Is this model interchangeable with other eddy-current probes in the same product family?
A4: It is compatible with drivers calibrated for the 3300-type system parameters but should be used only with matched cables to maintain accuracy.
Q5: How should the mounting depth be set during installation?
A5: Positioning should target the nominal mid-gap defined by the associated driver to preserve measurement linearity and thermal stability.
Q6: What target surfaces yield the most stable readings?
A6: Ferromagnetic materials, especially carbon steel, provide the most reliable eddy-current response.
Q7: Are there temperature considerations that affect measurement performance?
A7: Although the probe is rated for wide temperatures, maintaining stable mounting conditions reduces thermal drift and enhances repeatability.
Q8: What routine checks help ensure long-term reliability?
A8: Inspect cable integrity, check for secure mounting, and clean the sensing face periodically to prevent debris from affecting signal quality.
Bently Nevada 330102-00-40-90-01-05 Eddy-current proximity measurement is in stock. Please contact us for a quick quote and competitive pricing.
