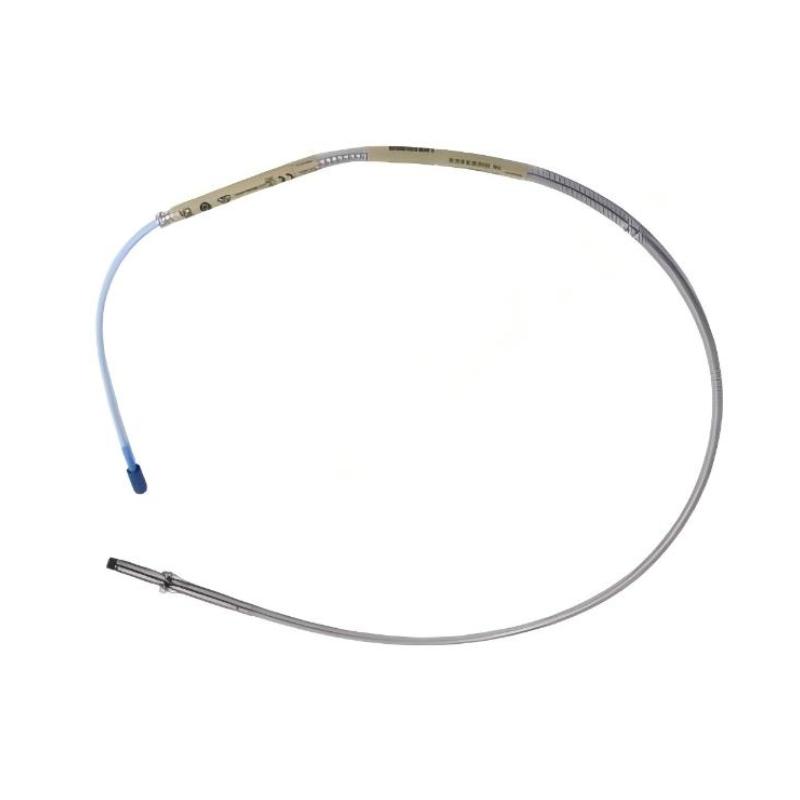

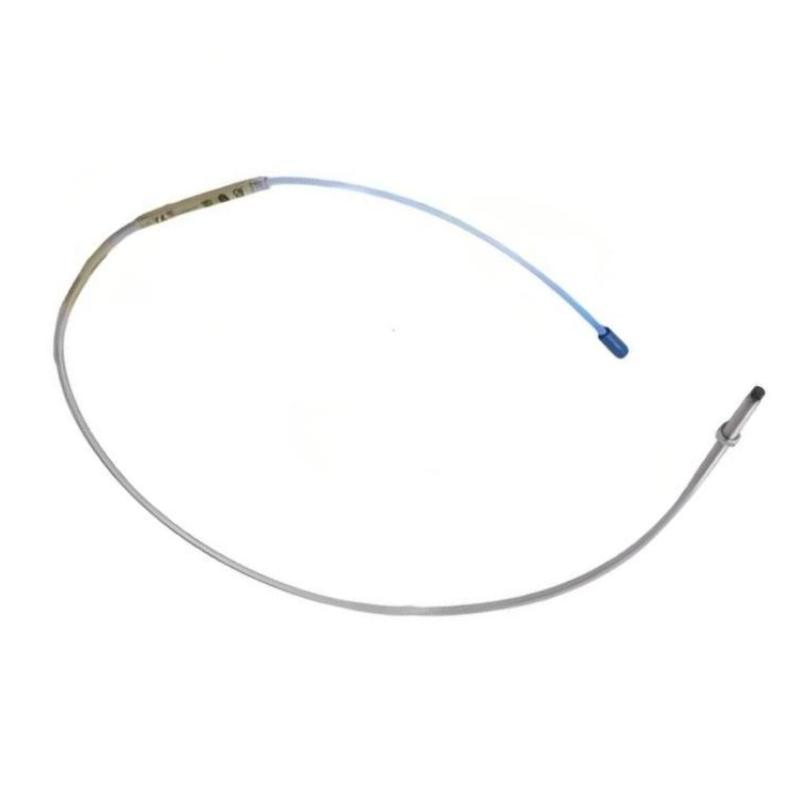

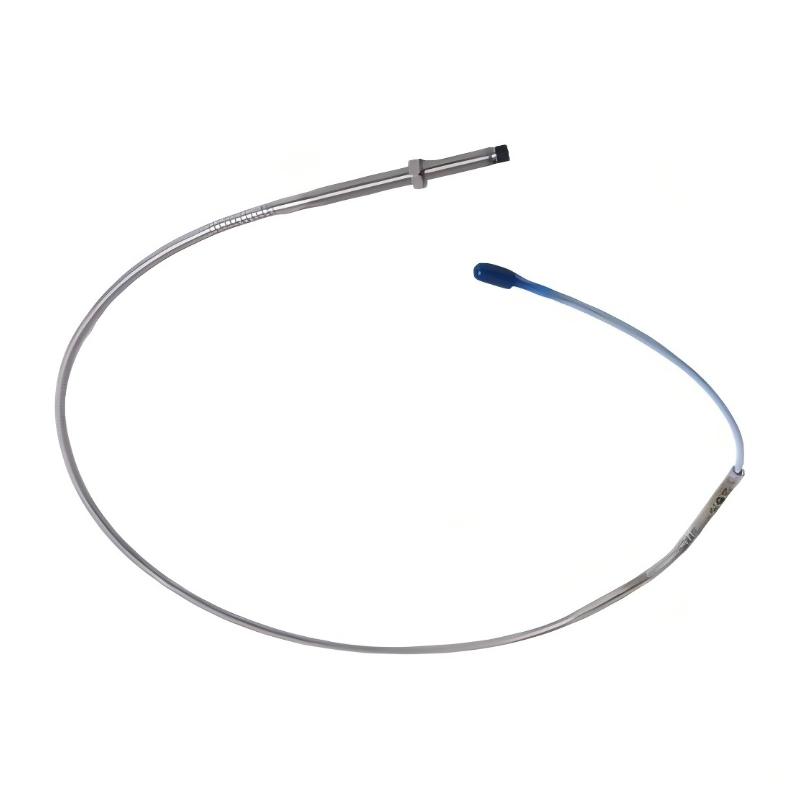

Q1: What is the primary function of the 3300 XL 8 mm Proximity Probe?
A1: The primary function of this probe is to provide continuous, non-contact measurement of the relative distance between the probe tip and a conductive rotating shaft. It is mainly used to monitor shaft vibration, shaft position, and dynamic movement in rotating machinery. In industrial condition monitoring systems, this data is essential because even very small changes in shaft behavior can indicate early-stage mechanical problems such as imbalance, misalignment, shaft bow, or bearing wear. Early detection helps prevent unexpected equipment failure and improves overall machine reliability.

Q2: How does the eddy current measurement principle work?
A2: The probe operates by generating a high-frequency electromagnetic field at its sensing tip. When a conductive metallic object, such as a steel shaft, enters this field, eddy currents are induced on the surface of the material. These eddy currents change the impedance of the probe coil. The system converts this impedance change into a stable voltage signal that is directly proportional to the distance between the probe and the shaft. This allows highly accurate, repeatable, and stable measurement even in harsh industrial environments with vibration, temperature variation, and electrical noise.

Q3: What types of machinery commonly use this probe?
A3: This probe is widely used in large rotating machinery such as steam turbines, gas turbines, centrifugal compressors, pumps, and industrial electric motors. It is especially important in industries like power generation, oil and gas, petrochemical processing, and heavy manufacturing. These systems rely on continuous monitoring because even small mechanical deviations can quickly develop into serious equipment damage, production loss, or safety risks. The probe plays a key role in ensuring stable and efficient operation.

Q4: What parameters does this probe measure?
A4: The probe is used to measure radial vibration, shaft position (gap), axial displacement, and rotor eccentricity. When integrated into a multi-probe configuration, it can also support orbit analysis of rotating shafts. These measurements provide deep insight into rotor behavior and allow engineers to identify conditions such as imbalance, misalignment, thermal growth, shaft bending, and bearing degradation.

Q5: How is the probe integrated into a monitoring system?
A5: The probe works together with a Bently Nevada Proximitor sensor. The probe itself generates a raw eddy current signal that reflects the distance to the shaft. The Proximitor conditions and converts this signal into a standardized voltage output. This output is then used by monitoring systems for real-time analysis, alarm generation, and long-term trend tracking, forming a complete machinery protection architecture.

Q6: Why is non-contact measurement important in this application?
A6: Non-contact measurement eliminates physical wear between the sensor and the rotating shaft, ensuring long-term stability and reliability. It also enables accurate measurement at very high rotational speeds where physical contact would be unsafe or impossible. Additionally, it reduces maintenance requirements and improves measurement accuracy by avoiding friction-related interference, making it ideal for critical rotating equipment.

Q7: What operating conditions can this probe withstand?
A7: The probe is designed for harsh industrial environments including high temperature, strong vibration, oil contamination, and electromagnetic interference. Its rugged construction ensures stable operation in continuous-duty applications such as turbines and compressors, even under fluctuating process conditions and long-term operation.

Q8: How does this probe support predictive maintenance?
A8: The probe continuously collects real-time vibration and displacement data, which is used to analyze long-term machine behavior. By tracking gradual changes such as increasing vibration trends, shaft position drift, or unstable rotor patterns, maintenance teams can detect early signs of mechanical degradation. This enables maintenance to be planned proactively instead of reactively, reducing unexpected downtime, improving operational reliability, and extending overall asset life.
