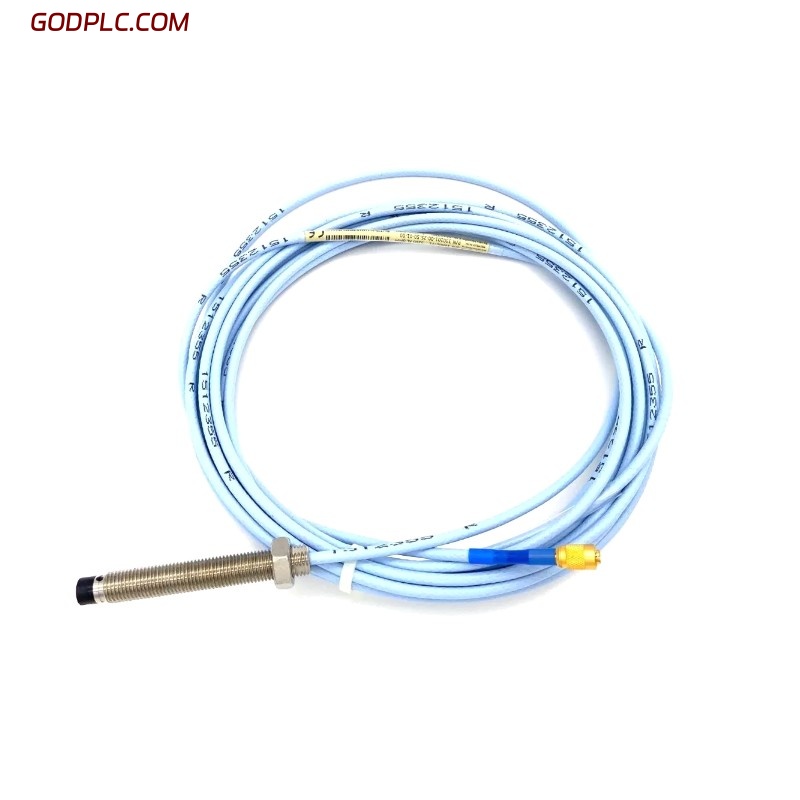

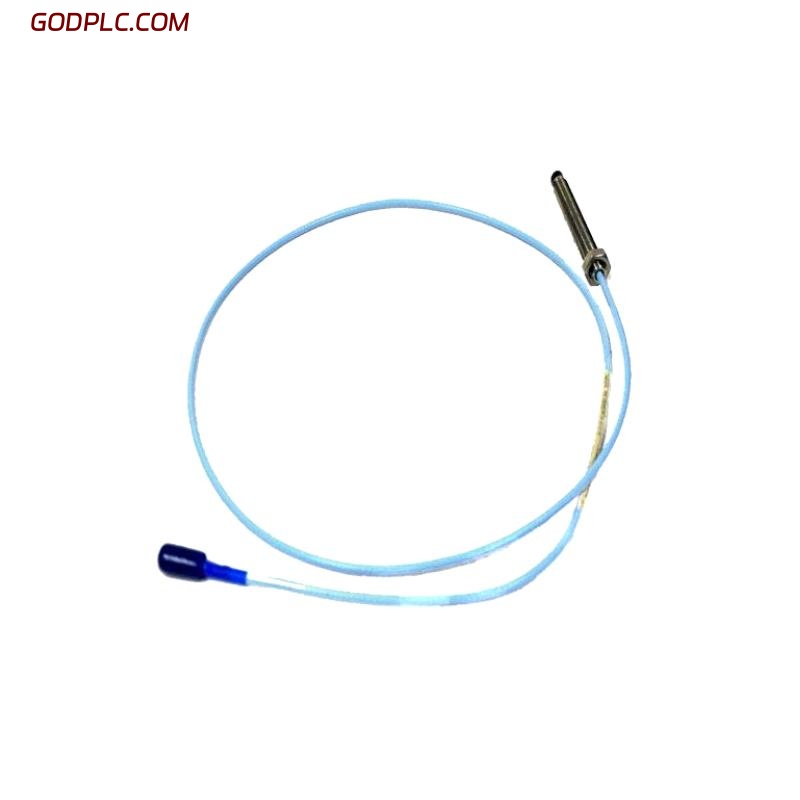

Bently Nevada 330102-00-70-10-02-05 3300 XL 8 mm Proximity Probe
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330102-00-70-10-02-05 |
| Probe Series | 3300 XL 8 mm Proximity Probe (armored) |
| Thread / Mounting | 3/8-24 UNF |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 7.0 in (~177.8 mm) |
| Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Approvals | CSA, ATEX, IECEx |
| Tip Diameter | 8 mm |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | Stainless steel |
| Linear Operating Range | Approx. ±25.4 mm (±1.0 in) |
| Operating Voltage | –17.5 V to –26 V DC |
| Output | Voltage proportional to gap (eddy-current principle) |
| Operating Temperature | –51 °C to +177 °C |
| Maximum Field-Wiring Length | 305 m |
| Environmental Rating | IP67 |
| Dimensions | ~53 × 32 × 100 mm |
| Weight | 0.3 kg |
FAQ
-
Q: What is the primary application for this proximity probe?
A: This probe is used for high‑precision shaft vibration and displacement monitoring in rotating machinery such as turbines, compressors, and motors. -
Q: How long is the probe itself?
A: The case of the probe is 7.0 inches long, providing extended reach for deep or constrained mounting applications. -
Q: What connector type does it use, and how reliable is it?
A: It uses a gold-plated Miniature coaxial ClickLoc connector, which locks by hand with a tactile “click” and resists loosening even under vibration. -
Q: What kind of approval certifications does the probe have?
A: It is certified for hazardous environments with CSA, ATEX, and IECEx approvals, making it suitable for use in explosive or industrial atmospheres. -
Q: What is the measurement (linear) range of this probe?
A: The typical measurement range (linear region) is about ±25.4 mm (±1.0 in), enabling both static position sensing and dynamic vibration measurement. -
Q: What supply voltage does the system require?
A: The probe system operates on –17.5 V to –26 V DC, consistent with the 3300 XL architecture. -
Q: Can it handle extreme temperatures?
A: Yes, the probe is rated for –51 °C up to +177 °C, which covers many harsh industrial environments. -
Q: How heavy and bulky is this probe?
A: The probe weighs about 0.3 kg and has a physical envelope around 53 × 32 × 100 mm, making it rugged but still manageable.
Bently Nevada 330102-00-70-10-02-05 3300 XL 8 mm Proximity Probe is in stock. Please contact us for a quick quote and competitive pricing.
