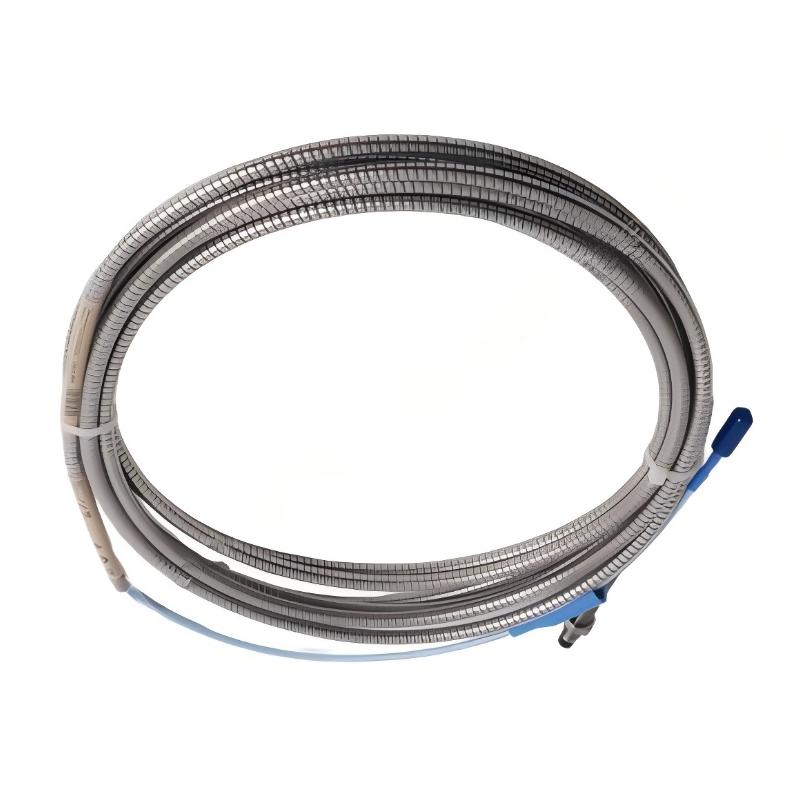

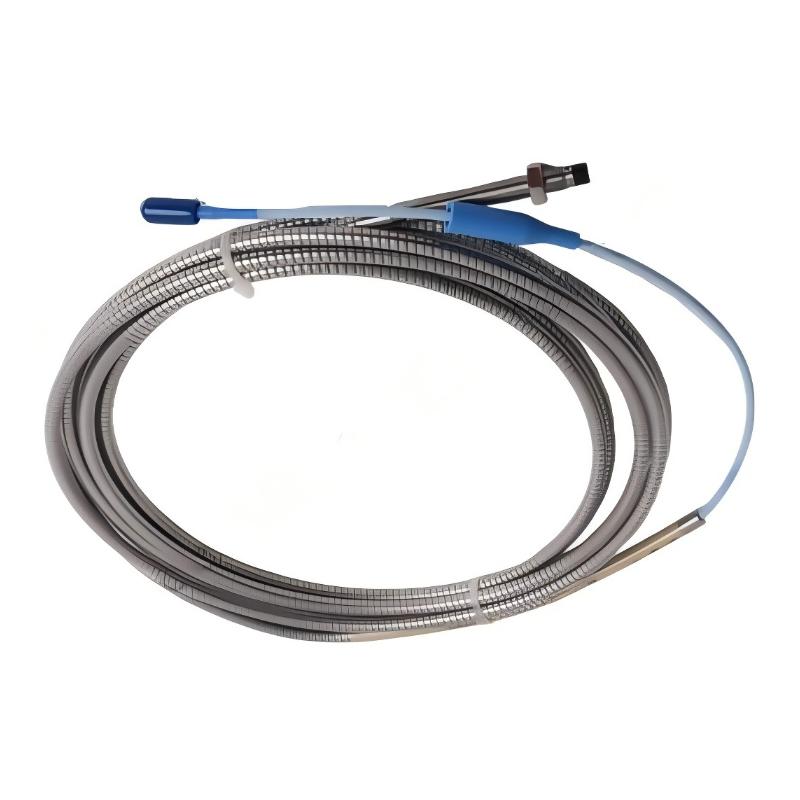

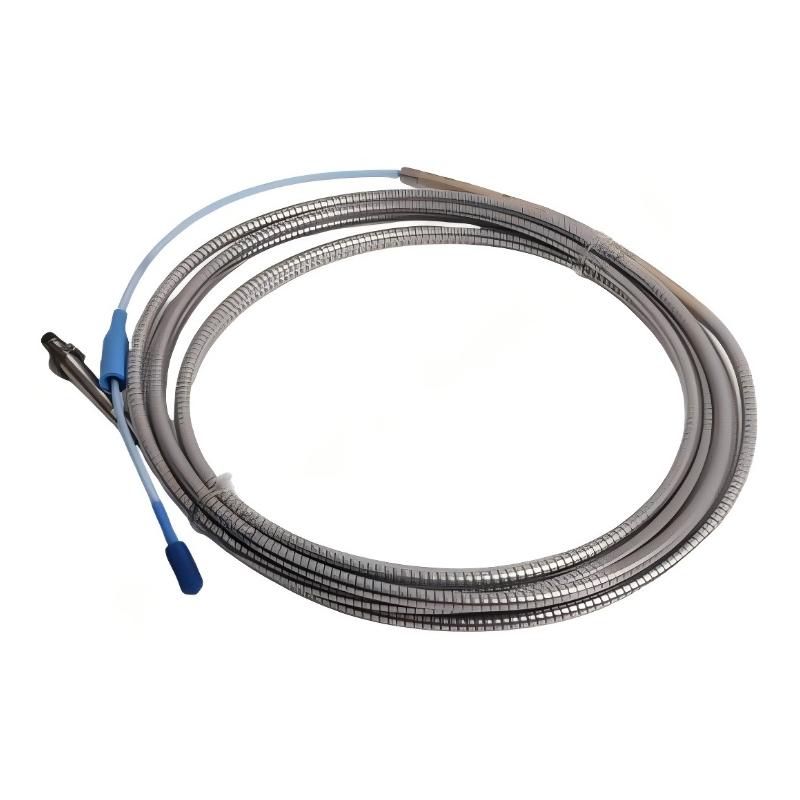

Q1: What is the primary function of the Bently Nevada 330102-12-60-10-02-05 Proximity Probe?
A1: The primary function of this probe is to provide precise, real-time, non-contact measurement of shaft vibration and displacement in rotating machinery. It continuously monitors the distance between the probe tip and the conductive shaft surface, converting microscopic changes in this gap into an electrical signal using eddy current technology. This signal is then used by monitoring systems to evaluate machine condition, detect early mechanical abnormalities, and support predictive maintenance strategies that help prevent unexpected equipment failures and unplanned downtime.

Q2: In what types of equipment is this probe typically used?
A2: This probe is commonly installed on critical rotating machinery such as steam turbines, gas turbines, centrifugal compressors, axial compressors, large industrial pumps, electric motors, and gearboxes. These machines are widely used in industries including power generation, oil and gas production, petrochemical refining, metallurgy, pulp and paper manufacturing, and marine propulsion systems. In such applications, continuous vibration and position monitoring is essential for safe, stable, and efficient operation.

Q3: How does eddy current technology enable accurate vibration measurement?
A3: The probe operates by generating a high-frequency electromagnetic field at its sensing tip. When a conductive metal surface such as a rotating shaft enters this field, eddy currents are induced within the material. Any change in the distance between the probe and the shaft alters the strength of these eddy currents, which in turn changes the output voltage signal. Because this relationship is highly stable and linear within the operating range, it enables extremely accurate measurement of dynamic shaft movement without physical contact or mechanical wear.

Q4: What role does this probe play in machinery protection systems?
A4: In machinery protection systems, this probe serves as a primary sensing element for detecting abnormal mechanical behavior in real time. It continuously monitors vibration amplitude, shaft displacement, and dynamic movement trends. The collected data is analyzed by monitoring systems to identify early warning signs such as imbalance, misalignment, bearing degradation, shaft rub, or mechanical looseness. When predefined thresholds are exceeded, the system can trigger alarms or automatic shutdown actions to prevent severe equipment damage and ensure operational safety.

Q5: What are the key installation requirements for this probe?
A5: Proper installation is critical for reliable measurement performance. The probe must be installed with a precisely calibrated gap between the probe tip and the shaft surface, as this baseline directly affects signal accuracy. Mechanical mounting must be rigid and vibration-resistant to prevent drift during operation. Cable routing should avoid high-voltage equipment, variable frequency drives, and other electromagnetic interference sources. Proper shielding and grounding practices are essential to maintain signal integrity. After installation, system calibration is required to ensure correct measurement scaling and stable operation.

Q6: How is this probe integrated into the 3300 XL monitoring system?
A6: The probe is part of a complete measurement chain within the Bently Nevada 3300 XL platform. It connects to a Proximitor sensor and extension cable assembly. The probe generates a raw eddy current signal based on shaft movement, which is then conditioned and linearized by the Proximitor. The resulting calibrated voltage output is transmitted to a monitoring system for real-time display, trend analysis, alarm processing, and machinery protection logic execution. This integrated architecture ensures consistent and accurate condition monitoring across multiple machine channels.

Q7: How can abnormal or unstable signals be diagnosed?
A7: Signal issues should be diagnosed systematically. First, verify that the probe gap is correctly set and mechanically stable. Next, inspect all cables and connectors for damage, looseness, or contamination. The Proximitor unit should be checked for stable power supply and correct output behavior. If the issue persists, component substitution testing can be used—replacing the probe, cable, or Proximitor individually to isolate the root cause. In addition, environmental factors such as electromagnetic interference, grounding issues, or mechanical resonance should also be evaluated.

Q8: What practices help ensure long-term reliability of this probe?
A8: Long-term reliability depends on proper installation, stable operating conditions, and routine maintenance. The probe should always operate within its calibrated range and remain securely mounted to avoid mechanical drift. Cable routing should be protected from vibration, heat, and electrical noise sources. Periodic inspection of connectors, grounding integrity, and system calibration helps maintain consistent measurement accuracy. Maintaining a clean and stable installation environment further reduces signal degradation and extends the overall service life of the monitoring system.
