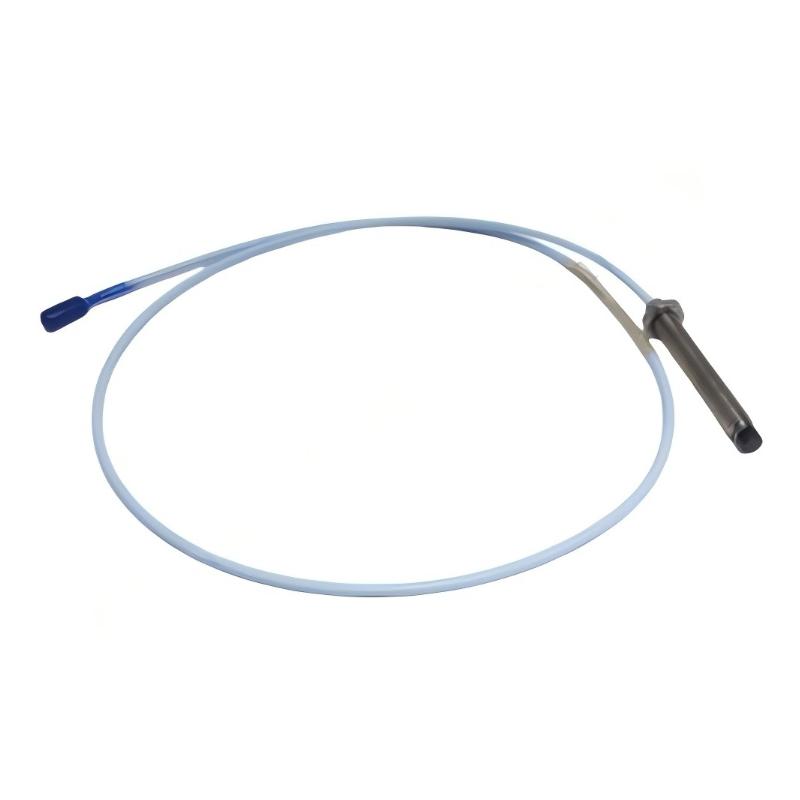

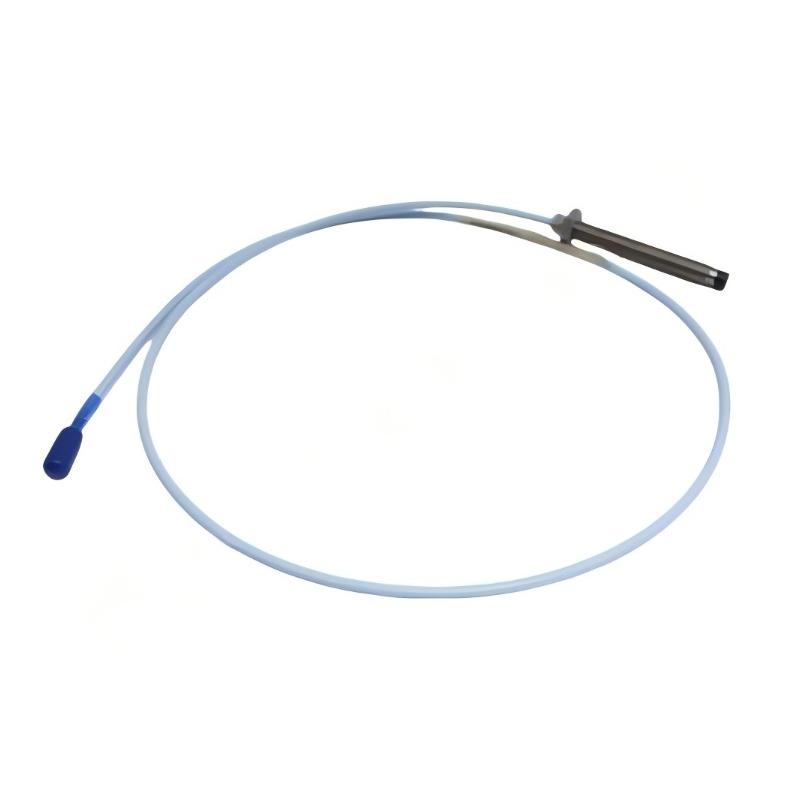

Q1: What is the main function of the Bently Nevada 330102-27-46-10-02-05 Proximity Probe?
A1: This probe is designed for continuous, non-contact measurement of shaft vibration and displacement in rotating machinery. It detects minute changes in the gap between the probe tip and a conductive metal surface and converts them into electrical signals using eddy current technology. These signals are essential for real-time condition monitoring, allowing operators to assess machine stability, detect abnormal behavior, and support predictive maintenance strategies.

Q2: Where is this probe typically used in industrial applications?
A2: It is commonly installed on critical rotating equipment such as steam turbines, gas turbines, compressors, pumps, electric motors, and gearboxes. These machines are widely used in industries including power generation, oil and gas, petrochemical processing, metallurgy, pulp and paper, and marine propulsion. Continuous monitoring in these environments is essential to ensure operational reliability and prevent unexpected failures.

Q3: How does eddy current sensing technology work in this probe?
A3: The probe generates a high-frequency electromagnetic field at its sensing tip. When a conductive surface such as a rotating shaft enters this field, eddy currents are induced in the material. Any change in the distance between the probe and the shaft affects the strength of these eddy currents, resulting in a corresponding change in output voltage. This allows highly accurate, real-time measurement of shaft movement without physical contact.

Q4: What role does this probe play in machinery protection systems?
A4: The probe serves as a primary sensor in machinery protection systems by continuously monitoring vibration and shaft position. The collected data is analyzed to identify early warning signs such as imbalance, misalignment, bearing wear, or mechanical looseness. If abnormal conditions exceed predefined thresholds, the system can initiate alarms or automatic shutdown actions to protect equipment from damage.

Q5: What are the key installation requirements for this probe?
A5: Proper installation requires precise setting of the probe-to-shaft gap according to calibration specifications. The probe must be firmly mounted to prevent movement during operation. Cable routing should avoid high-voltage equipment and electromagnetic interference sources. Proper shielding and grounding are essential to maintain signal integrity, and system calibration must be completed after installation for accurate operation.

Q6: How is this probe integrated into the 3300 XL system architecture?
A6: The probe is part of a complete measurement chain that includes a Proximitor sensor and extension cable. The raw eddy current signal generated by the probe is conditioned and linearized by the Proximitor, producing a calibrated voltage output. This output is then sent to a monitoring system for real-time analysis, alarm processing, and machinery protection functions.

Q7: How can abnormal signal behavior be diagnosed?
A7: Troubleshooting begins by verifying probe gap accuracy and mechanical mounting stability. Next, inspect cables and connectors for damage, looseness, or contamination. The Proximitor unit should be checked for correct power supply and stable output. If the issue persists, component substitution (probe, cable, or Proximitor) can help isolate the fault source quickly and accurately.

Q8: What practices help ensure long-term reliability of this probe?
A8: Long-term reliability depends on stable mechanical installation, proper cable routing, and protection from environmental interference. Regular inspection of connections, grounding integrity, and calibration accuracy is recommended. Keeping the installation environment clean and avoiding excessive vibration or mechanical stress also helps maintain consistent performance and extend service life.
