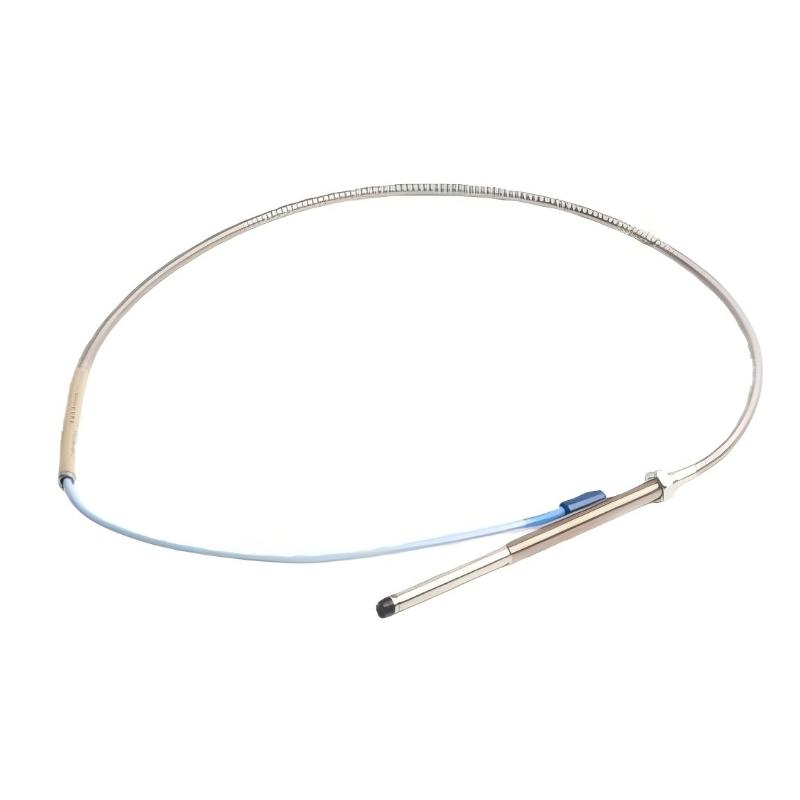

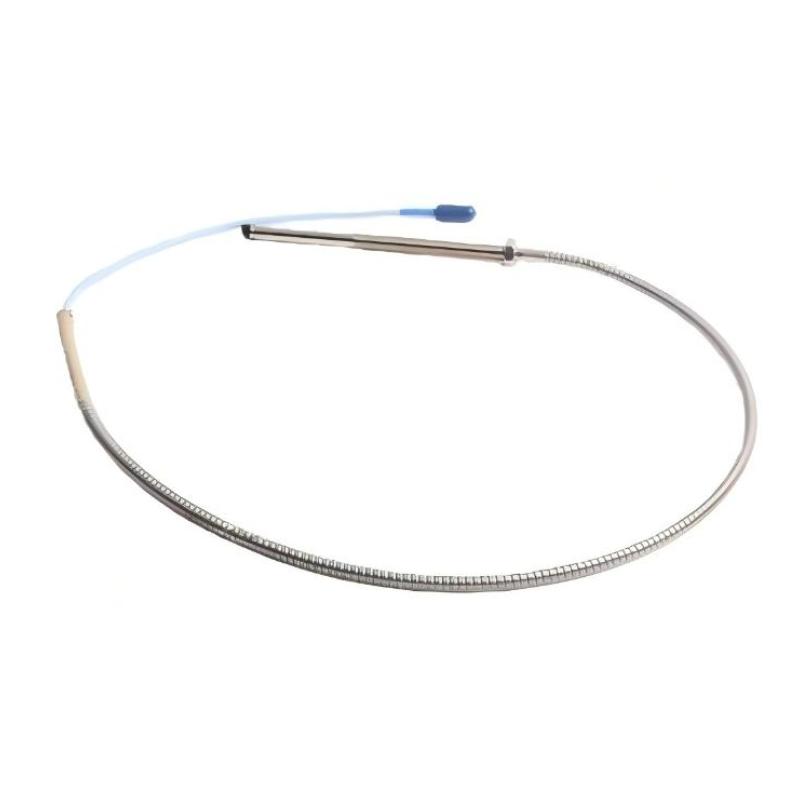

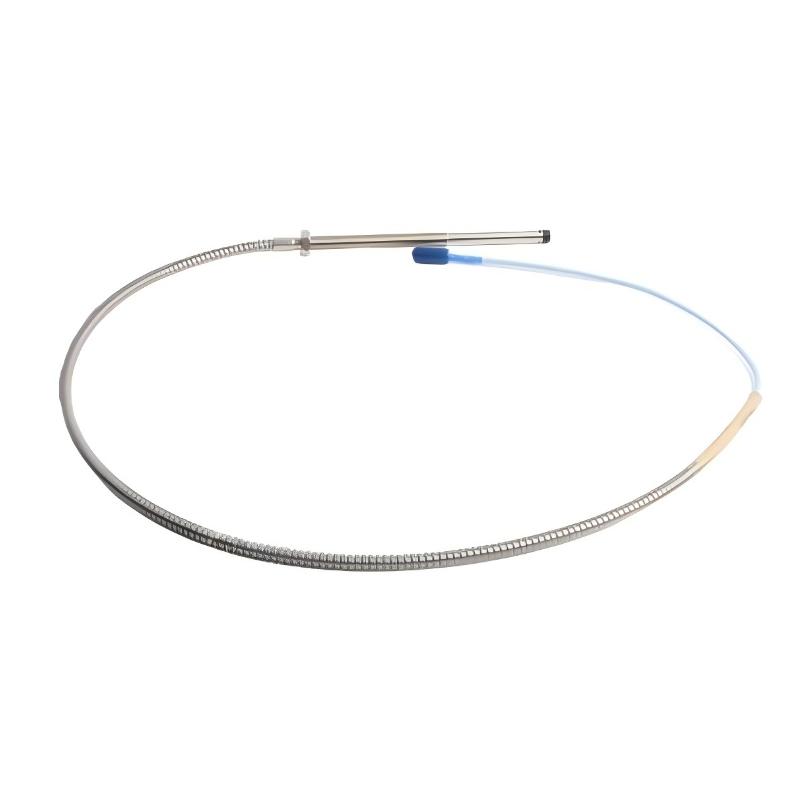

Q1: What is the primary function of the Bently Nevada 330102-36-80-10-02-05 Proximity Probe?
A1: This probe is designed for continuous, non-contact measurement of shaft vibration and displacement in rotating machinery. It uses eddy current technology to detect extremely small changes in the gap between the probe tip and a conductive metal shaft. These changes are converted into proportional electrical signals, enabling real-time monitoring of shaft motion. The data is essential for assessing machine condition, identifying early-stage mechanical issues, and supporting predictive maintenance strategies that help prevent unexpected equipment failures.

Q2: Where is this probe typically used in industrial environments?
A2: The probe is commonly used in critical rotating equipment such as steam turbines, gas turbines, compressors, pumps, electric motors, and gearboxes. These machines are widely deployed in industries including power generation, oil and gas, petrochemical processing, metallurgy, pulp and paper, and offshore installations. In these environments, continuous monitoring of vibration and shaft position is essential to ensure operational safety, efficiency, and equipment reliability under demanding conditions.

Q3: How does eddy current measurement technology work in this probe?
A3: The probe operates by generating a high-frequency electromagnetic field at its sensing tip. When a conductive material such as a rotating shaft enters this field, eddy currents are induced within the surface of the metal. As the distance between the probe and the shaft changes, the strength of these eddy currents varies proportionally. This variation directly affects the output voltage signal. Because this relationship is highly stable and linear within the operating range, it allows accurate, repeatable, and real-time measurement of shaft movement without physical contact or mechanical wear.

Q4: What role does this probe play in machinery protection systems?
A4: In machinery protection systems, this probe serves as a primary sensing element that continuously monitors shaft vibration and displacement. The collected data is transmitted to a monitoring system where it is analyzed for abnormal patterns such as imbalance, misalignment, bearing wear, shaft rub, or mechanical looseness. When predefined thresholds are exceeded, the system can trigger alarms or automatic shutdown actions to protect equipment from severe damage. This makes the probe a critical component for preventing catastrophic failures and ensuring operational continuity.

Q5: What are the key installation requirements for this probe?
A5: Proper installation is essential for reliable performance. The probe must be positioned with a precisely calibrated gap relative to the shaft surface, as this reference distance directly affects measurement accuracy. It should be mounted securely to prevent movement or vibration-induced drift during operation. Cable routing must avoid proximity to high-voltage equipment, variable frequency drives, and other sources of electromagnetic interference. Proper shielding and grounding practices are required to maintain signal integrity, and system calibration must be completed after installation.

Q6: How is this probe integrated into the 3300 XL monitoring system?
A6: The probe functions as part of a complete measurement chain within the Bently Nevada 3300 XL system. It works together with a Proximitor sensor and extension cable. The probe generates a raw eddy current signal based on shaft movement, which is then conditioned, linearized, and calibrated by the Proximitor module. The resulting voltage output is transmitted to a monitoring system for real-time processing, trend analysis, alarm evaluation, and machinery protection logic execution.

Q7: How can signal instability or abnormal readings be diagnosed?
A7: Troubleshooting begins with verifying that the probe gap is correctly set and remains mechanically stable. Next, all cables and connectors should be inspected for looseness, corrosion, or damage. The Proximitor unit should be checked for stable power supply and correct output behavior. If issues persist, component substitution testing—replacing the probe, cable, or Proximitor—can help isolate the root cause. Environmental factors such as electromagnetic interference, grounding issues, or mechanical resonance should also be evaluated.

Q8: What practices help ensure long-term reliability of this probe?
A8: Long-term reliability depends on proper installation, stable operating conditions, and routine maintenance. The probe should remain securely mounted within its calibrated range to avoid measurement drift. Cable routing should be protected from heat, vibration, and electromagnetic noise sources. Regular inspection of connectors, grounding integrity, and system calibration helps maintain consistent accuracy. Maintaining a clean installation environment and avoiding excessive mechanical stress further improves durability and service life.
