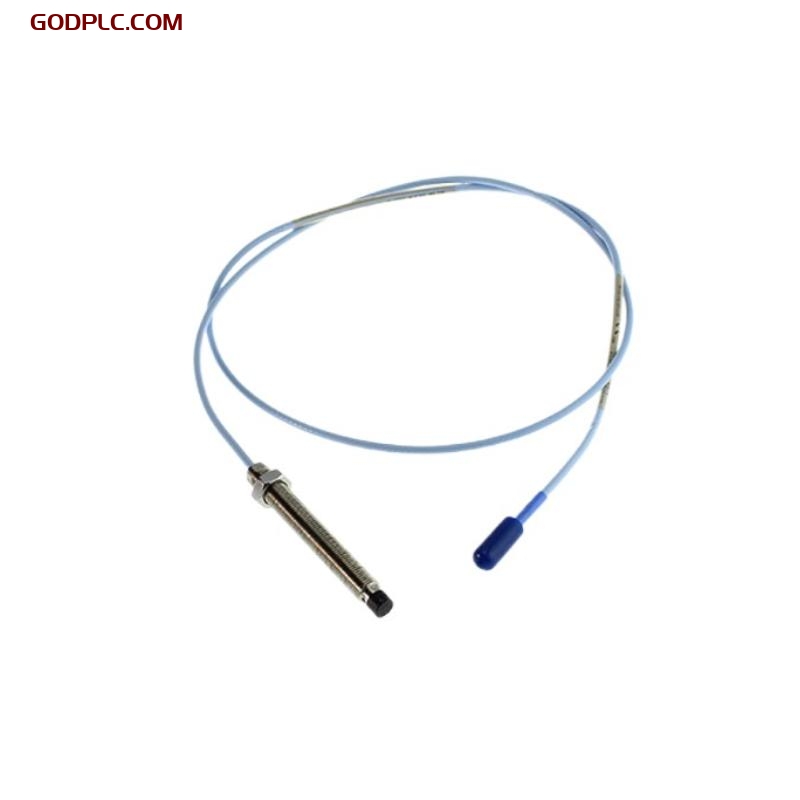

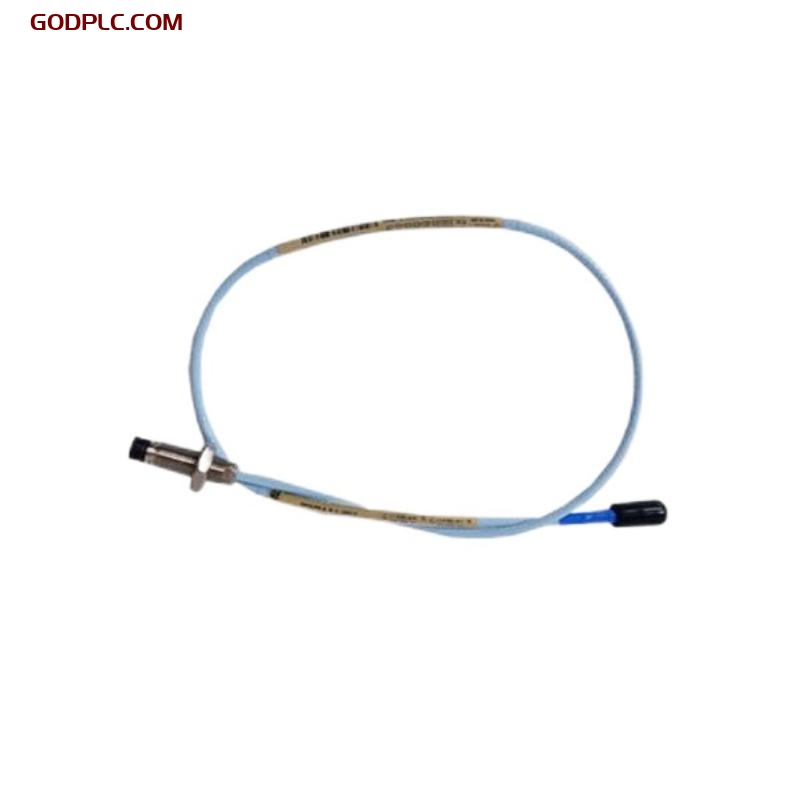

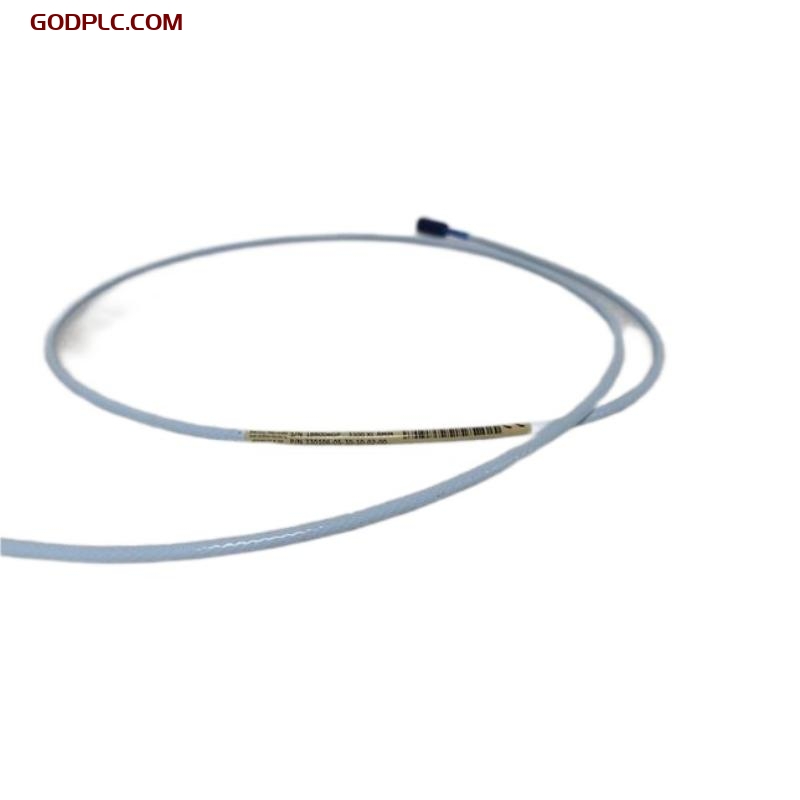

Bently Nevada 330103-00-03-05-02-05 3300 XL 8 mm Proximity Probe
Product Overview
The Bently Nevada 330103-00-03-05-02-05 3300 XL 8 mm Proximity Probe is designed to deliver precise vibration and position measurements in rotating machinery for predictive maintenance and condition monitoring applications. Part of the 3300 XL series, this probe offers an 8 mm sensing range and is engineered to operate reliably in harsh industrial environments, such as power generation, oil and gas, and manufacturing. The robust design ensures excellent durability and long service life, making it ideal for high-speed rotating equipment such as turbines, motors, and compressors.
Key Features
-
8 mm Sensing Range – Provides precise measurement of displacement in rotating machinery, ensuring accurate vibration monitoring
-
High Sensitivity and Resolution – Offers exceptional resolution for early detection of machinery faults and maintenance needs
-
Durable and Rugged Design – Built to withstand extreme temperatures, high vibrations, and corrosive environments commonly found in industrial applications
-
Easy Installation – Flexible mounting options for convenient installation and maintenance, including threaded and flush mounting options
-
Environmental Protection – Designed to operate in extreme environmental conditions with high protection ratings against dust, moisture, and temperature fluctuations
-
Seamless Integration – Fully compatible with Bently Nevada’s 3300 series monitoring systems for smooth data integration and system operation
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Total Length: 0.5meters |
| Weight | 0.323 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Sensing Distance | 8 mm ± 0.25 mm |
| Output Signal | 4-20 mA DC (standard) |
| Resolution | High resolution for accurate displacement measurement |
| Cable Type | Compatible with 3300 XL Proximity Cable (up to 15 meters) |
| Mounting Thread | 1/2-20 UNF (standard) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -40°C to +120°C |
| Storage Temp | -55°C to +125°C |
| Humidity | 0%–100% non-condensing |
| Vibration Tolerance | Up to 20 g RMS continuous |
| Protection | IP67 (when installed correctly) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Compatible with 3300 XL Series Monitoring Systems |
| Mounting | 3300 XL Transducer (various mounting configurations) |
| Configuration Tools | Bently Nevada System 1, Rover Software, 3500 System |
| Redundancy Support | Yes – suitable for redundant configurations |
Industry Applications
-
Oil & Gas – Provides critical vibration monitoring for high-speed rotating machinery in oil rigs, pumps, and compressors to ensure operational reliability
-
Power Generation – Used to monitor turbines and generators, detecting faults early to prevent unplanned outages and extend equipment life
-
Chemical Processing – Monitors agitators, pumps, and compressors in chemical plants, offering early warning signals for maintenance needs
-
Mining & Metals – Essential for monitoring crushers, mills, and conveyors to avoid equipment failures and improve plant uptime
-
Water & Wastewater – Monitors pumps and motors in water treatment plants, ensuring efficient operation and reducing the likelihood of unanticipated downtime
The Bently Nevada 330103-00-03-05-02-05 3300 XL 8 mm Proximity Probe provides precise, high-resolution displacement measurement for critical rotating machinery. Its rugged construction, high sensitivity, and compatibility with Bently Nevada’s 3300 series monitoring systems make it an indispensable tool for predictive maintenance, enabling early detection of potential issues and minimizing downtime in various industrial sectors.
