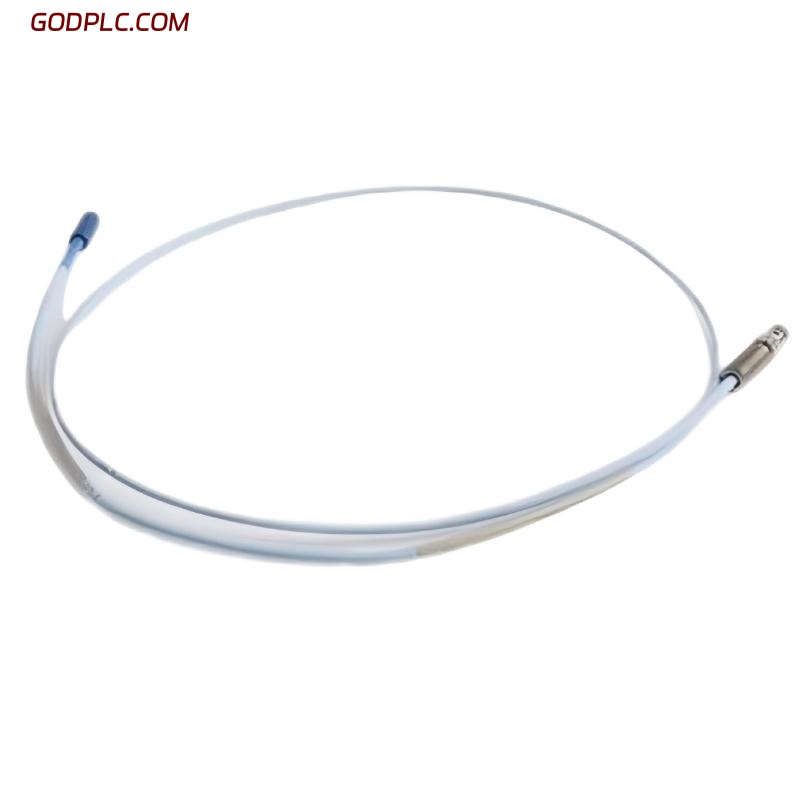

Bently Nevada 330106-05-30-10-02-05 3300 XL 8 mm Reverse Mount Probe
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | 3300 XL 8 mm Reverse Mount Probe |
| Model Number | 330106-05-30-10-02-05 |
| Manufacturer | Bently Nevada |
| Probe Type | Eddy Current Proximity Probe |
| Probe Diameter | 8 mm |
| Mounting Type | Reverse Mount |
| Total Length | 1.0 m |
| System Compatibility | Compatible with 3300 XL Proximitor Sensors and extension cables |
| Measurement Range | Up to approximately 2 mm (80 mils), depending on system configuration |
| Frequency Response | Up to approximately 10 kHz |
| Operating Temperature | −35°C to +177°C |
| Cable Type | Integral coaxial cable |
| Connector Type | ClickLoc coaxial connector |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Housing Material | Stainless Steel |
| Environmental Protection | Designed for harsh industrial environments |
| Dimensions | Probe diameter approx. 8 mm, overall structure depending on installation configuration |
| Weight | 0.323 kg |
FAQ
1. What is the primary function of this probe?
This probe is used for non-contact vibration and displacement measurement in rotating machinery such as turbines, compressors, pumps, and motors.
2. What does reverse mounting mean for this probe?
Reverse mounting means the probe is installed from the inside of the mounting bracket or housing, allowing the probe body to remain protected within the structure and improving mechanical stability.
3. Which systems can this probe be used with?
It is typically used with 3300 XL Proximitor sensors and matched extension cables to form a complete eddy-current displacement measurement system.
4. What is the measurement principle of this probe?
The probe operates based on eddy current technology. It generates a high-frequency electromagnetic field, and when a conductive target approaches the probe tip, the change in the field is converted into an electrical signal proportional to the distance.
5. What are the key considerations during installation?
Proper gap setting, secure mounting, correct target material, and matching extension cable and proximitor sensor are important to ensure accurate and stable measurements.
6. Is the probe suitable for harsh industrial environments?
Yes, it is designed for demanding industrial conditions and can operate reliably in environments with high vibration, temperature variations, and electromagnetic interference.
7. What factors can affect measurement accuracy?
Accuracy can be influenced by target material properties, cable length matching, installation gap settings, electromagnetic interference, and mechanical mounting stability.
8. How is the probe connected to a monitoring system?
The probe connects to a proximitor sensor through an extension cable. The proximitor converts the probe signal into a proportional voltage output that can be sent to vibration monitoring or machinery protection systems.
Bently Nevada 330106-05-30-10-02-05 3300 XL 8 mm Reverse Mount Probe is in stock. Please contact us for a quick quote and competitive pricing.
