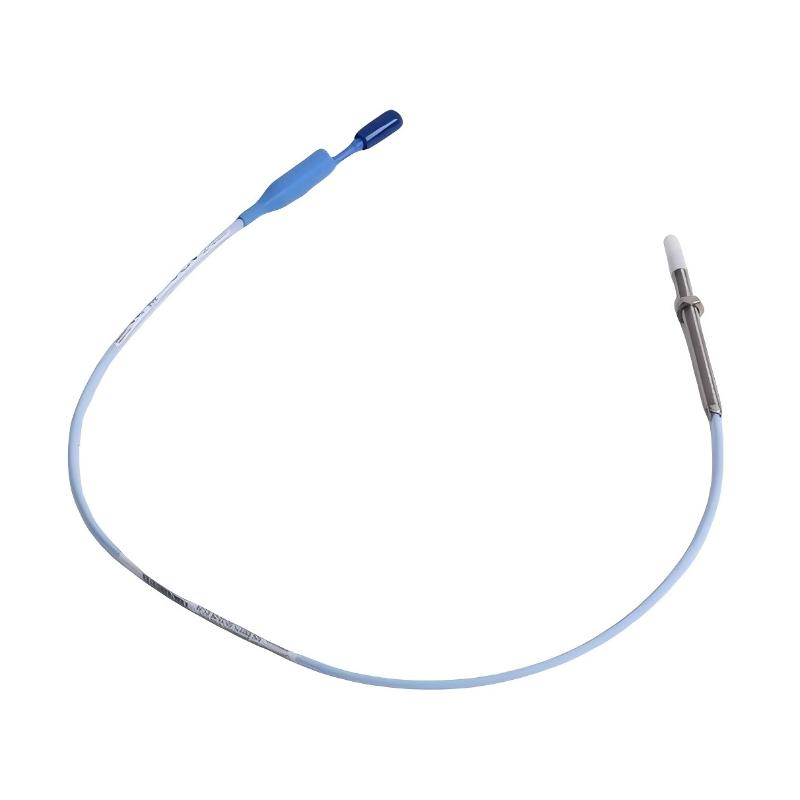

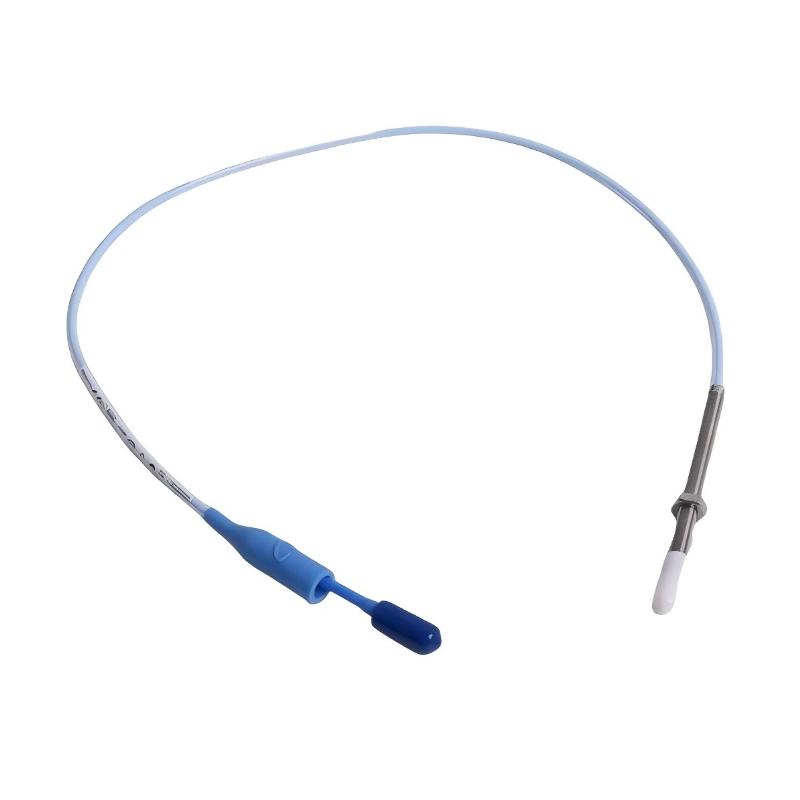

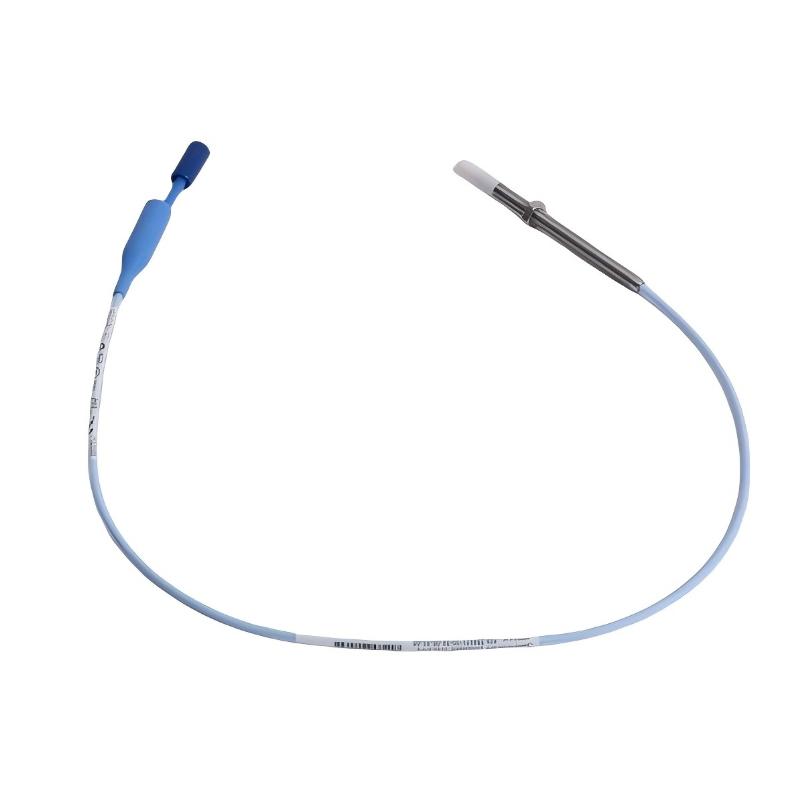

Q1: What is the primary function of the Bently Nevada 330171-00-08-10-02-05 proximity probe?
A: The primary function of this proximity probe is to measure shaft vibration, axial displacement, and gap variation in rotating machinery using the eddy current measurement principle. It operates as a non-contact sensor, generating an electromagnetic field between the probe tip and the metal target surface. When the shaft moves or vibrates, the characteristics of this field change, producing a corresponding electrical signal. This signal is then processed by a proximitor module to provide accurate, real-time data for machinery condition monitoring and protection systems.

Q2: Where is this probe typically used in industrial applications?
A: This probe is widely used in critical rotating equipment across industries such as power generation, oil and gas, petrochemical processing, metallurgy, and heavy manufacturing. Common applications include steam turbines, gas turbines, centrifugal compressors, pumps, motors, and industrial fans. These machines require continuous monitoring of vibration and shaft position to ensure safe operation, prevent unexpected failures, and support predictive maintenance strategies.

Q3: What advantages does eddy current measurement technology offer?
A: Eddy current measurement technology provides several key advantages. It is a non-contact method, meaning there is no physical wear on the probe or shaft surface. It offers high resolution and fast response, allowing detection of extremely small displacement changes. It also performs reliably in harsh environments, including high temperature, high pressure, oil contamination, and industrial vibration. These characteristics make it ideal for long-term continuous monitoring of rotating machinery.

Q4: What can cause unstable or abnormal measurement signals?
A: Unstable signals can result from several factors, including improper probe installation, incorrect gap setting, surface contamination on the shaft, loose electrical connections, or damaged cables. External electromagnetic interference or incorrect system calibration may also affect signal stability. A systematic inspection of mechanical mounting, electrical wiring, and system configuration is usually required to identify the root cause.

Q5: What are the key installation requirements for this probe?
A: Proper installation requires maintaining the correct gap between the probe tip and the target shaft surface, as this directly affects measurement accuracy. The probe must be securely mounted to prevent movement due to vibration. Cable routing should avoid high-power electrical lines to reduce electromagnetic interference. Additionally, the probe orientation must align with the required measurement direction to ensure accurate vibration data acquisition.

Q6: Is this probe compatible with other monitoring systems?
A: This probe is specifically designed for the Bently Nevada 3300 system, with calibrated electrical characteristics and signal behavior tailored to this platform. While physical connection might appear possible in some cases, using it outside the intended system is not recommended, as it may lead to signal mismatch, inaccurate readings, or reduced measurement reliability.

Q7: How can long-term reliability of the probe be improved?
A: Long-term reliability depends on correct installation, stable operating conditions, and regular inspection. The probe should always operate within its designed gap range and be protected from mechanical impact or misalignment. Cable connections should be checked periodically for looseness or degradation. In harsh environments, additional protective measures may be required to extend service life and maintain measurement accuracy.

Q8: Why is this probe critical in predictive maintenance systems?
A: In predictive maintenance systems, the proximity probe provides foundational vibration and displacement data that reflects the true mechanical condition of rotating equipment. Early-stage faults such as bearing wear, imbalance, misalignment, or rotor instability often appear first as subtle changes in vibration signals. By continuously monitoring these signals, operators can detect abnormal trends early, schedule maintenance proactively, and prevent unexpected equipment failures, making the probe a critical element in machinery protection and reliability systems.
