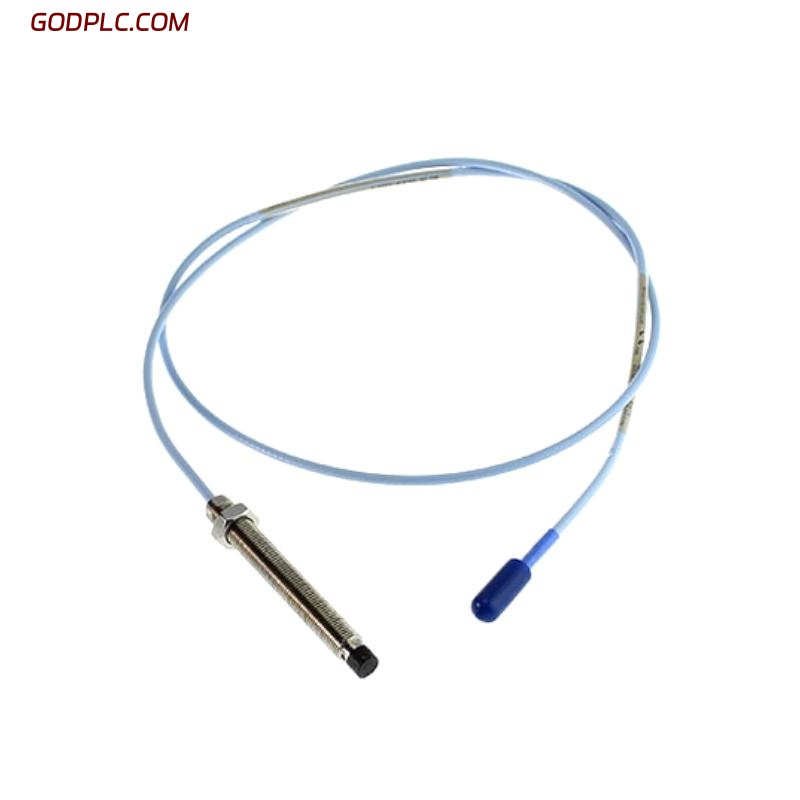

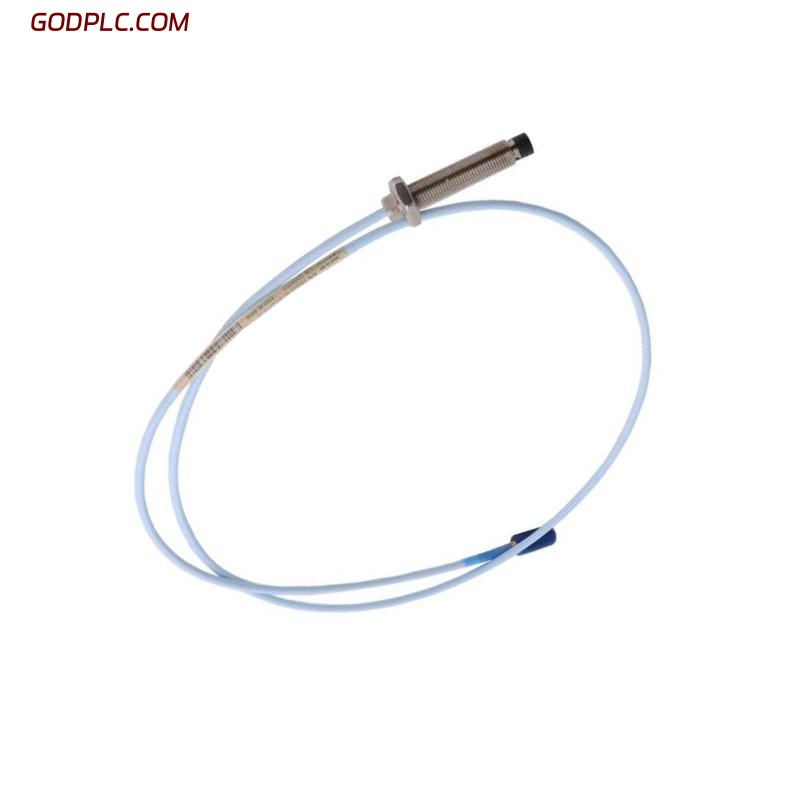

Bently Nevada 330171-00-12-05-02-00 3300 5mm Proximity Probe
Product Overview
The Bently Nevada 330171-00-12-05-02-00 3300 5mm Proximity Probe is a compact, high-precision sensor designed for the continuous monitoring of machine health in industrial environments. Part of the renowned 3300 series, this 5mm proximity probe provides accurate and reliable shaft displacement measurements, helping to detect early signs of machine faults such as misalignment, imbalance, and excessive vibration. Engineered for use in a wide range of applications, including power generation, chemical processing, and manufacturing, the 3300 5mm Proximity Probe offers exceptional performance in conditions where minimal clearance is required. Its durable, corrosion-resistant construction ensures reliable operation even in harsh environments, making it an essential tool for predictive maintenance and reducing unplanned downtime.
Key Features
-
High-Precision Sensing – Provides accurate measurement of small displacements, with a sensing range of 5 mm, ideal for monitoring machine shaft position and vibration
-
Compact Design – The small 5mm sensing range allows for installation in tight spaces and environments with limited clearance
-
Durable and Reliable – Built to withstand harsh industrial conditions, including high vibrations, wide temperature ranges, and exposure to chemicals
-
Corrosion-Resistant Housing – Engineered with materials that resist corrosion, ensuring long-term performance and reliability even in demanding applications
-
Broad Compatibility – Fully compatible with Bently Nevada 3300 series machinery monitoring systems, facilitating easy integration into existing setups
-
Real-Time Fault Detection – Provides early detection of mechanical faults such as misalignment and imbalance, helping to avoid costly breakdowns and downtime
-
Simplified Installation – Designed for quick and easy installation, minimizing system downtime during setup and maintenance
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Total Length: 0.5 meter |
| Weight | 0.161 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Probe Type | 3300 5mm Proximity Probe |
| Measurement Range | 5 mm |
| Operating Voltage | 24 V DC |
| Output Signal | Linear voltage output |
| Frequency Response | Wideband for dynamic monitoring |
| Cable Length | 10 ft (standard) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -40°C to +120°C |
| Storage Temp | -50°C to +125°C |
| Humidity | 0%–95% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
| Protection | IP65 (when installed) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Bently Nevada 3300 Series |
| Module Type | Proximity Probe |
| Compatible Systems | Bently Nevada Machinery Monitoring Systems |
Industry Applications
-
Power Generation – Ideal for monitoring rotating machinery, such as turbines and generators, to ensure optimal performance and prevent damage from vibration or misalignment
-
Chemical Processing – Used to measure shaft displacement and detect early signs of imbalance or misalignment in critical equipment in chemical plants
-
Manufacturing – Monitors high-speed rotating equipment such as motors, compressors, and pumps to ensure smooth operation and prevent equipment failure
-
Oil & Gas – Detects misalignment and vibration in pumps, compressors, and turbines in upstream and downstream oil and gas operations
-
Pulp and Paper – Ensures continuous monitoring of large machinery such as paper machines and pumps, enhancing production efficiency and minimizing downtime
The Bently Nevada 330171-00-12-05-02-00 3300 5mm Proximity Probe is a reliable, high-accuracy solution for monitoring the condition of industrial machinery. Its compact design, exceptional sensing accuracy, and compatibility with Bently Nevada 3300 series monitoring systems make it an essential tool for predictive maintenance and minimizing equipment failures. Built to withstand challenging industrial environments, this proximity probe ensures long-term, reliable operation in applications where precision and durability are paramount.
