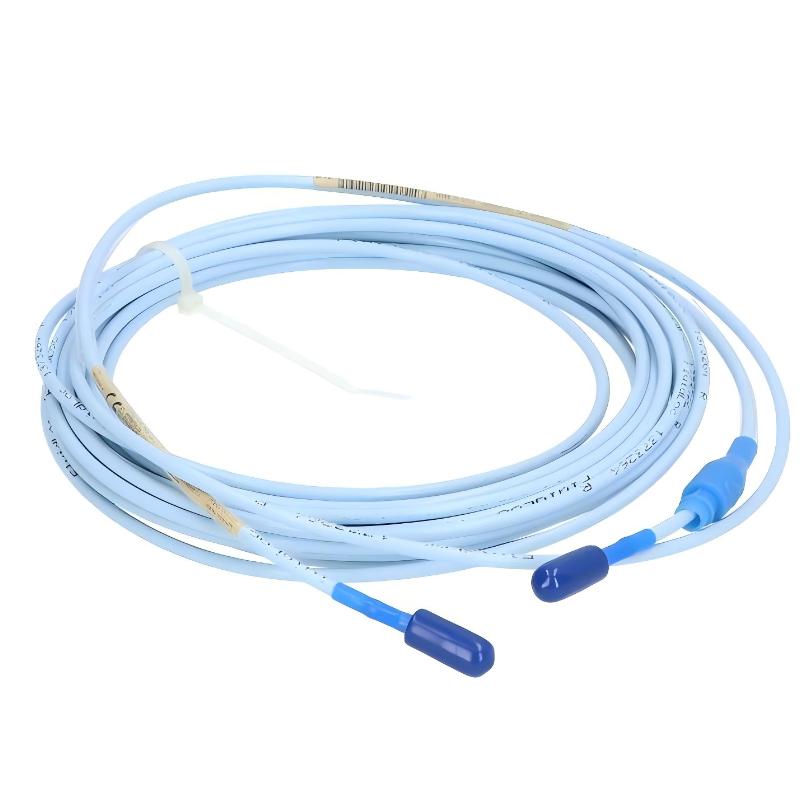

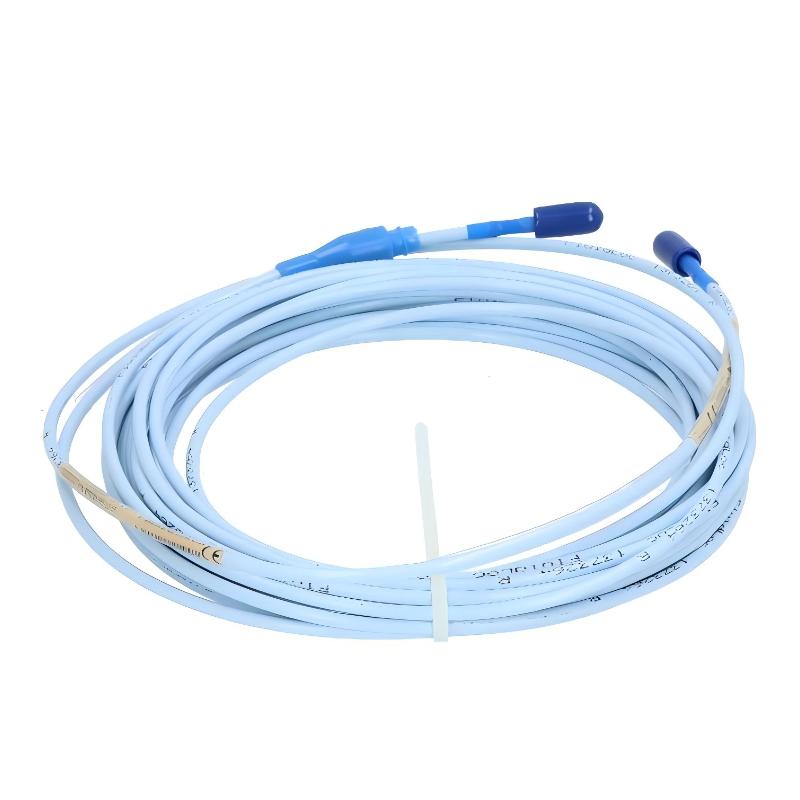

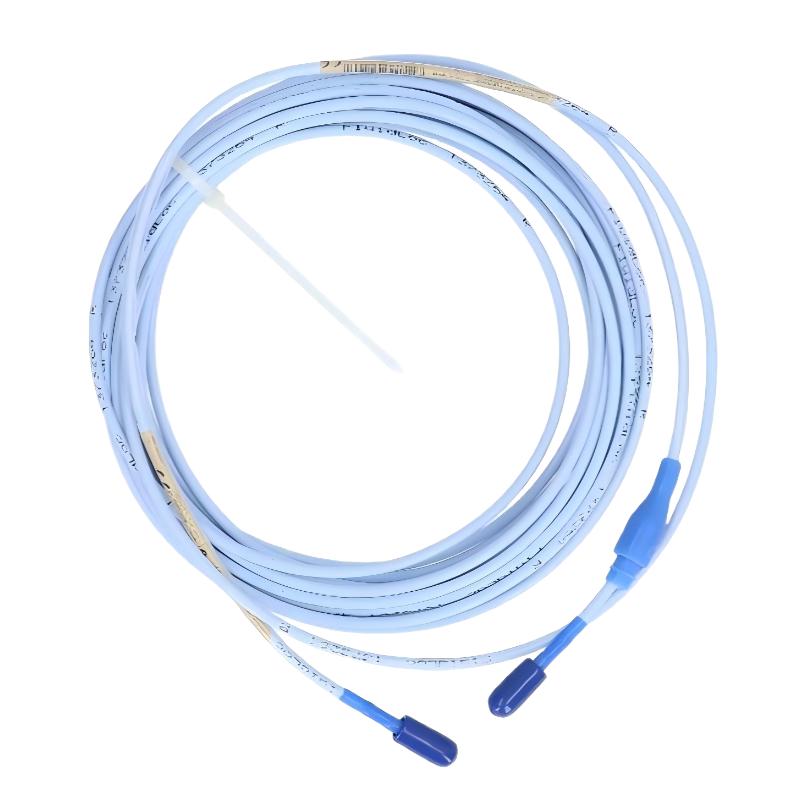

1. What is the Bently Nevada 330190-085-01-00 3300 XL ETR Extension Cable mainly used for?

The Bently Nevada 330190-085-01-00 3300 XL ETR Extension Cable is mainly used to extend the connection distance between a proximity probe and a Proximitor Sensor in Bently Nevada eddy current monitoring systems.

In rotating machinery condition monitoring applications, proximity probes are usually installed close to the measured shaft, while monitoring modules may be installed in control cabinets or equipment panels. The extension cable provides a reliable signal transmission path between these components, allowing vibration and displacement signals to be transferred accurately.

This cable is commonly used in critical industrial equipment such as steam turbines, gas turbines, compressors, generators, and large rotating machines. By maintaining stable signal transmission, it helps ensure accurate monitoring data and supports machinery protection, predictive maintenance, and fault diagnosis.

2. How does the 3300 XL ETR Extension Cable work with the Bently Nevada monitoring system?

The 330190-085-01-00 extension cable works as an intermediate connection component between the proximity probe and the Proximitor Sensor within a Bently Nevada 3300 XL monitoring system.

The proximity probe detects changes in the distance between the probe tip and the rotating shaft using eddy current technology. The measurement signal is then transmitted through the extension cable to the Proximitor Sensor, which processes the signal and converts it into usable monitoring data.

The extension cable ensures that the probe can be installed at the optimal measurement location while allowing the electronic processing equipment to remain in a suitable installation area. This design improves system flexibility and helps maintain stable monitoring performance in industrial environments.

3. What should be considered when installing the Bently Nevada 330190-085-01-00 extension cable?

During installation of the 330190-085-01-00 extension cable, proper routing, connection, and protection are important to maintain reliable signal transmission.

The cable should be installed according to system requirements, avoiding areas with excessive mechanical stress, strong vibration, or potential damage from moving equipment. It should also be routed away from high-power electrical cables whenever possible to reduce electromagnetic interference.

Before operation, technicians should check that all connectors are properly connected and secured. Any loose connection or incorrect installation may result in unstable signals, incorrect measurements, or monitoring system alarms.

After installation, the complete measurement circuit should be tested, including the proximity probe, extension cable, Proximitor Sensor, and monitoring system, to confirm proper signal transmission.

4. What are the common causes of signal problems with the 330190-085-01-00 extension cable?

Signal problems related to the Bently Nevada 330190-085-01-00 extension cable may be caused by cable damage, poor connections, environmental interference, or incorrect installation.

Physical damage to the cable, such as cuts, crushing, or excessive bending, can affect signal transmission quality. Loose connectors or poor contact points may also create intermittent signals or unstable monitoring values.

In industrial environments, strong electromagnetic interference from motors, power equipment, or frequency converters may influence measurement signals if cable routing is not properly managed.

Troubleshooting should include checking the cable condition, connector status, signal continuity, and compatibility with the connected proximity probe and Proximitor Sensor. A complete inspection of the signal path helps identify and resolve cable-related problems effectively.

5. What are the advantages of using the Bently Nevada 330190-085-01-00 extension cable?

The Bently Nevada 330190-085-01-00 3300 XL ETR Extension Cable provides reliable signal transmission for eddy current measurement systems used in critical rotating machinery applications.

Its main advantage is maintaining signal integrity between the proximity probe and Proximitor Sensor, allowing monitoring systems to receive accurate vibration and displacement data. Stable signal transmission is essential for detecting early equipment problems and ensuring reliable machinery protection.

The cable is designed for industrial monitoring environments and supports continuous operation in applications where equipment reliability is critical. By providing a dependable connection path, it improves system installation flexibility and helps maintain accurate condition monitoring performance.

6. What problems can occur if the 330190-085-01-00 cable is damaged?

If the 330190-085-01-00 extension cable is damaged, the monitoring system may experience signal instability, incorrect measurement values, intermittent communication, or complete signal loss.

Because the cable carries important displacement and vibration measurement signals, any damage to the internal conductors, shielding layer, or connectors can affect monitoring accuracy.

In critical rotating machinery, unstable signals may lead to incorrect equipment condition analysis or unnecessary alarms. If a damaged cable is suspected, technicians should inspect the entire cable path, verify electrical continuity, and compare monitoring values with normal operating conditions.

Replacing damaged cables promptly helps restore reliable signal transmission and prevents monitoring system failures.

7. How can the long-term reliability of the 330190-085-01-00 extension cable be maintained?

To maintain long-term reliability of the Bently Nevada 330190-085-01-00 extension cable, proper installation practices and regular inspection are required.

The cable should be installed with appropriate routing methods to prevent mechanical stress, excessive bending, and environmental damage. Connectors should be checked periodically to ensure they remain clean, secure, and free from corrosion.

During routine equipment maintenance, technicians should review monitoring system performance and inspect the cable condition if abnormal signals occur.

For critical machinery applications, preventive inspection of signal cables can help identify potential problems before they affect equipment protection functions. Proper maintenance improves system availability and ensures stable operation of the monitoring system.

8. What should be checked when replacing the Bently Nevada 330190-085-01-00 extension cable?

When replacing the 330190-085-01-00 extension cable, the replacement cable should first be confirmed to match the existing monitoring system requirements, including compatibility with the proximity probe and Proximitor Sensor.

Before removing the existing cable, technicians should record the original connection arrangement and system configuration. This helps prevent wiring errors during installation of the new cable.

After replacement, all connections should be checked carefully, and the monitoring system should be tested to confirm stable signal transmission. The proximity probe output, Proximitor Sensor operation, and monitoring data should all be verified.

A correct replacement process helps prevent signal interruptions, inaccurate measurements, and unnecessary alarms, ensuring reliable operation of the Bently Nevada 3300 XL monitoring system.
