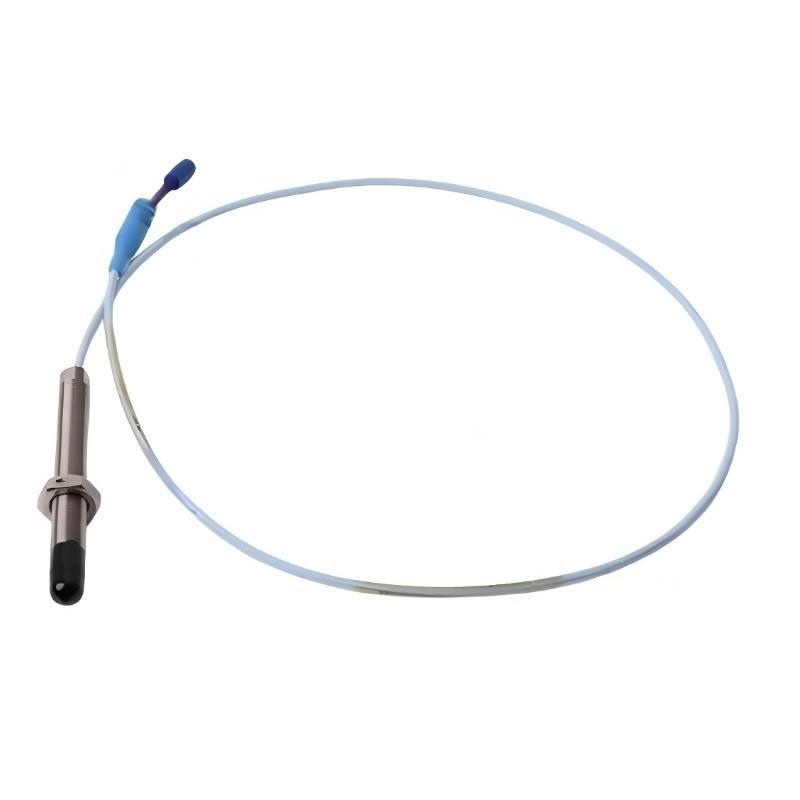

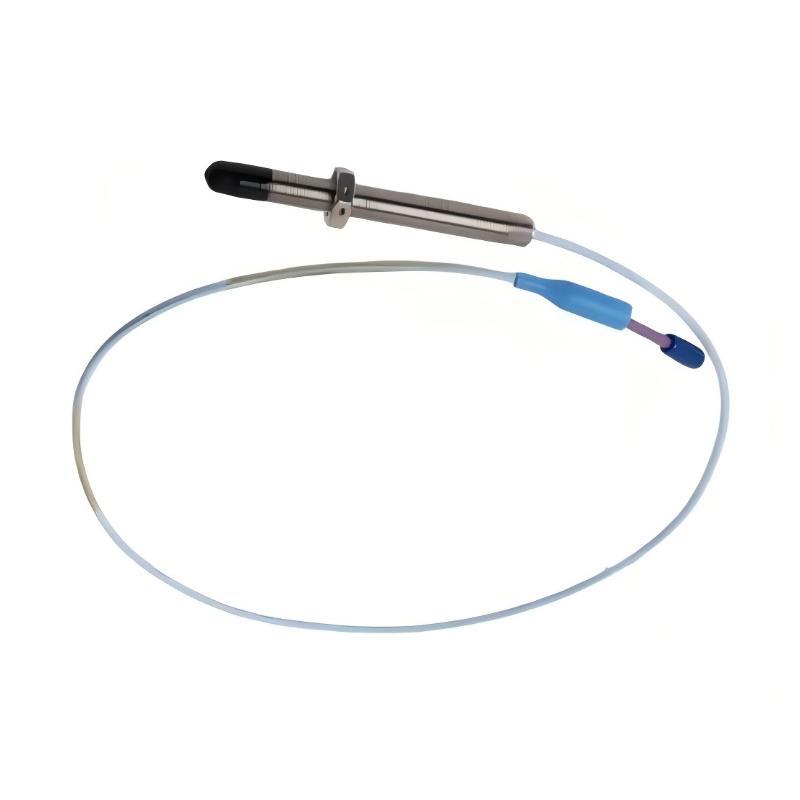

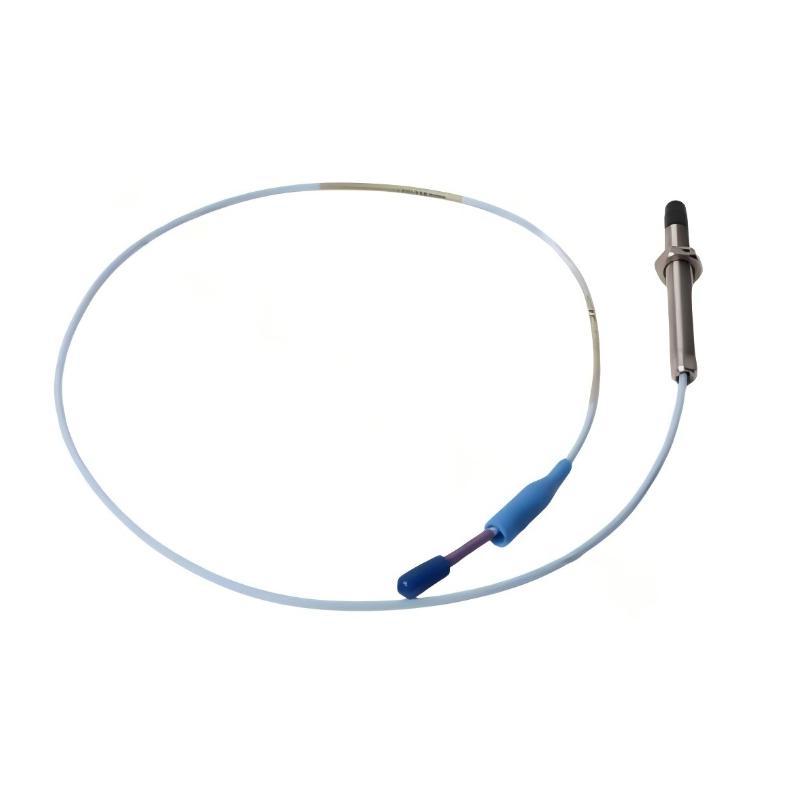

1. What is the main function of the Bently Nevada 330701-00-40-10-11-05 Eddy Current Probe?

This probe is designed for non-contact measurement of shaft vibration, displacement, and position in rotating machinery. It continuously monitors the distance between the probe tip and a conductive target surface such as a rotating shaft, converting micro-scale mechanical movement into electrical signals.

In industrial machinery protection systems, it is widely used for real-time condition monitoring of turbines, compressors, pumps, and motors. It provides early detection of mechanical issues such as imbalance, misalignment, shaft bow, or bearing wear, helping prevent catastrophic equipment failure.

2. How does the eddy current measurement principle work in this probe?

The probe generates a high-frequency electromagnetic field at its tip. When a conductive target enters this field, it induces eddy currents on the surface of the metal. These currents create an opposing magnetic field that changes the impedance of the probe coil.

The system measures this impedance change and converts it into a proportional voltage signal. This signal corresponds directly to the gap between the probe and the target surface, allowing extremely precise displacement and vibration measurement without physical contact.

3. What types of machinery typically use this probe?

This probe is commonly used in critical rotating machinery where continuous condition monitoring is essential. Typical applications include steam turbines, gas turbines, centrifugal compressors, pumps, gearboxes, and large electric motors.

These machines operate under high speed and high load conditions, where even small shaft deviations can indicate early-stage mechanical degradation. The probe provides real-time data that supports predictive maintenance and machinery protection strategies.

4. Why is non-contact measurement important in this application?

Non-contact measurement eliminates mechanical wear and avoids interference with high-speed rotating components. Since there is no physical contact with the shaft, the probe does not introduce friction, heat, or degradation over time.

This approach ensures long-term measurement stability, high reliability, and continuous operation in harsh industrial environments where equipment runs 24/7. It is especially important for mission-critical assets where downtime is extremely costly.

5. How does this probe integrate into the 3300 XL system?

The probe is part of the Bently Nevada 3300 XL proximity measurement chain, which includes the probe, extension cable, and proximitor (signal conditioning module). The probe captures displacement signals and transmits them through the cable to the proximitor.

The proximitor converts raw signals into calibrated outputs used by monitoring systems for vibration analysis and machinery protection. This modular structure ensures accurate signal transmission and system flexibility.

6. What role does this probe play in predictive maintenance?

The probe provides continuous real-time monitoring of shaft behavior, allowing maintenance teams to identify abnormal trends before failures occur. Changes in vibration patterns or shaft position can indicate developing faults such as imbalance, lubrication issues, or mechanical wear.

By analyzing long-term trend data, operators can schedule maintenance proactively, reducing unexpected downtime and improving overall equipment reliability.

7. What factors can affect measurement accuracy?

Measurement accuracy can be influenced by probe installation gap, shaft material properties, surface condition, and electromagnetic interference. Proper calibration and correct installation distance are critical for ensuring linear response and reliable output.

Electrical noise, poor grounding, or incorrect mounting can also degrade signal quality. Therefore, proper shielding and system setup are essential for maintaining precision in industrial environments.

8. Why is the 3300 XL series widely used in industry?

The 3300 XL series is widely adopted because of its high accuracy, long-term stability, and proven reliability in critical machinery protection systems. It performs consistently in harsh environments such as high temperature, vibration, and electrical noise conditions.

Its compatibility with standardized monitoring architectures and its modular design make it easy to integrate into different industrial systems. This makes it a trusted solution for power generation, oil and gas, and heavy industry applications.
