FAQ

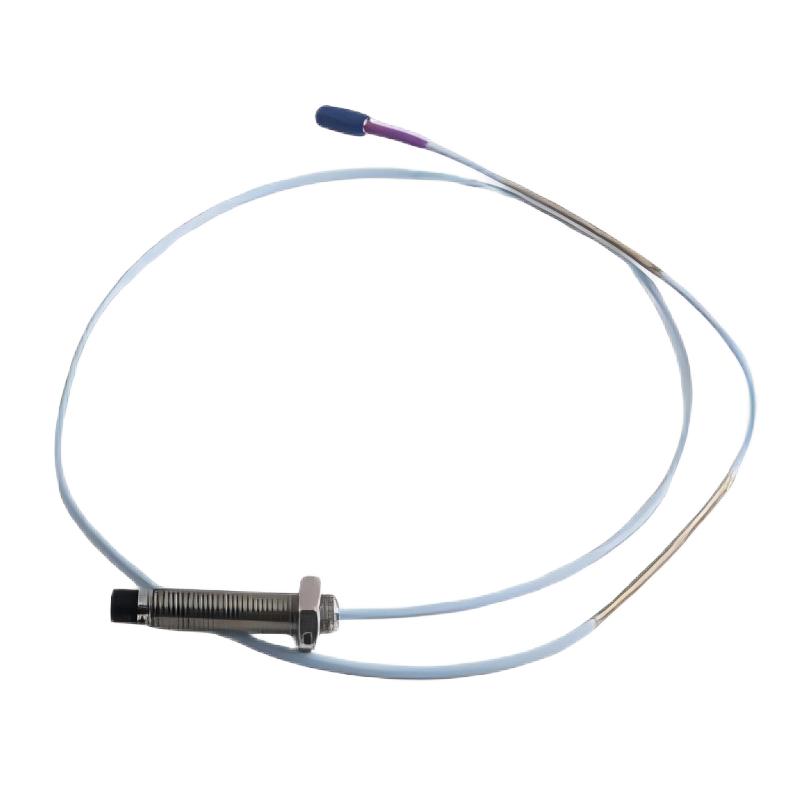

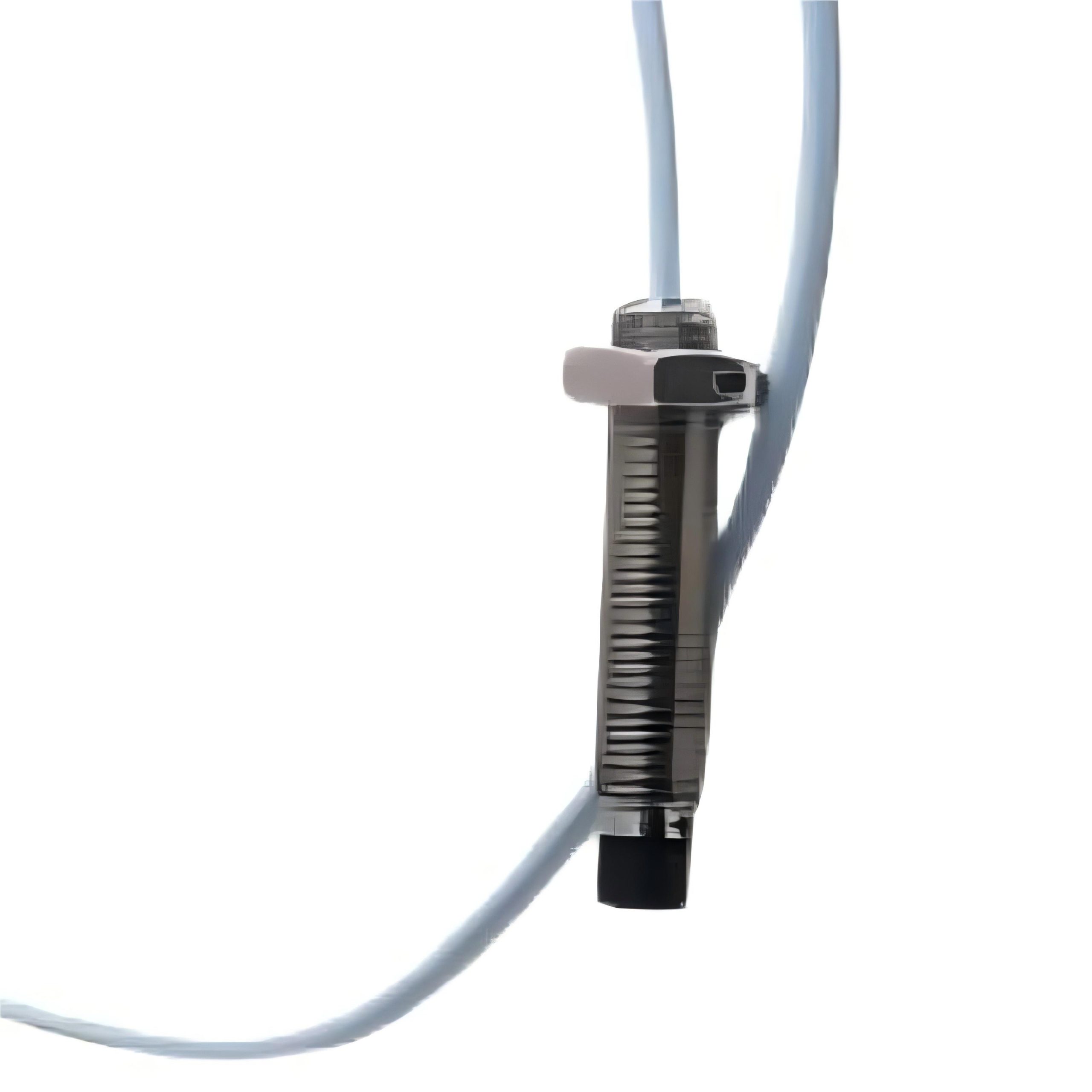

1. What is the main function of the 330703-00-06-10-02-05 proximity probe?
This probe is designed for continuous, high-precision monitoring of shaft vibration, radial displacement, and axial position in rotating machinery. It detects extremely small changes in the gap between the probe tip and a conductive metal shaft surface and converts them into electrical signals. These signals represent real-time rotor behavior and are used in machinery protection systems to identify early signs of mechanical issues such as imbalance, misalignment, shaft bow, or bearing wear. This allows operators to take corrective action before serious damage or downtime occurs.

2. How does the eddy current measurement principle work in practical operation?
The probe generates a high-frequency electromagnetic field at its sensing tip. When a conductive shaft enters this field, eddy currents are induced on the shaft surface. These currents create an opposing magnetic field that changes the impedance of the probe coil. The system measures this impedance variation and converts it into a proportional voltage output. This voltage directly corresponds to the distance between the probe and the shaft, enabling precise, real-time measurement of vibration and displacement without any physical contact, even under high-speed operating conditions.

3. What types of machinery typically use this probe?
This probe is widely used in mission-critical rotating machinery such as steam turbines, gas turbines, centrifugal compressors, industrial pumps, gearboxes, and large electric motors. These machines often operate under continuous load and high rotational speeds, where even very small changes in shaft position or vibration can indicate early-stage mechanical degradation. Continuous monitoring is essential in these environments to ensure operational safety, prevent catastrophic failures, and reduce unplanned downtime.

4. Why is non-contact measurement essential in this application?
Non-contact measurement is essential because it eliminates physical interaction between the sensor and the rotating shaft. In high-speed machinery environments, any physical contact would introduce wear, friction, and heat generation, which would degrade both the sensor and the equipment over time. By using electromagnetic sensing instead, the probe maintains stable performance over long operating periods without mechanical degradation. It also ensures consistent accuracy in harsh industrial environments involving vibration, temperature fluctuations, and contamination.

5. How does this probe integrate into the 3300 XL system architecture?
The probe is part of a complete measurement chain consisting of the probe, extension cable, and proximitor signal conditioning module. The probe detects shaft movement and generates a raw analog signal proportional to displacement. This signal is transmitted through the cable to the proximitor, which conditions, linearizes, and calibrates it into a standardized output used by monitoring and protection systems. This modular architecture ensures high signal integrity, flexible installation options, and reliable system-level performance across industrial applications.

6. What role does this probe play in predictive maintenance strategies?
In predictive maintenance systems, this probe provides continuous real-time monitoring of shaft vibration and displacement trends. By analyzing long-term data patterns, engineers can detect early signs of mechanical degradation such as imbalance, misalignment, lubrication issues, or bearing wear. Instead of relying on fixed maintenance schedules, maintenance decisions are based on actual machine condition. This approach significantly reduces unexpected downtime, improves operational efficiency, and extends the lifespan of critical rotating equipment.

7. What factors can affect measurement accuracy and long-term stability?
Several factors can influence measurement performance, including installation gap, shaft material properties, surface condition, and electromagnetic interference. If the probe is installed outside its calibrated operating range, signal linearity may degrade or become unstable. Electrical noise, poor grounding, or insufficient shielding can also introduce signal drift or distortion over time. Proper installation practices, accurate calibration, and robust electromagnetic protection are therefore essential to ensure stable, repeatable, and long-term reliable measurements in demanding industrial environments.

8. Why is the 3300 XL series widely adopted in industrial monitoring systems?
The 3300 XL series is widely used because it provides high measurement accuracy, long-term stability, and proven reliability in harsh industrial environments. It performs consistently under conditions such as high temperature, strong vibration, and electromagnetic interference, which are common in power generation, oil and gas, and heavy industry sectors. Its modular architecture and standardized system design make integration straightforward across different platforms, making it a trusted solution for protecting critical rotating machinery and supporting advanced predictive maintenance programs.
