Q1: What is the main function of the Bently Nevada 330703 proximity probe?

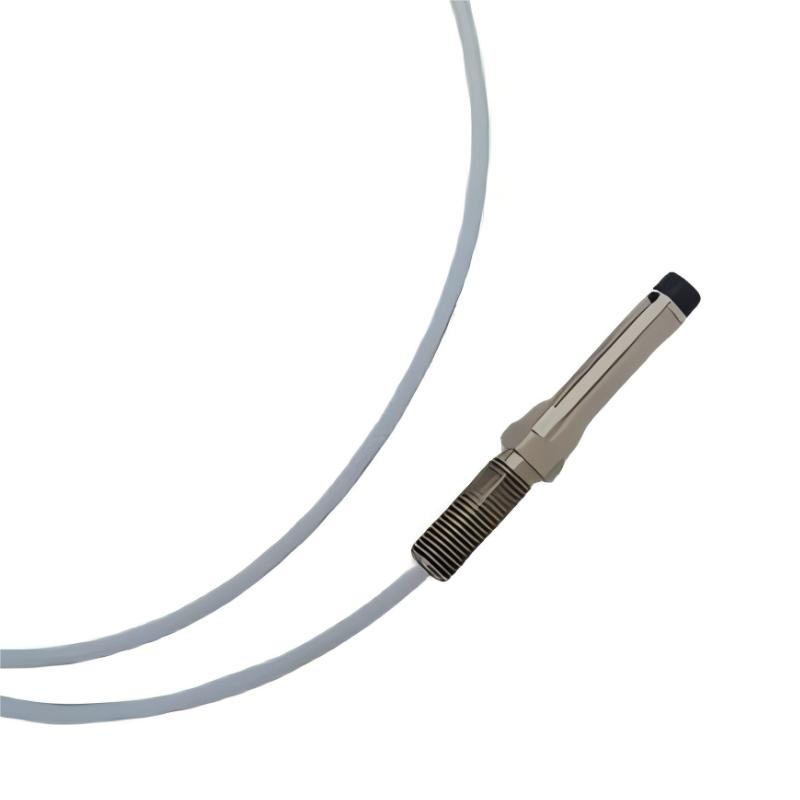

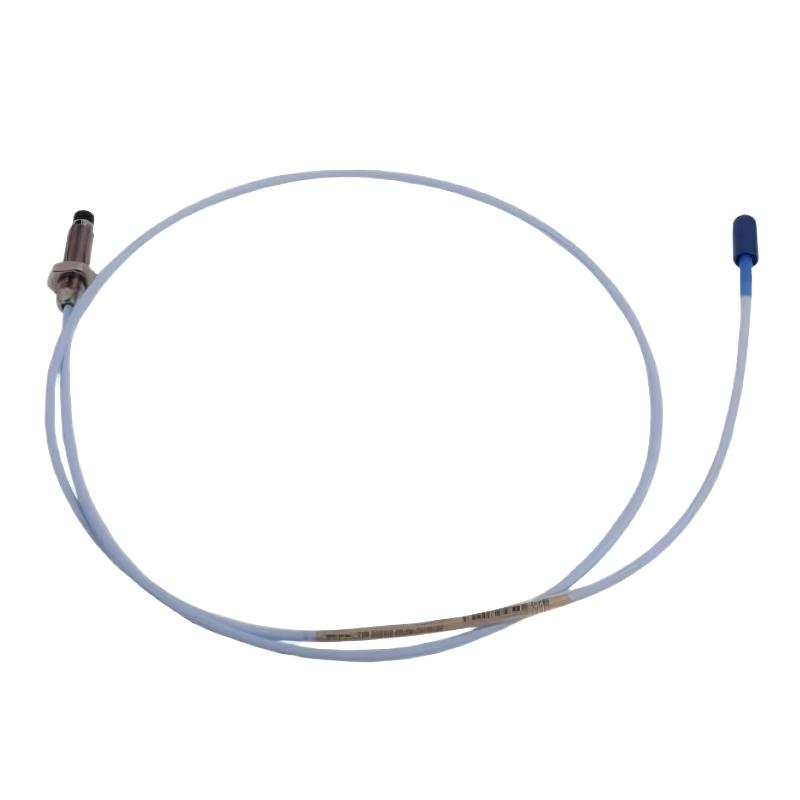

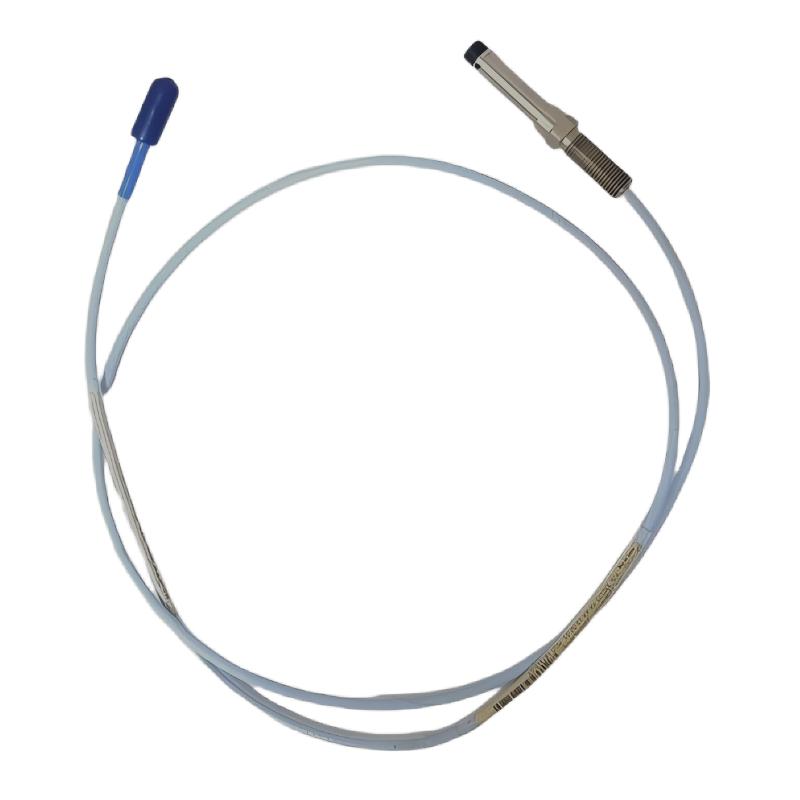

The 330703 proximity probe is a high-precision eddy current sensor used for continuous, non-contact measurement of shaft vibration, radial displacement, and shaft position in rotating machinery. It operates by generating a high-frequency electromagnetic field at the probe tip. When this field interacts with a conductive metallic shaft, eddy currents are induced on the shaft surface. Any change in the distance between the probe and the shaft alters the eddy current response, which is converted into a proportional electrical signal. This mechanism allows the system to capture extremely small shaft movements in real time, making it essential for machinery protection systems. Unlike casing-mounted vibration sensors, this probe directly measures shaft dynamics, providing more accurate insight into rotor behavior under real operating conditions.

Q2: Where is this probe typically used in industrial environments?

This probe is commonly installed in critical rotating equipment such as steam turbines, gas turbines, centrifugal compressors, large industrial pumps, and high-power electric motors. These machines operate under demanding mechanical and thermal conditions where even minor deviations in shaft position can indicate early-stage faults. The probe enables continuous monitoring of key mechanical parameters, helping detect issues such as rotor imbalance, misalignment, bearing degradation, oil film instability, and mechanical looseness. It is widely used in power generation plants, oil and gas facilities, petrochemical refineries, and heavy industrial production lines where equipment reliability is essential for safety and operational continuity.

Q3: How does this probe function within the 3300 XL system architecture?

The probe is part of a three-component measurement system consisting of the probe, an extension cable, and a proximitor (signal conditioning module). The probe generates the raw eddy current response from the shaft surface. This signal is transmitted through a shielded cable to the proximitor, which provides excitation energy and converts the raw response into a calibrated linear voltage output proportional to shaft displacement. The system is factory-matched to ensure that all components work together with consistent sensitivity and linearity. Any mismatch or substitution of components can introduce calibration errors, signal drift, or reduced measurement accuracy, which can directly affect machinery protection performance.

Q4: What are the most critical installation requirements for this probe?

Proper installation is essential to ensure accurate and stable operation. The most critical factor is maintaining a precisely controlled gap between the probe tip and the shaft surface, as this gap defines the measurement range and linear response region. The mounting structure must be mechanically rigid to prevent vibration-induced movement or thermal expansion effects. Cable routing should avoid sources of electromagnetic interference such as variable frequency drives, high-voltage power lines, and switching equipment. Proper grounding and shielding practices are required to maintain signal integrity. Additionally, mechanical stress on the cable—such as bending, tension, or compression—must be avoided to prevent long-term degradation of shielding performance and signal stability.

Q5: What are common causes of unstable or incorrect readings?

Unstable or incorrect readings can result from a combination of mechanical, electrical, and environmental issues. Common mechanical causes include incorrect probe gap setup, loose mounting hardware, shaft surface contamination, or oil film instability. Electrical causes may include damaged cable shielding, corroded connectors, or malfunctioning proximitor units. Environmental electromagnetic interference from nearby electrical systems or VFDs can also introduce noise into the signal chain. Because the system is highly sensitive, even small deviations in installation or operating conditions can significantly affect output stability. Therefore, troubleshooting must consider the entire measurement chain rather than focusing on a single component.

Q6: Is this probe suitable for harsh industrial environments?

Yes, this probe is specifically engineered for harsh industrial environments. It is designed to operate reliably in conditions involving high vibration, temperature fluctuations, oil mist, and strong electromagnetic interference. The stainless steel probe body provides mechanical strength and corrosion resistance, while the fully shielded cable construction ensures stable signal transmission even in electrically noisy environments. However, in extremely aggressive conditions such as highly corrosive atmospheres, extreme thermal zones, or chemically active environments, additional protection or specialized probe variants may be required to maintain long-term measurement stability and accuracy.

Q7: How can technicians identify probe degradation or failure?

Probe degradation typically occurs gradually and is often detected through changes in signal behavior. Common indicators include increased signal noise, baseline drift, reduced sensitivity, inconsistent vibration readings, or frequent alarms triggered by the monitoring system. Technicians often perform validation checks using calibrated reference targets or compare readings with adjacent measurement points on similar machinery. If the probe fails to respond consistently to controlled changes in shaft position or shows nonlinear behavior under stable operating conditions, it is likely experiencing degradation. In such cases, inspection of the entire measurement chain is recommended before confirming replacement.

Q8: What role does this probe play in predictive maintenance systems?

In predictive maintenance systems, this probe serves as a primary data acquisition device that continuously monitors shaft vibration and displacement trends over time. The data collected provides insight into the evolving mechanical condition of rotating equipment. By analyzing long-term trends rather than isolated measurements, maintenance teams can detect early signs of issues such as imbalance, misalignment, bearing wear, or rotor instability. This enables a shift from reactive maintenance to condition-based maintenance strategies, reducing unplanned downtime, improving asset reliability, and optimizing maintenance planning across industrial operations.
