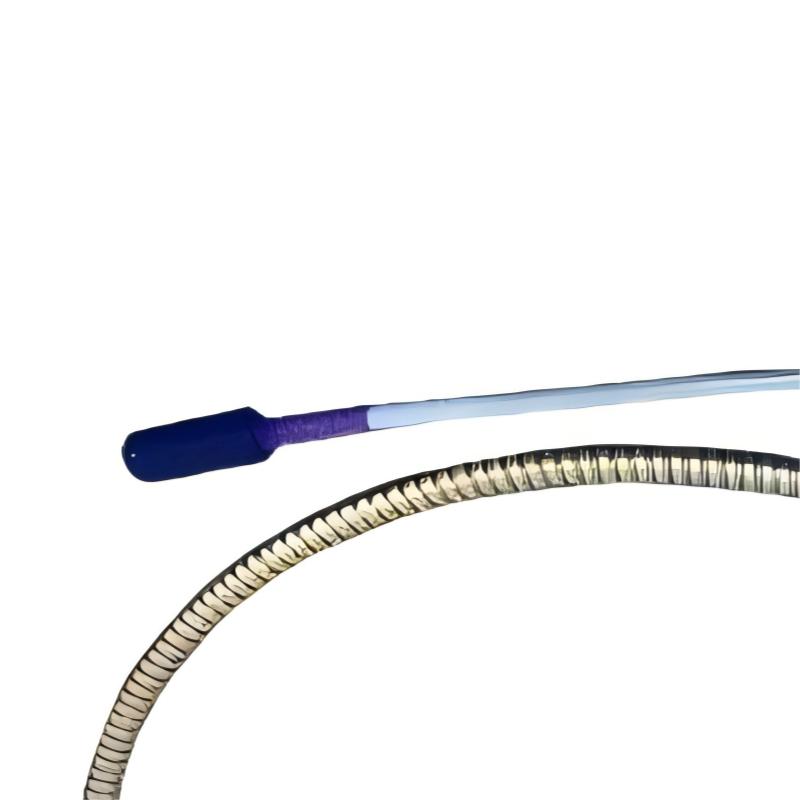

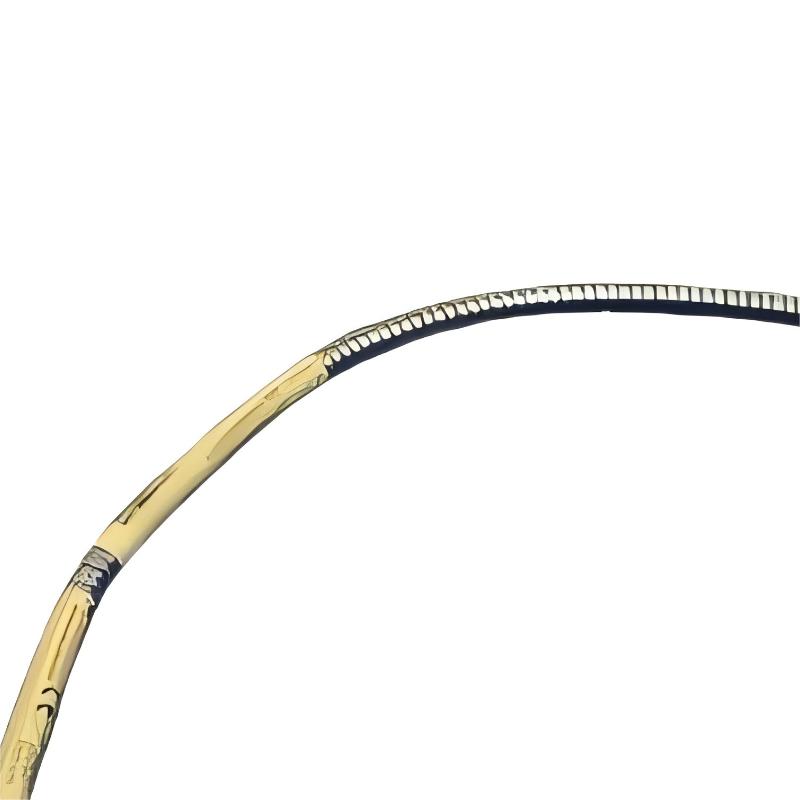

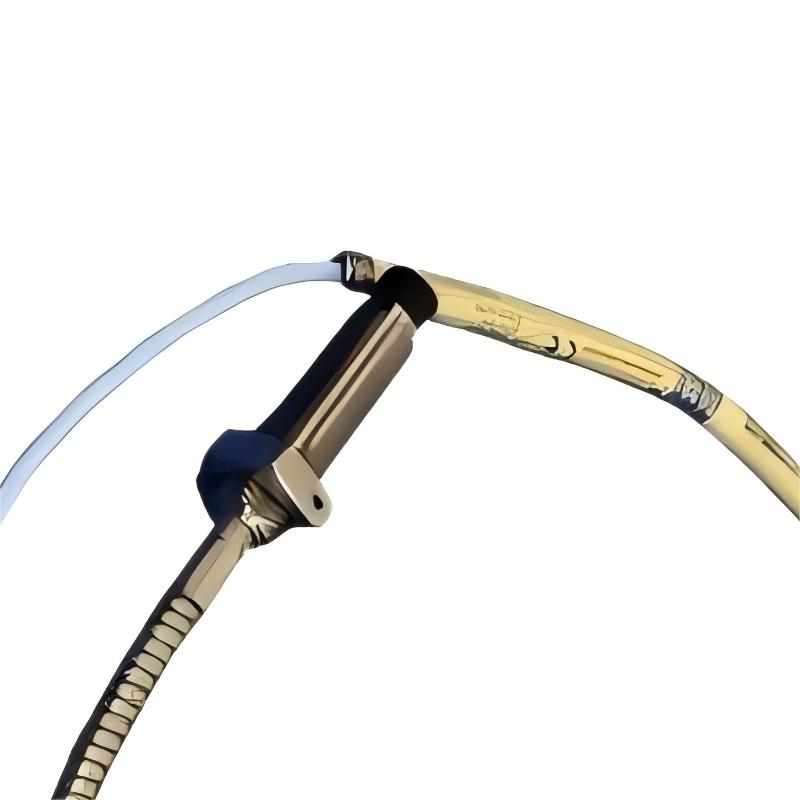

Q1: What is the primary function of the 3300 XL 11 mm proximity probe?

The 3300 XL 11 mm proximity probe is designed for continuous monitoring of rotating machinery shaft dynamics, including vibration, displacement, and axial position. It operates using eddy current technology, where a high-frequency electromagnetic field is generated at the probe tip. When a conductive shaft enters this field, eddy currents are induced on its surface, which alter the electrical impedance of the probe system. These changes are converted into precise displacement signals by the monitoring system. This allows real-time, non-contact measurement of shaft motion, which is essential for machinery protection and predictive maintenance applications in critical industrial environments.

Q2: What are the advantages of eddy current measurement technology in industrial applications?

Eddy current technology offers several key advantages that make it ideal for rotating machinery monitoring. It is a non-contact measurement method, meaning there is no physical interaction between the probe and the shaft, eliminating mechanical wear and ensuring long-term stability. It also provides high sensitivity, capable of detecting very small shaft movements with excellent resolution. Additionally, it has a fast response time, allowing it to capture transient vibration events effectively. The technology is highly robust and performs reliably in harsh industrial conditions such as high temperature, oil contamination, and heavy vibration environments, making it widely used in power generation, petrochemical, and heavy industry sectors.

Q3: What types of machinery are typically monitored using this probe?

This probe is commonly used on high-value rotating equipment where continuous condition monitoring is critical. Typical applications include steam turbines, gas turbines, centrifugal compressors, large electric motors, industrial pumps, and ventilation fans. These machines operate under high speed and high load conditions, where even small deviations in shaft behavior can indicate early-stage mechanical problems. The probe provides continuous data that helps detect issues such as rotor imbalance, misalignment, bearing wear, shaft bow, and lubrication problems, enabling early intervention before severe damage occurs.

Q4: What are the key installation requirements for reliable performance?

Proper installation is essential for accurate and stable measurement. The most critical requirement is maintaining the correct probe-to-shaft gap, as it directly affects signal linearity and calibration accuracy. The probe must be rigidly mounted to avoid vibration-induced measurement drift. Cable routing must preserve full shielding integrity and avoid proximity to high-voltage power lines or strong electromagnetic interference sources. The probe should also be installed perpendicular to the shaft surface to ensure optimal sensitivity. Any deviation in installation geometry or grounding quality can significantly impact signal stability and measurement accuracy.

Q5: What are common causes of unstable or inaccurate signals?

Signal instability can result from multiple factors. Incorrect probe gap setup is one of the most common causes, leading to nonlinear or offset readings. Cable-related issues such as loose connections, damaged insulation, or compromised shielding can introduce noise or signal loss. Electromagnetic interference from nearby electrical equipment can also distort measurements. Mechanical issues such as probe misalignment or changes in shaft surface condition (e.g., wear, corrosion, or deposits) can further degrade accuracy. On the electronics side, faults in the Proximitor signal conditioning module or incorrect calibration parameters may also cause abnormal outputs, requiring systematic troubleshooting.

Q6: How does this probe contribute to machinery protection systems?

The probe plays a critical role in machinery protection by continuously monitoring shaft dynamic behavior. Changes in vibration amplitude, orbit shape, or displacement trends often indicate early-stage mechanical issues such as imbalance, misalignment, bearing degradation, or lubrication failure. These patterns are analyzed by protection systems, which can trigger alarms or automatic shutdowns when predefined thresholds are exceeded. This early warning capability helps prevent catastrophic equipment failures, reduces unplanned downtime, and improves overall operational safety. It also supports condition-based maintenance strategies, allowing maintenance activities to be planned based on actual equipment condition rather than fixed schedules.

Q7: Is the 3300 XL proximity probe suitable for continuous operation?

Yes, the probe is specifically engineered for continuous industrial operation in demanding environments. Its non-contact measurement principle eliminates mechanical wear, enabling stable long-term performance. It is designed to withstand harsh conditions such as vibration, temperature fluctuations, oil mist, and industrial contamination. When properly installed and maintained, it can operate reliably in 24/7 monitoring systems without performance degradation. Ensuring correct installation geometry, proper grounding, and high-quality cable shielding significantly enhances long-term measurement stability and system reliability.

Q8: What should be checked after replacing or servicing the probe?

After replacement or servicing, a complete system verification process is required to ensure measurement integrity. This includes confirming correct probe gap calibration, verifying signal linearity across the full operating range, and checking overall signal stability. Cable continuity and shielding integrity must be inspected to eliminate potential noise sources. During machine startup, vibration and displacement trends should be compared against historical baseline data to ensure consistency. Any deviation should be investigated before returning the system to normal operation. Only after stable readings and absence of alarms are confirmed should the system be fully released for production use.
