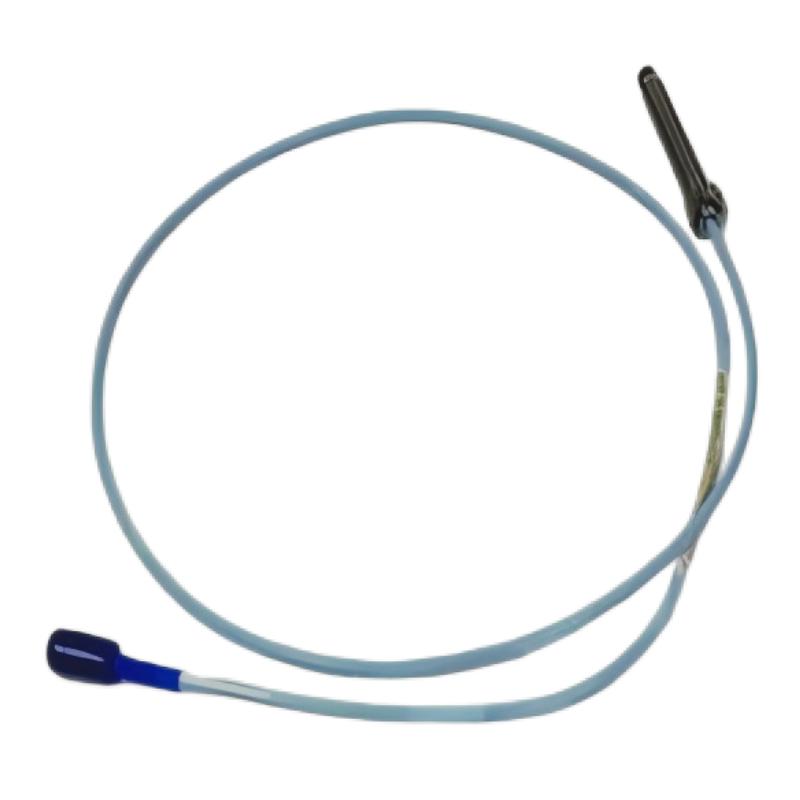

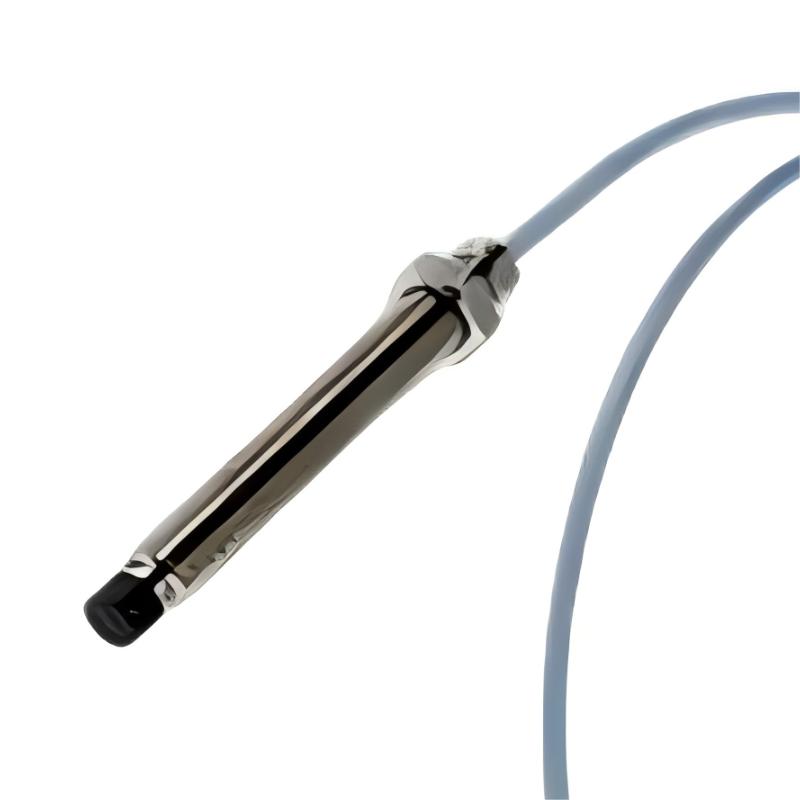

Q1: What is the primary function of the 3300 XL 11 mm proximity probe?

The primary function of the 3300 XL 11 mm proximity probe is to continuously measure the dynamic motion of rotating shafts, including vibration, displacement, and axial position. It is a key sensing element in machinery protection systems. The probe works by generating a high-frequency electromagnetic field at its tip. When a conductive shaft enters this field, eddy currents are induced on the shaft surface, which change the electrical impedance of the probe coil. These changes are converted into precise displacement signals by the monitoring system. This allows real-time, non-contact measurement of shaft behavior, which is essential for detecting early-stage mechanical issues in critical rotating equipment.

Q2: Why is eddy current technology widely used in industrial monitoring applications?

Eddy current technology is widely used because it provides a combination of non-contact operation, high sensitivity, and strong environmental robustness. Since the probe does not physically touch the shaft, there is no mechanical wear, which ensures long-term measurement stability. It can detect extremely small changes in shaft position and vibration with high resolution. In addition, it performs reliably in harsh industrial environments such as high temperature, oil mist, dust, and strong vibration conditions. This makes it especially suitable for power generation, petrochemical plants, and heavy industrial machinery where continuous reliability is critical.

Q3: What types of equipment typically use this probe?

This probe is typically installed on high-value rotating machinery where continuous condition monitoring is required. Common applications include steam turbines, gas turbines, centrifugal compressors, large electric motors, industrial pumps, and ventilation fans. These machines operate under high rotational speeds and heavy mechanical loads. Even minor deviations in shaft movement can indicate developing faults. The probe provides continuous data that helps identify early signs of imbalance, misalignment, bearing wear, shaft bow, or lubrication problems, enabling timely maintenance before serious damage occurs.

Q4: What are the key installation requirements for stable operation?

Proper installation is critical for achieving accurate and stable measurements. The probe must be installed with a correctly calibrated gap between the probe tip and the shaft surface, since this directly affects signal linearity. It must be rigidly mounted to prevent vibration-induced movement or drift. The coaxial cable must maintain full shielding integrity to minimize electromagnetic interference. It is also important to ensure correct grounding practices and to avoid routing the cable near high-voltage or high-noise electrical equipment. Additionally, the probe must be aligned perpendicular to the shaft surface to ensure optimal signal coupling and measurement accuracy.

Q5: What are common causes of unstable or incorrect signals?

Signal instability can result from a combination of mechanical, electrical, and environmental factors. One of the most common causes is incorrect probe gap adjustment, which leads to nonlinear or offset readings. Cable issues such as loose connectors, damaged insulation, or compromised shielding can introduce noise or intermittent signal loss. Electromagnetic interference from nearby electrical systems may also distort the signal. On the mechanical side, probe misalignment or changes in shaft surface conditions such as wear, corrosion, or contamination can affect accuracy. Additionally, faults in the signal conditioning module or incorrect calibration parameters can lead to abnormal outputs, requiring a systematic diagnostic approach.

Q6: How does this probe contribute to machinery protection systems?

The probe plays a critical role in machinery protection by continuously monitoring shaft dynamic behavior and providing early detection of abnormal conditions. Changes in vibration amplitude, orbit pattern, or displacement trends often indicate developing mechanical issues such as rotor imbalance, misalignment, bearing degradation, or lubrication failure. These signals are analyzed by protection systems, which can trigger alarms or automatic shutdowns when predefined thresholds are exceeded. This early warning capability significantly reduces the risk of catastrophic failures, improves operational safety, and minimizes unplanned downtime. It also supports condition-based maintenance strategies, allowing maintenance to be scheduled based on actual equipment condition rather than fixed intervals.

Q7: Is the 3300 XL proximity probe suitable for continuous industrial operation?

Yes, the probe is specifically engineered for continuous operation in demanding industrial environments. Its non-contact measurement principle eliminates mechanical wear, allowing stable long-term performance. It is designed to withstand harsh operating conditions such as vibration, temperature fluctuations, oil contamination, and industrial environmental stress. When properly installed and maintained, it can operate reliably in 24/7 monitoring systems without degradation in performance. Ensuring correct installation geometry, proper grounding, and high-quality cable shielding significantly enhances long-term stability and measurement accuracy.

Q8: What should be checked after installation or replacement?

After installation or replacement, a complete system verification process is required to ensure measurement integrity and reliability. This includes verifying correct probe gap calibration, checking signal linearity across the full operating range, and confirming stable output under both static and dynamic conditions. Cable continuity and shielding integrity must also be inspected to eliminate potential noise sources. During startup, vibration and displacement readings should be compared against historical baseline data to ensure consistency with previous operating behavior. Any deviation from expected trends should be investigated before the system is returned to full operation. Only after stable performance and absence of alarm conditions are confirmed should the equipment be released for continuous service.
