Technical Specifications

FAQ

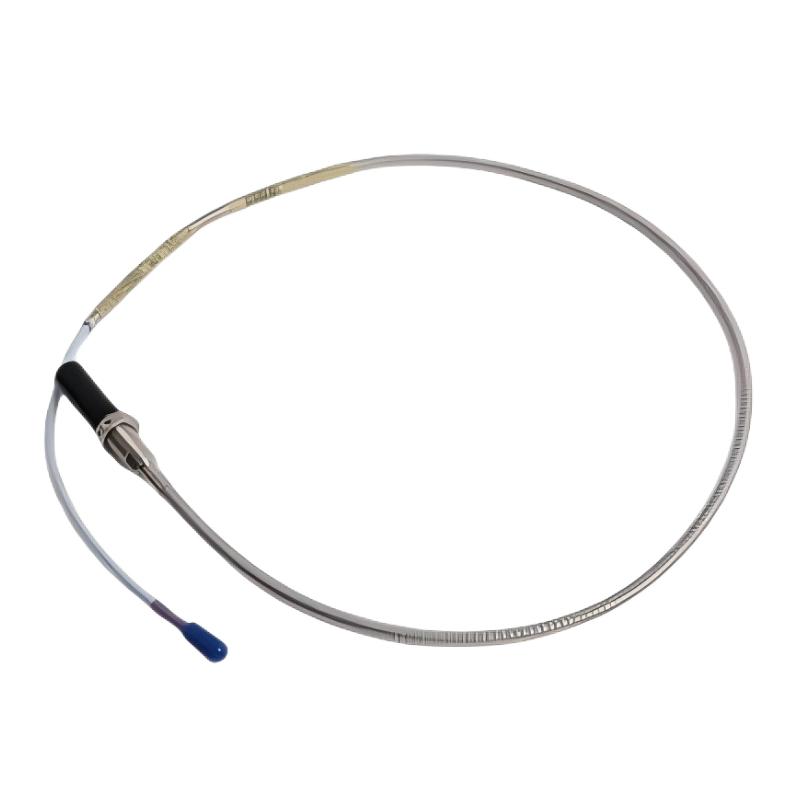

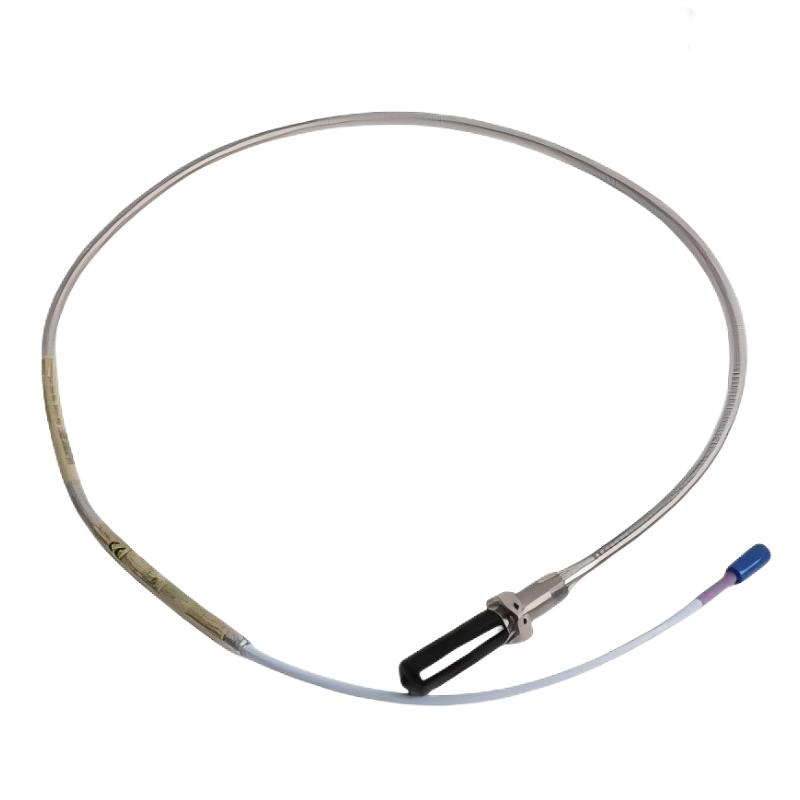

Q1: What is the main function of this 3300 XL proximity probe?
A: This probe is designed to measure the distance between the probe tip and a rotating conductive shaft using eddy current technology. The signal generated reflects shaft displacement, vibration, and dynamic motion in real time. In turbomachinery such as steam turbines, compressors, and pumps, this measurement is critical for detecting early mechanical issues like imbalance, misalignment, shaft rub, or bearing degradation. It provides continuous condition monitoring data that supports machinery protection systems and predictive maintenance strategies.

Q2: How does the eddy current sensing principle work in this probe?
A: The probe generates a high-frequency electromagnetic field at its sensing tip. When a conductive metal surface (such as a shaft) approaches this field, eddy currents are induced on the surface of the metal. These eddy currents change the impedance of the probe coil, and this change is converted into a voltage signal proportional to the gap distance. Because there is no physical contact, the system can measure very small displacements with high precision even under high-speed and high-temperature operating conditions.

Q3: What types of equipment typically use this probe?
A: This probe is widely used in critical rotating machinery where continuous monitoring is required. Common applications include steam turbines, gas turbines, centrifugal compressors, large industrial pumps, generators, and other high-speed rotating equipment. These machines are often found in power generation, petrochemical, and heavy industrial plants, where early detection of mechanical abnormalities is essential to avoid costly downtime or catastrophic failures.

Q4: Why is correct installation important for measurement accuracy?
A: Proper installation ensures that the probe operates within its linear measurement range relative to the shaft surface. Incorrect positioning can lead to distorted signals, reduced sensitivity, or inaccurate readings. The probe must also be rigidly mounted to avoid vibration-induced errors. Additionally, maintaining correct alignment with the rotating shaft ensures stable long-term performance and reduces the risk of false alarms or missed fault conditions.

Q5: What role does the proximitor module play in the system?
A: The probe alone only generates a raw electrical signal based on distance changes. The proximitor module supplies excitation power, processes the raw signal, and converts it into usable engineering units such as displacement or vibration amplitude. Without this module, the probe cannot function as a complete measurement system. Together, they form a calibrated monitoring solution that ensures accurate and stable machinery condition data.

Q6: What kinds of faults can this probe help detect?
A: This probe can detect a wide range of mechanical issues including rotor imbalance, shaft misalignment, bearing wear, shaft bowing, mechanical looseness, and rubbing between rotating and stationary components. Because it provides continuous real-time measurement, it enables early detection of abnormal trends, allowing maintenance teams to intervene before severe damage occurs. This significantly improves equipment reliability and reduces unplanned downtime.

Q7: How does temperature affect probe performance?
A: Temperature variations can influence both the probe electronics and the mechanical structure of the installation. High temperatures may affect signal stability or cable resistance over long distances. In addition, thermal expansion of machine components can slightly alter the probe-to-shaft gap. Proper system design, installation practices, and environmental control help ensure stable performance across varying operating conditions in industrial environments.

Q8: What maintenance is required for long-term reliability?
A: Maintenance requirements are minimal but important. Regular inspection should ensure the probe remains securely mounted and correctly aligned with the shaft. Cable integrity should also be checked to avoid insulation damage or signal degradation. During scheduled shutdowns, calibration verification may be performed using known reference conditions. Keeping the installation clean and mechanically stable helps maintain long-term accuracy and reliable monitoring performance.
